Артикул
Название
Примечание
Количество

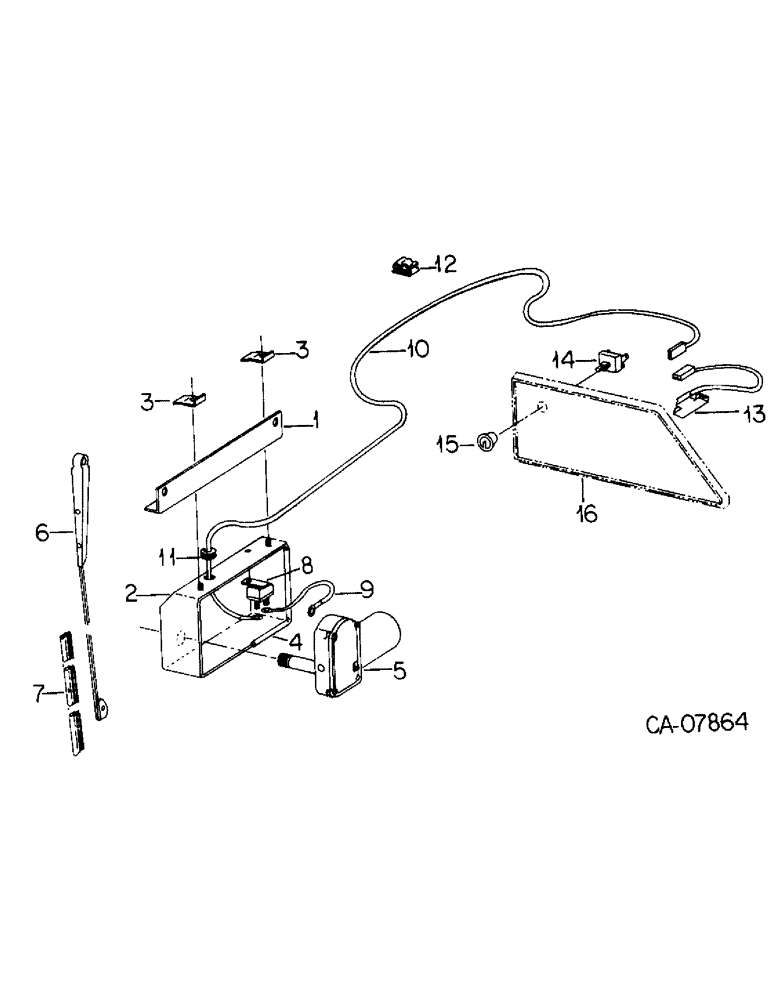

1250480C91
KIT
PARTS accessory, rear window wiper, Consists of Ref. 1 - 15 and instructions
1шт.
1
1250474C1
SUPPORT
wiper cover
1шт.
2
1250470C1
COVER
ASSY wiper motor
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
3
1255751C1
CLAMP
CLIP stiffener
2шт.
4
1250475C1
GASKET
GASKET wiper motor
1шт.
5
391195R92
WIPER MOTOR
MOTOR ASSY wiper, Refer to rear window wiper motor, group 8 for list of components
1шт.
188978
SCREW,Hex, #10 - 24 x 3/8"
No. 10 x 3/8 znp h/hd mach
1шт.
178378
LOCK WASHER,Ext-Int Tooth, #10
WASHER lock, external-internal tooth, No. 10
1шт.
6
404242R1
ARM
wiper
1шт.
7
346909C1
WIPER
BLADE wiper, 16 in
1шт.
8
1250481C1
BREAKER
circuit, 5 amp
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
120614
NUT,Hex, #10 - 32
NUT, #10-32
2шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
2шт.
9
1250482C1
CABLE
ASSY circ. brk. to wiper motor
1шт.
10
1250483C1
CABLE
ASSY switch to circ. breaker
1шт.
11
117957
GROMMET,1/4" ID x 5/8" x .062"
rubber, 1/4 x 5/8 x 5/16 n/c
1шт.
12
1255752C1
CLAMP
CLIP cable
4шт.
13
1250484C1
CABLE
ASSY, Serial Range: power-switch
1шт.
14
1250485C1
SWITCH
rear wiper
1шт.
109311H
JAM NUT
hex face, 7/16-28
1шт.
493-21046
LOCK WASHER,Int Tooth, 7/16"
WASHER lock, internal tooth, 7/16
1шт.
15
111282C1
KNOB
wiper control
1шт.
16
PANEL control trim, Refer to tractor cab wiring group 8
1шт.
Выбрано товаров: 29
