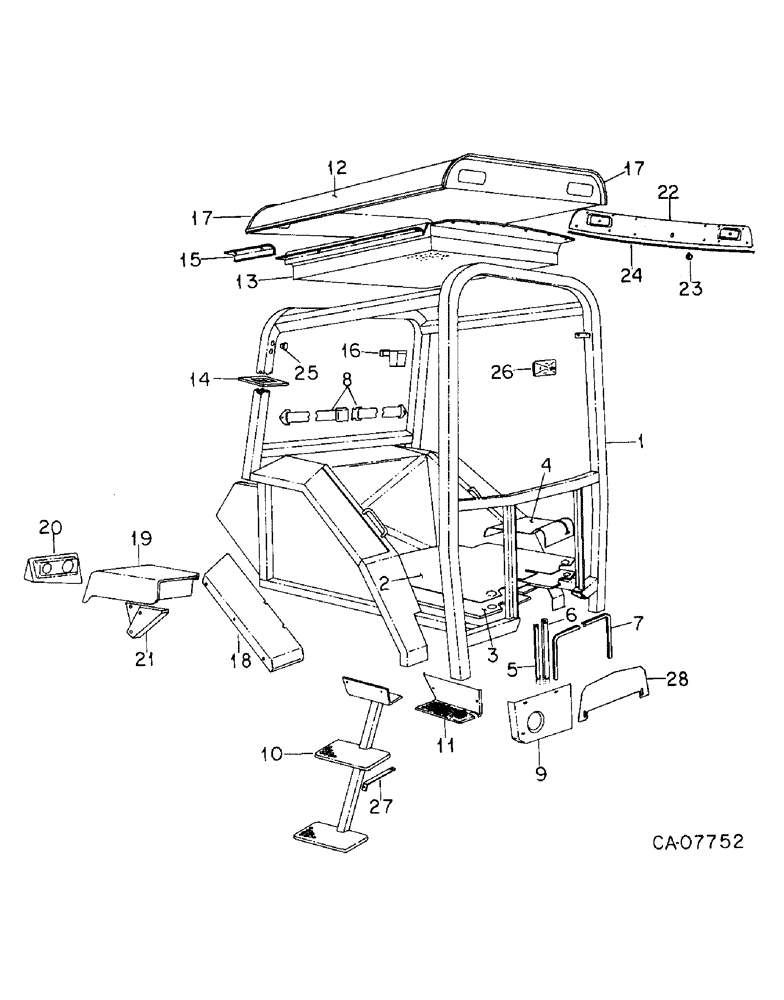

Запчасти Case IH 3488 (13-18) - SUPERSTRUCTURE, ROLL OVER PROTECTIVE STRUCTURE (05) - SUPERSTRUCTURE

1

1262081C92

FRAME

ASSY ROPS, w/ product graphic

1шт.

117675C1

PLUG

Hole, 0.5

12шт.

118148C2

SELF-TAP SCREW,Hex, #10 x 3/8"

SCREW

6шт.

115109

WASHER,1/4"

1/4"

6шт.

281343

BOLT, 5/16 x 3/4 pln weld

18шт.

353-417

PLUG,Dome, 2.000" hole, Nylon

2.0 hole

1шт.

143088C1

PLUG

9/16 hole

6шт.

2

1255890C2

MAT

floor

1шт.

3

1255882C1

CARPET

LINER floor mat

2шт.

4

1255883C2

MAT

console, left

1шт.

5

104754C1

CHANNEL

firewall seal

2шт.

6

104752C1

SEAL

, Serial Range: ROPS-firewall

2шт.

7

103998C2

SEAL

upper instrument housing

2шт.

8

537339R1

SAFETY BELT

SAFETY BELT

1шт.

344096C3

BOLT

BOLT seat belt anchor

2шт.

24513R1

NUT,7/16"-20, G8

7/16-NF type 8

2шт.

9

111616C1

SHROUD

left

1шт.

9

111617C1

SHROUD

right

1шт.

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

SCREW flange lock, hex-hd, 1/4-20 x 0.50

6шт.

10

1250440C4

STEP

LADDER ASSY left

1шт.

10

1250441C4

STEP

LADDER ASSY right

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

hex-hd lock, 3/8 x 1-1/4

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

flange lock, 3/8

4шт.

11

1250567C1

PANEL

inner step, left

1шт.

11

1250568C1

PANEL

inner step, right

1шт.

1276118C1

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/4"

SCREW, SELF TAPPING, , Polyseal Cross Pan Hd, #8 x 3/4"

8шт.

12

117997C1

TOP

ASSY canopy, ROPS

1шт.

179093

HOLE PLUG BUTTON,9/32"

PHC 9/32"

1шт.

118024C1

NUT

J-type spring

6шт.

13

118083C1

PANEL

ASSY headliner composite

1шт.

1270762C1

SELF-TAP SCREW

#10-16 x 3/4 polyseal p/hdcr tap

4шт.

118676

WASHER,0.22" ID x 0.5" OD x 0.05" Thk

0.219 x 0.500 x 0.036 phc

4шт.

14

118058C1

SEALING STRIP

corner post foam

4шт.

15

118066C1

ANGLE

hole trim, plate

2шт.

1250618C1

CAPTIVE WASHER SCREW,Pan HD, 1/4" - 20 x 3/4"

SCREW, w/ washer, 1/4-20 x 3/4

12шт.

1276119C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 5/8"

SCREW, No. 10-16 x 5/8 polyseal p/hdcr tap

11шт.

118676

WASHER,0.22" ID x 0.5" OD x 0.05" Thk

0.219 x 0.500 x 0.036 phc

11шт.

16

118025C1

CAP

front corner, left

1шт.

16

118026C1

CAP

front corner, right

1шт.

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

SCREW, No. 10-16 x 1/2 polyseal c/r s/d tap

4шт.

17

143294C1

SEALING STRIP

STRIP roof eyebrow

2шт.

18

111595C1

PANEL

filler, wheel well, left

1шт.

18

1255731C3

PANEL

filler, wheel well, right

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4 x 3/4 crg type 5

6шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

flange lock, 1/4

6шт.

19

109491C3

FENDER ASSY.

FENDER ASSY left

1шт.

19

109492C3

FENDER ASSY.

FENDER ASSY right

1шт.

118103C1

SEALING STRIP

SEAL fender

2шт.

20

111562C2

PANEL

rear lamp, left

1шт.

20

111563C2

PANEL

rear lamp, right

1шт.

143310C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 24 x 1/2"

SCREW, No. 10 x 1/2 polyseal hdcr tap

4шт.

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

SCREW, No. 10-16 x 1/2 polyseal c/r s/d tap

4шт.

21

111533C1

SUPPORT

filler, fender, left

1шт.

21

111534C1

SUPPORT

filler, fender, right

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 0.344 x 0.688 x 0.051

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

flange lock, 5/16-18

18шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

4шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1/4 x 1/2 type 5

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

flange lock, 1/4-20

4шт.

143088C1

PLUG

hole, 9/16

6шт.

22

109470C1

PANEL

cover, front roof

1шт.

23

472429C1

PLUG

Button

1шт.

24

118108C1

SEALING STRIP

SEAL panel edging trim

1шт.

25

118119C1

PLUG

hole

2шт.

26

66518C1

MIRROR

rear view

1шт.

120376

NUT,5/16"-18, G5

1шт.

623083R1

WASHER

lock, 5/16 cad lhtw

1шт.

27

1255897C2

SUPPORT

battery

2шт.

28

1253084C1

SUPPORT ROPS sealing

1шт.

120394

WASHER,3/8", SAE

WASHER, 0.406 x 0.812 x 0.051

2шт.

70571C1

DECAL

GRAPHIC product, ROPS caution instruction

1шт.

111480C3

DECAL

GRAPHIC product, ROPS safety caution

1шт.
