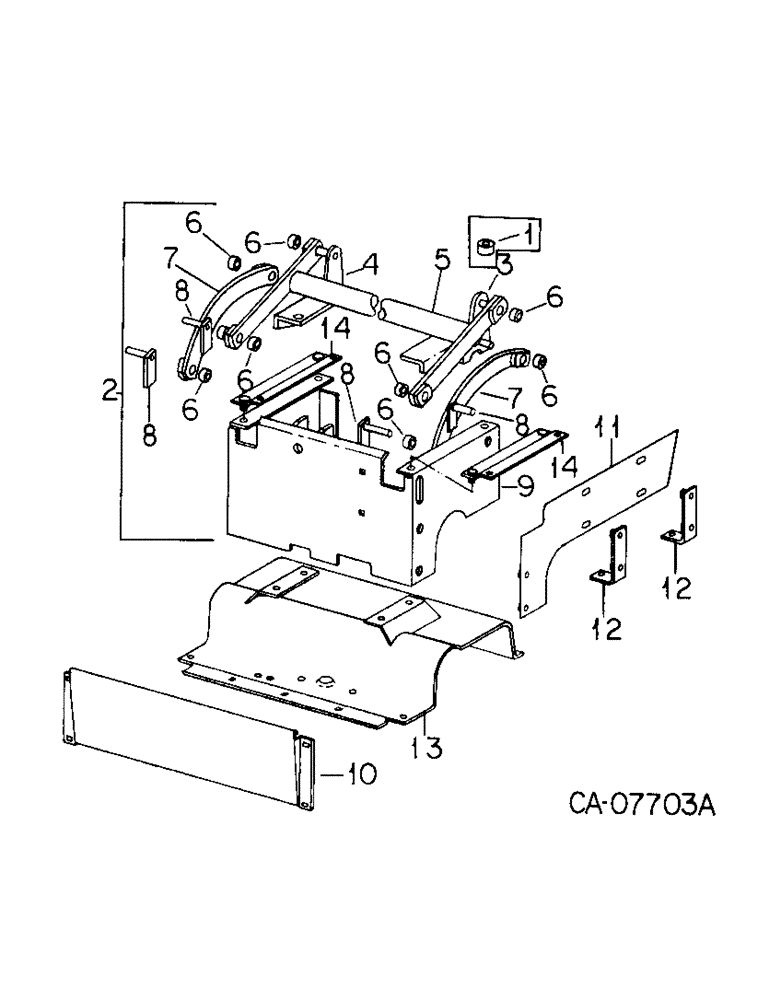

Запчасти Case IH 3488 (13-17) - SUPERSTRUCTURE, SUSPENSION, HYDRAULIC SEAT (05) - SUPERSTRUCTURE

1

120196C1

SPACER

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

2

148617C93

SUPPORT

SUSPENSION ASSY seat

1шт.

3

534388R3

SUPPORT

ASSY seat suspension, left

1шт.

4

534389R3

SUPPORT

ASSY seat suspension, right

1шт.

931834R1

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

M12 x 30 class 8.8

2шт.

933966R1

LOCK WASHER,M12

WASHER lock, 12 MM

2шт.

21796R1

WASHER

0.656 x 1.000 x 0.054

2шт.

5

144167C91

LINK

ASSY seat upper

1шт.

6

534398R1

BUSHING,15.95mm ID x 19.13mm OD x 22.35mm L

seat linkage bar

8шт.

7

534399R1

BAR

ASSY seat lower link

2шт.

8

534402R1

PIN

ASSY front pivot

4шт.

9

148618C3

SUPPORT

ASSY seat

1шт.

30167R1

NUT,M8, Cl 10

M8 phc class 10

2шт.

934309R1

LOCK WASHER,M8

WASHER lock, 8 MM

2шт.

10

1251905C2

PANEL

front seat suspension

1шт.

1276064C1

PREV TORQUE BOLT,Cross Pan Hd, M8 x 12mm

SCREW, M8 x 12 polyseal ph/cr mach

2шт.

11

1251906C1

PANEL

ASSY side seat suspension

1шт.

1276064C1

PREV TORQUE BOLT,Cross Pan Hd, M8 x 12mm

SCREW, M8 x 12 polyseal ph/cr mach

2шт.

12

1251908C1

BRACKET

BRACE ASSY side seat panel

2шт.

931562R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

M8 x 16 phc class 8.8

2шт.

13

143914C3

COVER

ASSY seat support

1шт.

14

1267297C1

BRACKET

SUPPORT ASSY offset seat, Serial Range: -714

1шт.

14

1267402C1

BAR

SUPPORT ASSY offset seat, Start Serial: 715

1шт.

21496R1

WASHER

0.344 x 0.750 x 0.105

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

flange lock, 5/16

8шт.
