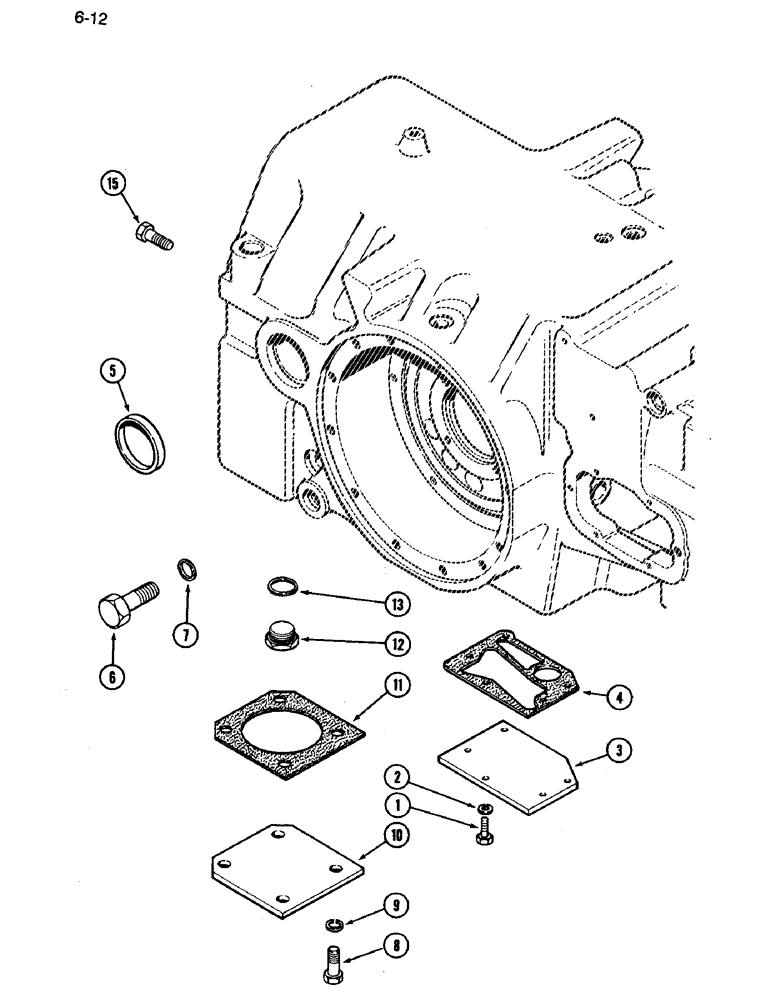

Запчасти Case IH 3394 (6-12) - TRANSMISSION COVERS, WITHOUT HITCH (06) - POWER TRAIN

1

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

5шт.

2

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

3

A162800

PLATE

COVER - transmission bottom

1шт.

4

A185804

MANIFOLD GASKET

- cover (Replaces A64014)

1шт.

5

A63091

PLUG,Cup, 3 7/8"

- oil retaining (Rockshaft hole opening)

2шт.

6

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

(Bellcrank stud hole) Hex, 1"-8 x 3", G5

1шт.

7

A27366

GASKET

- bolt

1шт.

8

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

8шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

10

A63496

COVER

- lift cylinder

2шт.

11

A63497

GASKET

- cover

2шт.

12

A63498

PLUG

- transmission hitch linkage opening

1шт.

13

A63447

GASKET

- plug

1шт.

15

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

2шт.
