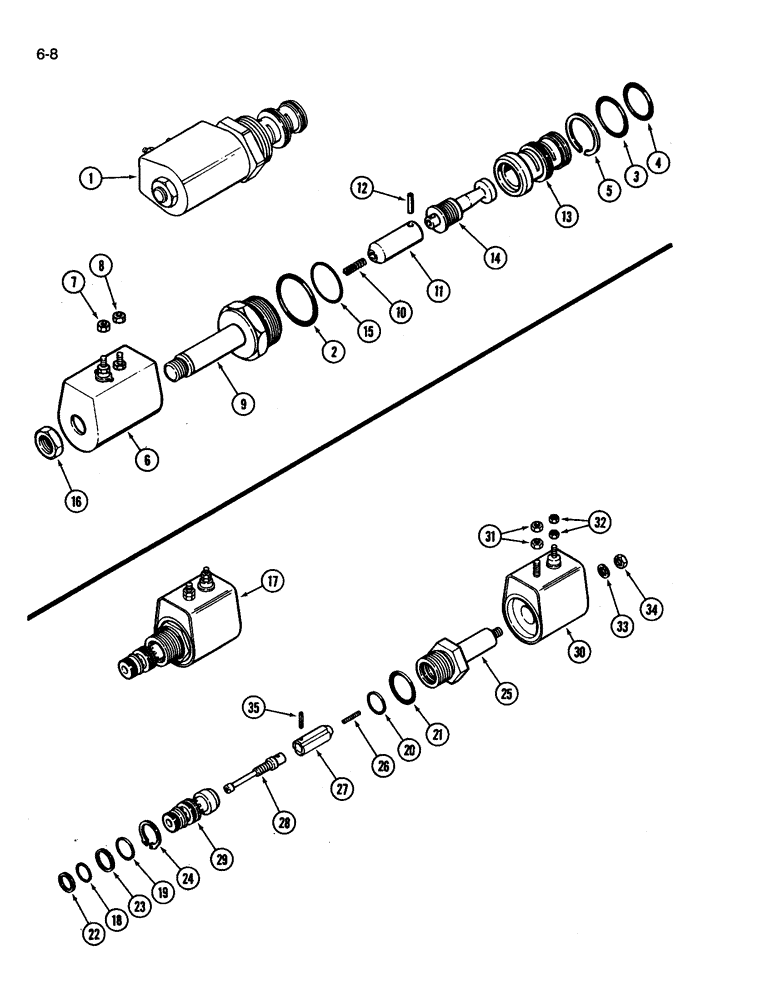

Запчасти Case IH 3394 (6-08) - SOLENOID ASSEMBLY (06) - POWER TRAIN

A160899

VALVE

SOLENOID ASSEMBLY - electric shift, Includes: Ref. 1 - 16

4шт.

1

A49488

SWITCH

CARTRIDGE ASSEMBLY - solenoid, electric shift, Includes: Ref. 2 - 5

1шт.

A49489

SEAL

KIT - service, solenoid seals, electric shift, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING - 2-1/16 inch ID, electric shift

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 1-9/16 inch ID, electric shift

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16 inch ID, electric shift

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining, electric shift

1шт.

6

A49486

SWITCH

COIL ASSEMBLY - solenoid, electric shift, Includes: Ref. 7 and 8

1шт.

7

225-14108

NUT,#8-32

- hex, No. 8 NC, electric shift

2шт.

8

225-10110

NUT,#10-24

Electric shift #10-24

2шт.

9

NSS

NOT SOLD SEPARAT

TUBE - solenoid valve, electric shift

1шт.

10

A49487

SPRING

- coil, electric shift

1шт.

11

NSS

NOT SOLD SEPARAT

PLUNGER - solenoid, electric shift

1шт.

12

NSS

NOT SOLD SEPARAT

PIN - roll, spool retaining, electric shift

1шт.

13

NSS

NOT SOLD SEPARAT

CAGE - soleniod, electric shift

1шт.

14

NSS

NOT SOLD SEPARAT

SPOOL - solenoid pressure, electric shift

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - 1-11/16 inch ID, electric shift

1шт.

16

131-60

LOCK NUT,5/8"-18

NUT - heavy hex, self-locking, 5/8 inch NF, electric shift

1шт.

A156471

VALVE

SOLENOID ASSEMBLY - duel range, 24 speed transmission, Includes: Ref. 17 - 35

2шт.

17

A49482

CARTRIDGE

ASSEMBLY - SOLENOID, duel range, 24 speed transmission, Includes: Ref. 18 - 24

1шт.

A49485

SEAL

KIT - service, solenoid seals, duel range, 24 speed transmission, Includes: Ref. 18 - 24

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - rubber, duel range, 24 speed transmission

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - rubber, duel range, 24 speed transmission

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - rubber, duel range, 24 speed transmission

1шт.

21

NSS

NOT SOLD SEPARAT

O-Ring - rubber, duel range, 24 speed transmission

1шт.

22

NSS

NOT SOLD SEPARAT

RING - back up, duel range, 24 speed transmission

1шт.

23

NSS

NOT SOLD SEPARAT

RING - back up, duel range, 24 speed transmission

1шт.

24

NSS

NOT SOLD SEPARAT

RING - retaining, duel range, 24 speed transmission

1шт.

25

NSS

NOT SOLD SEPARAT

TUBE - solenoid valve, duel range, 24 speed transmission

1шт.

26

A49484

SPRING

- solenoid, duel range, 24 speed transmission

1шт.

27

NSS

NOT SOLD SEPARAT

PLUNGER - solenoid, duel range, 24 speed transmission

1шт.

28

NSS

NOT SOLD SEPARAT

SPOOL - solenoid, duel range, 24 speed transmission

1шт.

29

NSS

NOT SOLD SEPARAT

CAGE - solenoid, duel range, 24 speed transmission

1шт.

30

A49483

COIL

ASSEMBLY - solenoid, duel range, 24 speed transmission, Includes: Ref. 31 and 32

1шт.

31

225-14108

NUT,#8-32

- hex, No. 8 NC, duel range, 24 speed transmission

2шт.

32

225-10110

NUT,#10-24

Duel range, 24 speed transmission #10-24

2шт.

33

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock, internal tooth 1/4 inch, duel range, 24 speed transmission

1шт.

34

129-577

NUT,1/4"-20, G5

- hex, 1/4 inch NC, duel range, 24 speed transmission

1шт.

35

NSS

NOT SOLD SEPARAT

PIN - roll, spool retaining, duel range, 24 speed transmission

1шт.
