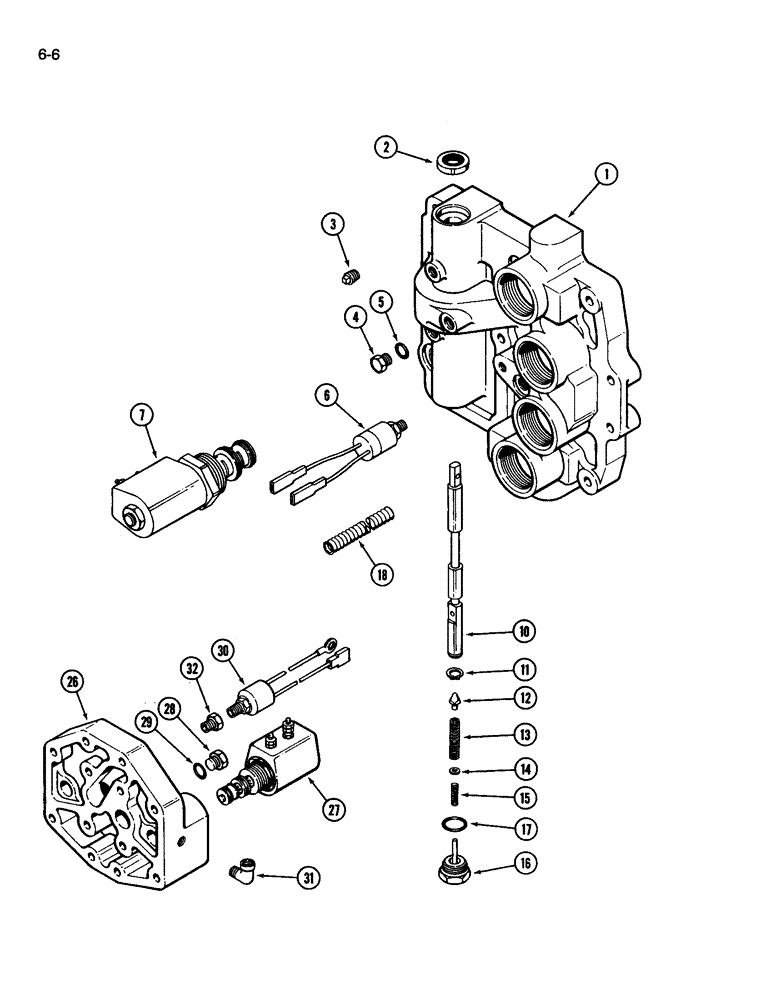

Запчасти Case IH 3394 (6-06) - HYDRAULIC MANIFOLD ASSEMBLY (06) - POWER TRAIN

1

A158337

MANIFOLD

- electric shift

1шт.

2

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

- oil, electric shift

1шт.

3

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT, electric shift

1шт.

4

9672438

PLUG,7/16" - 20 ORB

Electric shift, Incl. Ref. 5 Hex Hd, 7/16"-20 ORB

5шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Electric shift

1шт.

6

A156555

SWITCH

- pressure, oil, electric shift

3шт.

7

A160899

VALVE

ASSEMBLY - solenoid (See Figure 6-8), electric shift

4шт.

10

A151914

SPOOL

- modulator, electric shift, Includes: Ref. 11

1шт.

11

G46176

SNAP RING,#56, Ext

Ring, Snap, , electric shift #56, Ext

1шт.

12

A61991

POINT

- modulator, electric shift

1шт.

13

A60155

SPRING

- primary, modulator, electric shift

1шт.

14

A61989

WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk

- spring guide, electric shift

1шт.

15

A61988

SPRING

- secondary, modulator, electric shift

1шт.

16

A61985

PLUG

- modulator, electric shift, Includes: Ref. 17

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Electric shift

1шт.

18

A168840

CONDUIT

- convoluted (Order A181759), electric shift

1шт.

26

A168960

TUBE ASSY.

MANIFOLD - duel range, 24 speed transmission

1шт.

27

A156471

VALVE

ASSEMBLY - solenoid (see Figure 6-8), duel range, 24 speed transmission

2шт.

28

9672438

PLUG,7/16" - 20 ORB

Duel range, 24 speed transmission, Incl. Ref. 29 Hex Hd, 7/16"-20 ORB

2шт.

29

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Duel range, 24 speed transmission

1шт.

A156759

HARNESS

- soenoid ground (see Figure 4-22), duel range, 24 speed transmission

1шт.

30

A176755

SWITCH

- pressure, oil, duel range, 24 speed transmission

2шт.

31

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

- street, 90 degree, 1/8 inch PT, duel range, 24 speed transmission

1шт.

32

217-9

ADAPTER,1/8"-27 Fem NPTF x 1/8"-27 NPTF Male

ADAPTOR - brass, 1/8 x 1/8 inch, duel range, 24 speed transmission

1шт.
