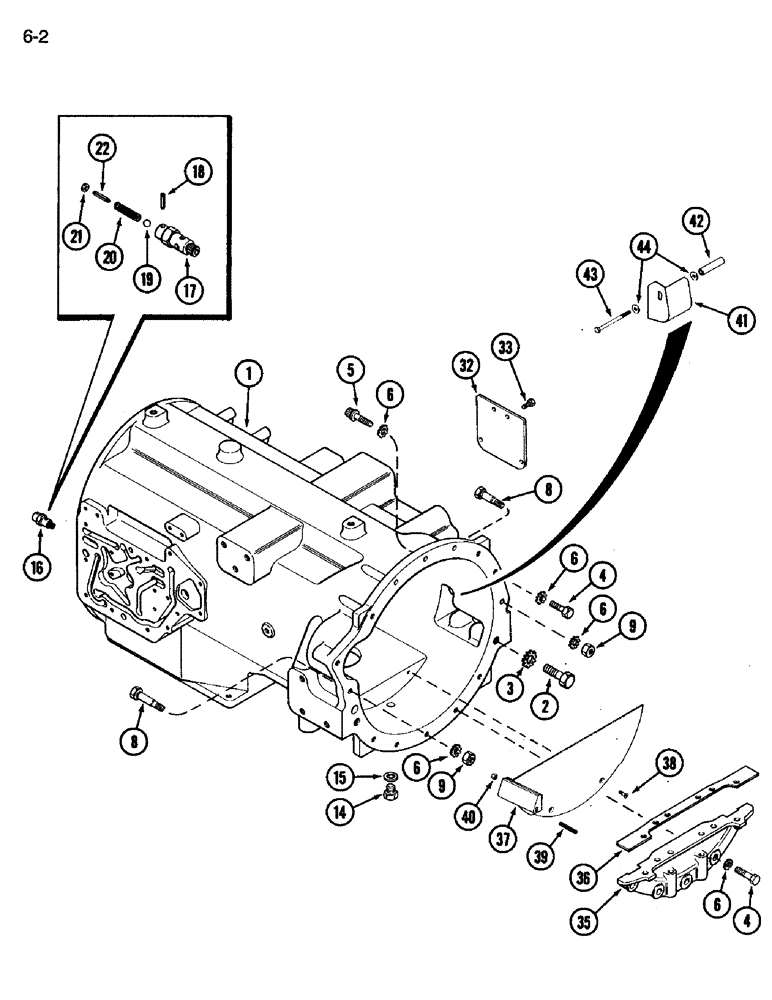

Запчасти Case IH 3394 (6-02) - TORQUE TUBE (06) - POWER TRAIN

1

A182500

TUBE

- torque

1шт.

2

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, Grade 8

2шт.

3

A34651

LOCK WASHER

- external shakeproof, 3/4 inch

2шт.

4

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch, grade 5

3шт.

4

26-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 8

- hex, 1/2 NC x 1-5/8 inch, Grade 8

5шт.

5

26166R1

12 PT SCREW,Flg, 5/8" - 11 x 2 1/4"

BOLT - ferry head, 5/8 NC x 2-1/4 inch

3шт.

6

493-41065

LOCK WASHER,Ext Tooth, 5/8"

WASHER - external shakeproof, 5/8 inch

6шт.

6

A34650

LOCK WASHER

- external shakeproof, 1/2 inch

7шт.

8

A149765

STEP BOLT

BOLT - hex dowel, 1/2 NC x 2-21/32 inch

1шт.

8

A149764

STEP BOLT

BOLT - hex dowel, 1/2 NC x 3-9/64 inch

1шт.

9

25-168

NUT,1/2"-13, G5, Hvy

- heavy hex, 1/2 inch NC

2шт.

14

A140222

PLUG

- drain

1шт.

15

A58608

GASKET

- drain plug

1шт.

16

A60890

VALVE

ASSEMBLY - relief, Includes: Ref. 17 - 22

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

18

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

19

211-208

BALL,5/16" Dia

- 5/16 inch, grade 200, chrome alloy steel

1шт.

20

A60889

SPRING

- relief valve

1шт.

21

195-526

WASHER,7/16" x 7/8" x .083"

- flat, 5/32 x 5/16 x 1/32 inch

1шт.

22

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

32

A168592

COVER

PLATE - valve opening (12 speed transmission)

1шт.

33

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

35

A144906

PLATE

SHIELD - dust, flywheel

1шт.

36

A189540

GASKET

- shield (Replaces A152424)

1шт.

37

A182489

BAFFLE

- oil

1шт.

38

164-30

HEX SOC SCREW,Flat Hd, 1/4" - 20 x 5/8"

BOLT - hex socket flat head, 1/4 NC x 5/8 inch

2шт.

39

178-450

SCREW - hex socket, 5/16 NC x 2 inch

1шт.

40

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, grade 5

2шт.

41

A182513

DEFLECTOR

- oil

1шт.

42

A182514

SPACER

- deflector

1шт.

43

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch

1шт.

44

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

2шт.
