Запчасти Case IH 3394 (5-30) - FRONT WHEELS, 8 BOLT (05) - STEERING

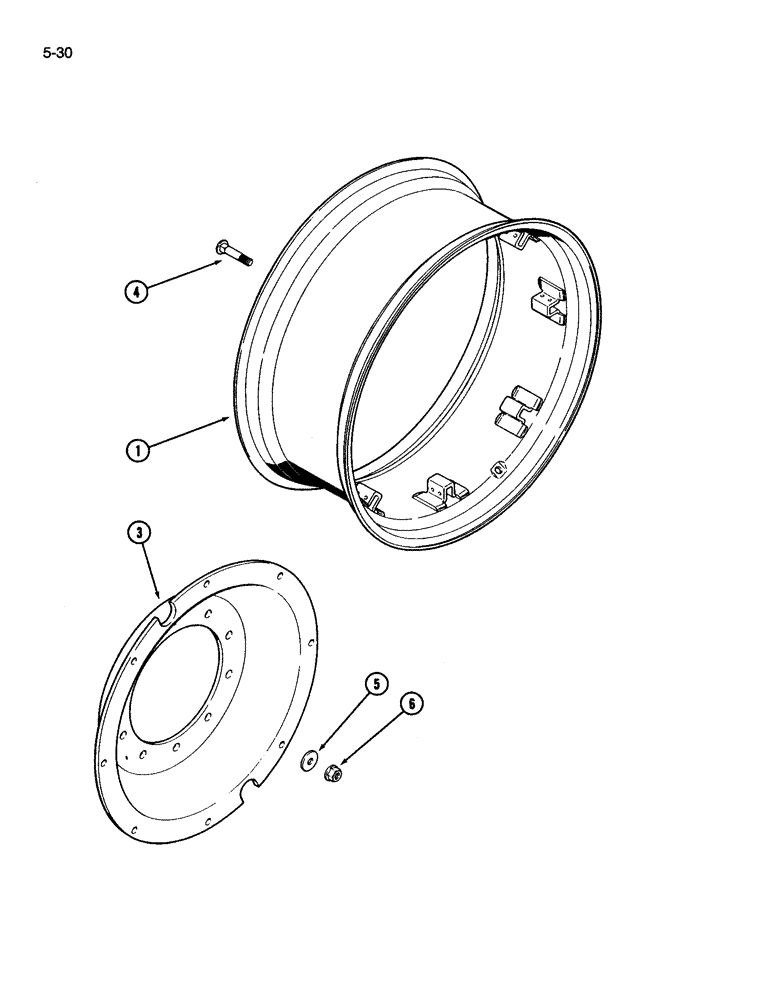

Схема запчастей Case IH 3394 - (5-30) - FRONT WHEELS, 8 BOLT (05) - STEERING
5
3
6
1
4

Артикул

Название

Примечание

Количество

1

A185508

RIM

- front wheel (W12 x 28)(For 13.6 and 14.9 tires), 28 inch

2шт.

1

A185509

RIM

- front wheel (W15 x 28)(For 16.9 and 18.4 tires), 28 inch

2шт.

3

A185507

DISC

- 28 inch wheels

2шт.

4

133-3

CARRIAGE BOLT,Short Nk, 5/8" - 11 x 3 1/4", Gr 5

BOLT, CARRIAGE, , 28 inch wheels Short NK, 5/8"-11 x 3 1/4", G5

16шт.

5

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch, 28 inch wheels

16шт.

6

131-942

FLANGE NUT,Flg, 5/8"-11, G5

- hex, flange, 5/8 inch NC, 28 inch wheels

16шт.

1

A185510

RIM

- front wheel (W15 x 26)(For 16.9 and 18.4 tires), 26 inch

2шт.

3

A185506

DISC

- 26 inch wheels

2шт.

4

133-3

CARRIAGE BOLT,Short Nk, 5/8" - 11 x 3 1/4", Gr 5

BOLT, CARRIAGE, , 26 inch wheels Short NK, 5/8"-11 x 3 1/4", G5

16шт.

5

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch, 26 inch wheels

16шт.

6

131-942

FLANGE NUT,Flg, 5/8"-11, G5

- hex, flange, 5/8 inch NC, 26 inch wheels

16шт.

Выбрано товаров: 11
