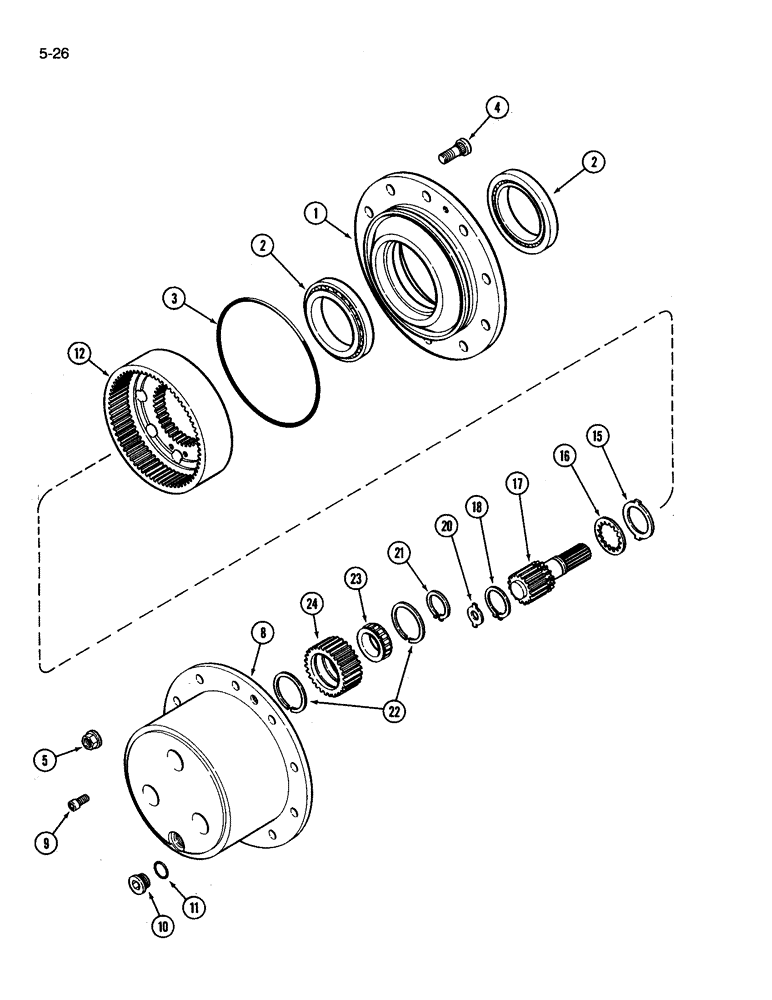

Запчасти Case IH 3394 (5-26) - FRONT AXLE PLANETARIES AND HUB (05) - STEERING

A169531

AXLE

ASSEMBLY - front (Complete), Includes: Ref. 1 - 24

1шт.

1

A52127

HUB CAP

HUB - planetary

2шт.

2

A52377

BEARING ASSY,120mm ID x 170mm OD x 27mm W

BEARING - roller

4шт.

3

A52132

O-RING,255 mm ID x 4 mm

- hub sealing

2шт.

4

A52136

BOLT (SPREADER)

BOLT - wheel, 20 mm x 63 mm

20шт.

5

A52137

NUT

- hex flange, 20 mm

20шт.

8

A52143

CARRIER

- planetary

2шт.

9

A52150

HEX SOC SCREW

SCREW - hex socket, 12 mm

4шт.

10

A52148

PLUG

- hex socket, 30 mm

2шт.

11

A52368

SEAL

O-RING - plug

2шт.

12

A52367

PINION

GEAR - internal, planetary

2шт.

15

A52140

WASHER

- thrust

2шт.

16

A52141

WASHER

- thrust

2шт.

17

A52390

SHAFT

GEAR - sun

2шт.

18

A52142

RING

- retaining, sun gear

2шт.

20

A52191

WASHER

- thrust, 1.5 mm

1шт.

20

A52192

WASHER

- thrust, 2.0 mm

1шт.

20

A52193

WASHER

- thrust, 2.5 mm

1шт.

20

A52194

WASHER

- thrust, 3.0 mm

1шт.

20

A52195

WASHER

- thrust, 1.7 mm

1шт.

20

A52196

WASHER

- thrust, 2.2 mm

1шт.

21

A52147

RING

- retaining, bearing

6шт.

22

A52146

RING

- retaining

12шт.

23

A52145

ROLLER BEARING,50 mm ID x 75.2 mm OD x 25 mm

- roller

6шт.

24

A52391

GEAR WHEEL

PINION - planetary

6шт.
