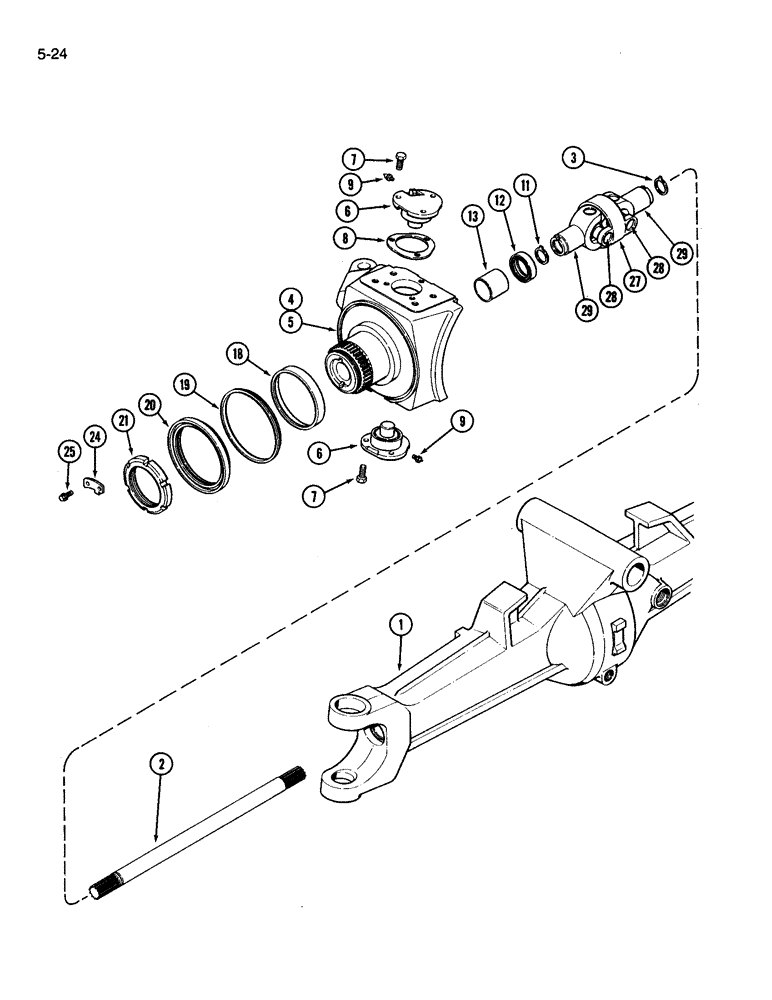

Запчасти Case IH 3394 (5-24) - FRONT AXLE STEERING KNUCKLE AND SHAFT (05) - STEERING
№
Артикул
Название
Примечание
Количество
A169531
AXLE
ASSEMBLY - front (Complete), Includes: Ref. 1 - 29
1шт.
1
REF
INSTRUCTION
HOUSING - axle (See Figure 5-16)
1шт.
2
A52098
SHAFT
- axle
2шт.
3
A52126
RING
- retaining
2шт.
4
A52108
KNUCKLE JOINT
KNUCKLE - steering, right hand
1шт.
5
A52107
KNUCKLE JOINT
KNUCKLE - steering, left hand
1шт.
6
A52364
PIN
- king
4шт.
7
A52122
BOLT,Hex, M14 x 35mm
BOLT - hex, 14 mm x 35 mm
12шт.
8
A52362
SHIM,0.4mm Thk
Pivot 0.4mm Thk
1шт.
8
A52115
SHIM,0.6mm Thk
Pivot 0.6mm Thk
1шт.
8
A52363
SHIM,0.8mm Thk
Pivot 0.8mm Thk
1шт.
8
A52116
SHIM,1.0mm Thk
Pivot 1.0mm Thk
1шт.
8
A52117
SHIM,1.4mm Thk
Pivot 1.4mm Thk
1шт.
8
P50843
CYLINDER END CAP
Pivot 1.6mm Thk
1шт.
8
A52119
SHIM,1.8mm Thk
Pivot 1.8mm Thk
1шт.
8
A52120
SHIM,2.0mm Thk
Pivot 2.0mm Thk
1шт.
9
A52371
FITTING
- grease, 6 mm thread
4шт.
11
A52126
RING
- retaining
2шт.
12
1968314C1
SEAL
- U-joint
2шт.
13
1968316C1
BUSHING,56mm ID x 60mm OD x 40mm L
SLEEVE - bearing
2шт.
18
A52128
SLEEVE CYLINDER
SLEEVE - axle
2шт.
19
A52130
RING
- scraper
2шт.
20
A52129
SEAL
- shaft
2шт.
21
A52365
NUT
- ring, slotted
2шт.
24
A52366
PLATE, LOCKING
PLATE - lock
2шт.
25
A52135
FLANGE BOLT
BOLT - hex flange, 10 mm x 20 mm
4шт.
ref joint assy---a52389. if you required grease zerks---- straight zerk is a52236, 90 degree is 713608r91. see note a & b for qty. required. jcl.
1шт.
27
1342230C1
UNIVERSAL JOINT
YOKE - center
1шт.
For service on joint assembly with one lubrication fitting on center yoke.
1шт.
27
1342233C1
FORK
YOKE - center
1шт.
For service on joint assembly with two lubrication fitting in center yoke.
1шт.
28
1342231C1
U-JOINT SPIDER
BEARING ASSEMBLY - cross
2шт.
29
1342232C1
YOKE
- end
2шт.
For service on joint assembly with one lubrication fitting on center yoke.
1шт.
29
1342235C1
FORK
YOKE - end
2шт.
For service on joint assembly with two lubrication fitting in center yoke.
1шт.
