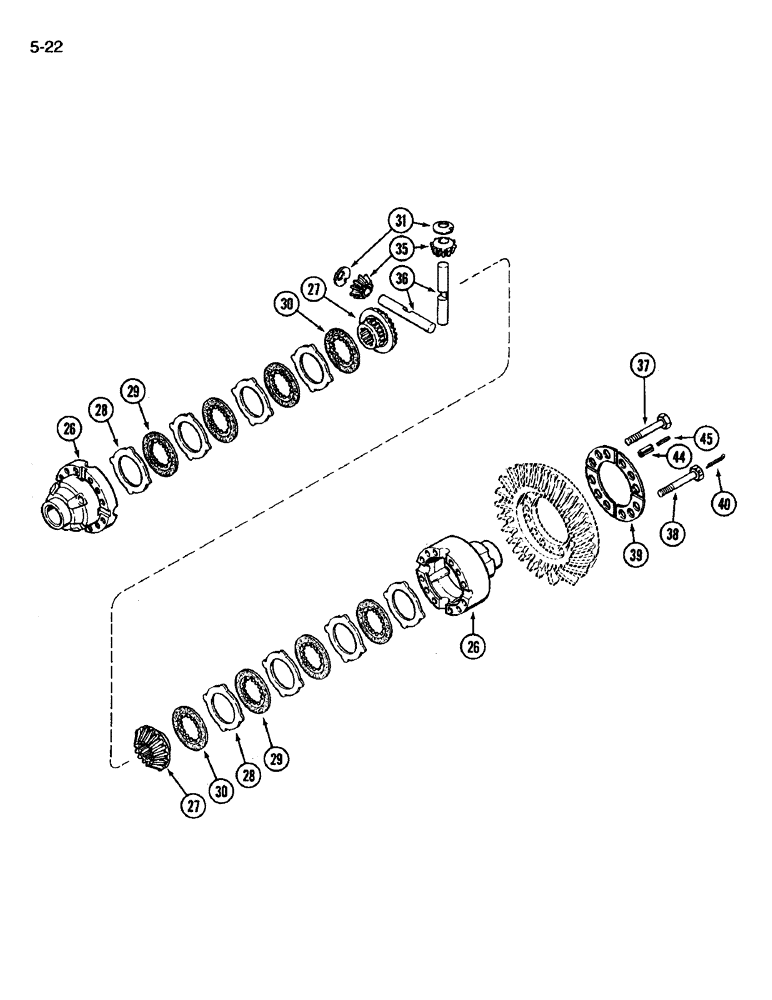

Запчасти Case IH 3394 (5-22) - FRONT AXLE DIFFERENTIAL (CONTINUED) (05) - STEERING

A169531

AXLE

ASSEMBLY - front (Complete), Includes: Ref. 26 - 45 and 1 - 25 on Figure 5-20

1шт.

A52075

SLIP RING

DISK ASSEMBLY - differential limited slip, Includes: Ref. 26 - 45

1шт.

26

A52076

CASE

- differential axle

1шт.

27

A52083

GEAR WHEEL

GEAR - side, differential

2шт.

28

A52388

DISC

DISK - slip, outer

8шт.

29

A52078

DISK HARROW

DISK - slip, inner

6шт.

30

A52080

DISC

DISK - thrust, 3.0 mm

1шт.

30

A52081

DISK HARROW

DISK - thrust, 2.9 mm

1шт.

30

A52082

DISK HARROW

DISK - thrust, 2.8 mm

1шт.

31

A52085

WASHER

- thrust, differential pinion

4шт.

35

A52084

GEAR WHEEL

GEAR - differential pinion

4шт.

36

A52086

SHAFT

- pinion

2шт.

37

A52087

BOLT

BOLT - hex, 12 mm x 90 mm

4шт.

38

A52088

BOLT

BOLT - hex, 12 mm x 90 mm, drilled

8шт.

39

A52089

PLATE ASSY.

PLATE - lock, differential gear

4шт.

40

632-582

COTTER PIN,M2 x 25

PIN - cotter, 2 mm x 25 mm

4шт.

44

A52090

AXLE PIN

PIN - roll, 12 x 28 mm

4шт.

45

A52092

AXLE PIN

PIN - roll, 7 x 30 mm

4шт.
