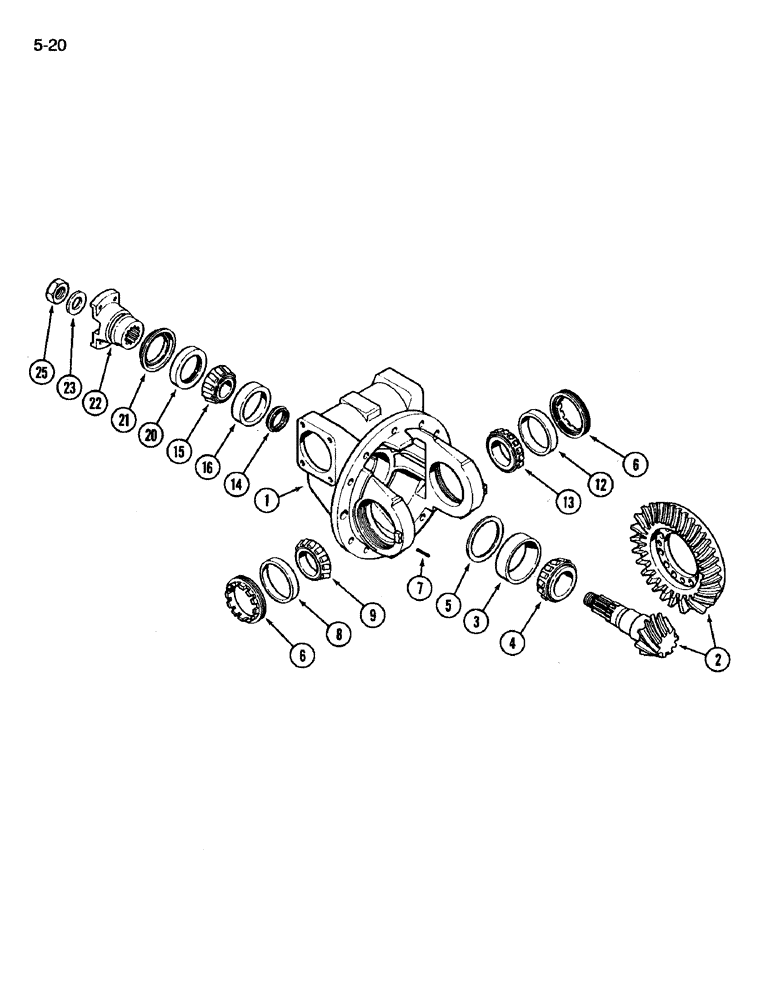

Запчасти Case IH 3394 (5-20) - FRONT AXLE DIFFERENTIAL (05) - STEERING

A169531

AXLE

ASSEMBLY - front (Complete), Includes: Ref. 1 - 25 and 26 - 45 on Figure 5-22

1шт.

1

A52052

CARRIER

- differential

1шт.

2

A52311

GEAR-SET

GEAR SET - differemtial pinion

1шт.

3

107577R1

BEARING, CUP

CUP - pinion shaft bearing

1шт.

4

298033R91

TAPERED BEARING,53.98mm ID x 36.51mm W

CONE - pinion shaft bearing

1шт.

5

A52062

SHIM,0.1mm Thk

Bearing 0.1mm Thk

1шт.

5

A52061

SHIM,0.2mm Thk

Bearing 0.2mm Thk

1шт.

5

A52060

SHIM,0.3mm Thk

Bearing 0.3mm Thk

1шт.

5

A52059

SHIM,0.5mm Thk

Bearing 0.5mm Thk

1шт.

6

A52067

BEARING LOCK NUT

- adjusting, differential bearing

2шт.

7

A52091

AXLE PIN

PIN - roll, 6 x 30 mm

2шт.

8

105497H

BEARING CUP,96.85mm OD x 15.77mm W

CUP - bearing

1шт.

9

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

CONE - bearing, 2-1/4 inch ID

1шт.

12

A52064

CUP ASSY.

CUP - bearing

1шт.

13

105503H

ROLLER BEARING,57.15mm ID x 24.61mm W

CONE - bearing

1шт.

14

A52055

SLEEVE CYLINDER

SLEEVE - pinion shaft

1шт.

15

406535R91

ROLLER BEARING,1.5005" ID x 3.251" OD x 1.1643, 0.9063"

CONE - bearing

1шт.

16

530745R1

BEARING, CUP

(Replaces 530745C1)

1шт.

20

A52068

SEAL

- oil

1шт.

21

A52073

SEAL

COVER - pinion gear

1шт.

22

A52072

FLANGE

- drive

1шт.

23

A52069

WASHER

- pinion nut

1шт.

25

A52070

NUT

- hex, 26 mm

1шт.
