Запчасти Case IH 3394 (5-16) - FRONT AXLE HOUSING AND DIFFERENTIAL CARRIER (05) - STEERING

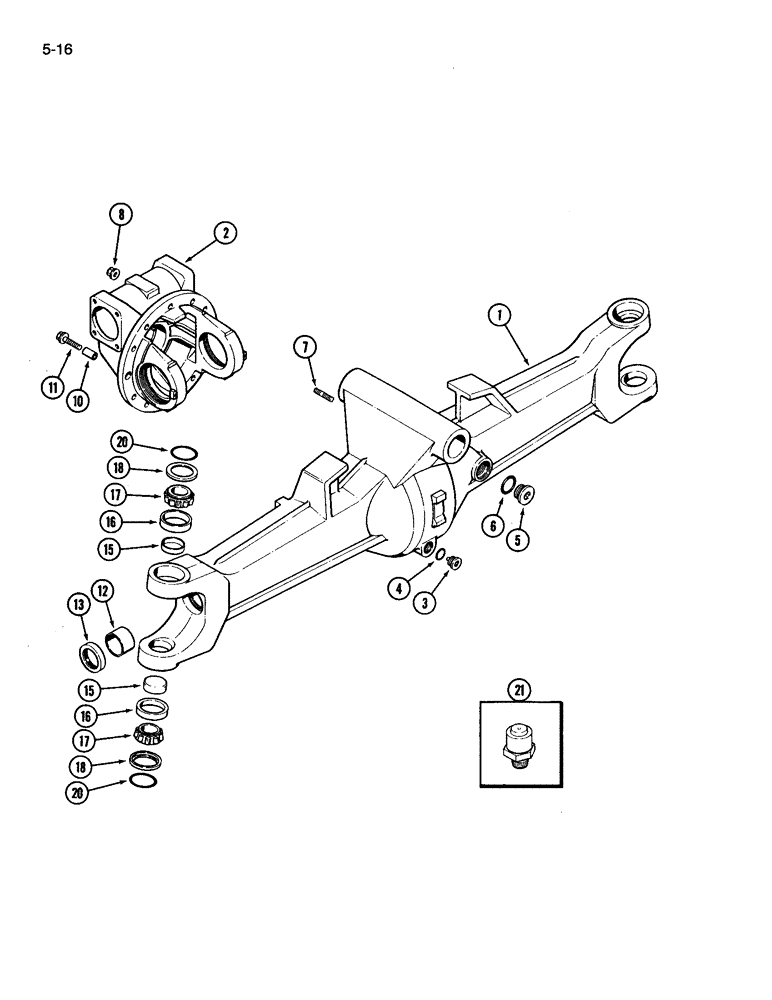

Схема запчастей Case IH 3394 - (5-16) - FRONT AXLE HOUSING AND DIFFERENTIAL CARRIER (05) - STEERING
21
17
12
11
20
17
20
18
6
16
16
3
15
7
13
8
4
15
1
5
10
2
18

Артикул

Название

Примечание

Количество

A169531

AXLE

ASSEMBLY - front (Complete), Includes: Ref. 1 - 21

1шт.

1

A52093

HOUSING

- axle

1шт.

2

REF

INSTRUCTION

CARRIER - differential (See Figure 5-20)

1шт.

3

A48804

PLUG

- hex socket, 24 mm thread

1шт.

4

A52097

O-RING,2mm Thk x 21mm ID

- plug

1шт.

5

A48791

PLUG

- hex socket, 42 mm thread

1шт.

6

A52372

O-RING,2.5mm Thk x 38mm ID

- plug

1шт.

7

A52101

STUD

- carrier to housing, 14 mm x 55 mm

5шт.

8

A52103

NUT

- hex, 14 mm

5шт.

10

A52099

SLEEVE CYLINDER

SLEEVE - differential housing

1шт.

11

A52094

FLANGE BOLT

BOLT - hex flange

5шт.

11

A52095

FLANGE BOLT

BOLT - hex flange, 14 mm x 55 mm

2шт.

12

1968315C1

BUSHING

SLEEVE - bearing

2шт.

13

1968314C1

SEAL

- U-joint

2шт.

15

A52109

CAP COVER

CAP - seal

4шт.

16

131312C1

BEARING CUP

CUP - bearing

4шт.

17

871244R1

ROLLER BEARING

CONE - bearing

4шт.

18

A52112

SEAL

CAP - sealing

4шт.

20

A52113

O-RING,57 mm ID

- steering pivot

4шт.

21

A48855

VALVE

- breather

1шт.

Выбрано товаров: 20
