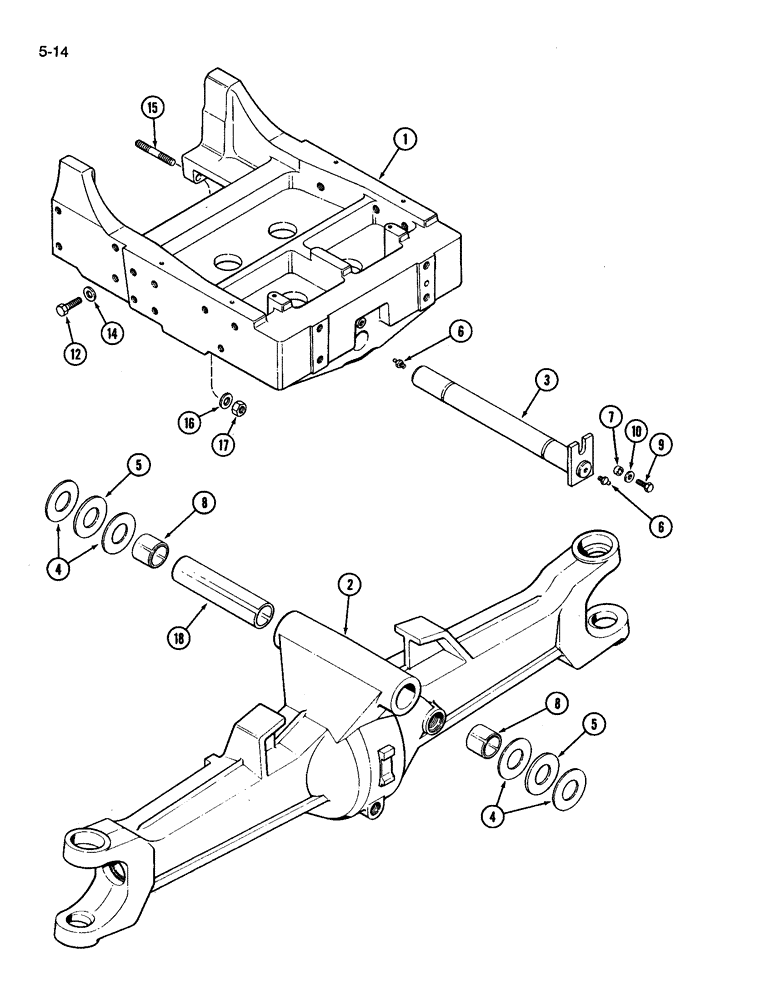

Запчасти Case IH 3394 (5-14) - FRONT AXLE AND SUPPORT (05) - STEERING

1

A177822

SUPPORT ASSY.

SUPPORT - front axle

1шт.

2

REF

INSTRUCTION

AXLE ASSEMBLY - front (See Figure 5-16)

1шт.

3

A169586

PIN

- axle pivot

1шт.

4

A177854

WASHER,50.3mm ID x 90mm OD x 1.6mm Thk

front axle pivot

1шт.

5

A177855

SEALING WASHER,50.3mm ID x 90mm OD x 4.9mm Thk

thrust, axle pivot

2шт.

6

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

7

A185525

SPACER

- pivot pin (Replaces A148908)

1шт.

8

A177916

BUSHING,50.3mm ID x 64.96mm OD x 50mm L

- pivot pin

2шт.

9

626-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.

10

D78732

WASHER

- flat, 1/2 inch, hardened, special

1шт.

12

326-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

4шт.

12

326-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

2шт.

14

A177952

WASHER

- hardened

6шт.

15

A180061

STUD

-, Serial Range: engine-support

2шт.

16

96-31066

WASHER,0.66" ID x 1.31" OD x 0.19" Thk

2шт.

17

25-1610

NUT,5/8"-11, G5, Hvy

- hex, 5/8 inch NC, heavy duty

2шт.

18

A185400

SPACER

- pipe, front axle pivot

1шт.
