Запчасти Case IH 3394 (5-08) - OIL COOLER SYSTEM (05) - STEERING

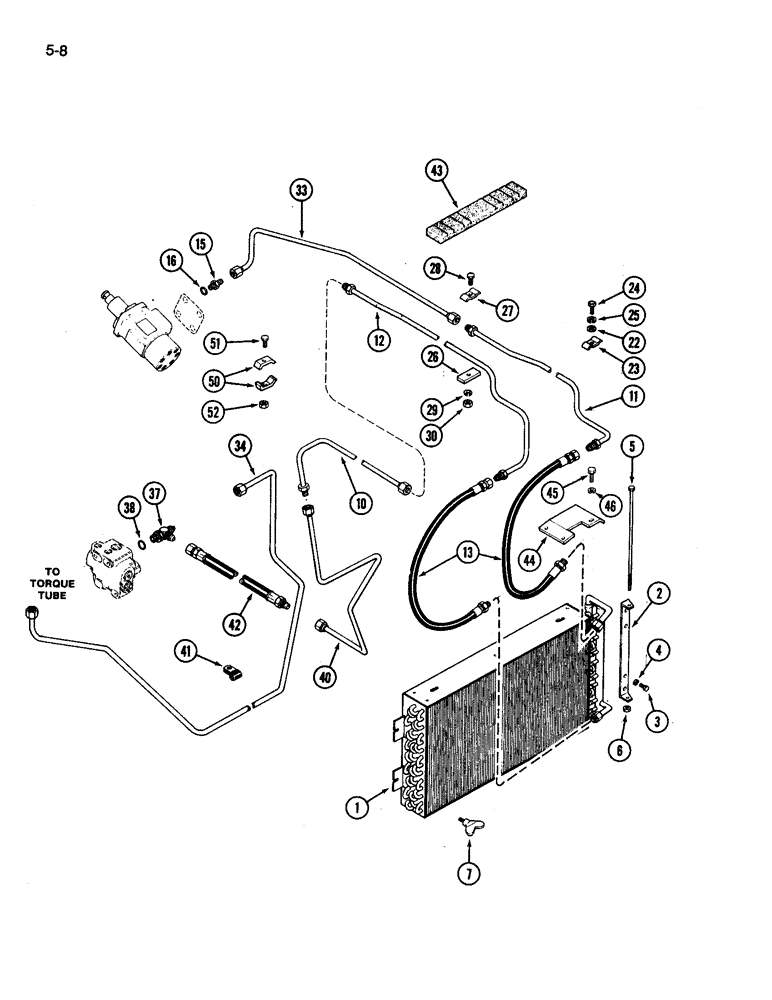

Схема запчастей Case IH 3394 - (5-08) - OIL COOLER SYSTEM (05) - STEERING
43
13
40
37
42
11
30
1
29
50
28
22
15
45
23
16
34
4
33
3
28
38
46
6
2
44
52
10
25
12
7
24
27
5
41
51

Артикул

Название

Примечание

Количество

1

A160190

COOLER

- oil, transmission

1шт.

2

A160194

SUPPORT

BRACKET - pivot, oil cooler

1шт.

3

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

2шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

413-4204

BOLT,Hex, 1/4" - 20 x 12-3/4", Gr 5

- hex, 1/4 NC x 12-3/4 inch

1шт.

6

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

1шт.

7

A141485

THUMB SCREW,5/16" - 18 x 5/8"

- thumb, 5/16 inch NC

2шт.

10

A164595

TUBE ASSY.

TUBE - center section, oil cooler outlet

1шт.

11

A166581

TUBE ASSY.

TUBE - inlet, oil cooler

1шт.

12

A166580

TUBE ASSY.

TUBE - outlel, oil cooler

1шт.

13

A36162

TUBE

HOSE - inlet and outlet

2шт.

15

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x o-ring boss, Incl. Ref 16

1шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

22

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

1шт.

23

A63323

CLAMP

- tube

1шт.

25

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

26

A60864

PLATE

- tube clamp

1шт.

27

A63323

CLAMP

- tube

2шт.

28

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

29

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

30

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

33

A147897

TUBE

- steering pump

1шт.

34

A177715

TUBE ASSY.

TUBE - brake, Serial Range: valve-sump

1шт.

37

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj O-ring boss, Includes: Ref. 38

1шт.

38

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

40

A185461

TUBE

- oil cooler return (Replaces A181563)

1шт.

41

49836

CLAMP

- tube

2шт.

42

A181905

HOSE,0.75" ID x 23.00"

SAE J516 - Oil cooler return 0.75" ID x 23.00"

1шт.

43

A149298

SEAL

- cooler and air conditioning tubes

1шт.

44

A145791

COVER

- tubes

1шт.

45

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

2шт.

46

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

50

A60224

CLAMP

- tube

2шт.

52

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

24

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

51

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

Выбрано товаров: 36
