Запчасти Case IH 3394 (5-06) - HYDROSTATIC STEERING SYSTEM (05) - STEERING

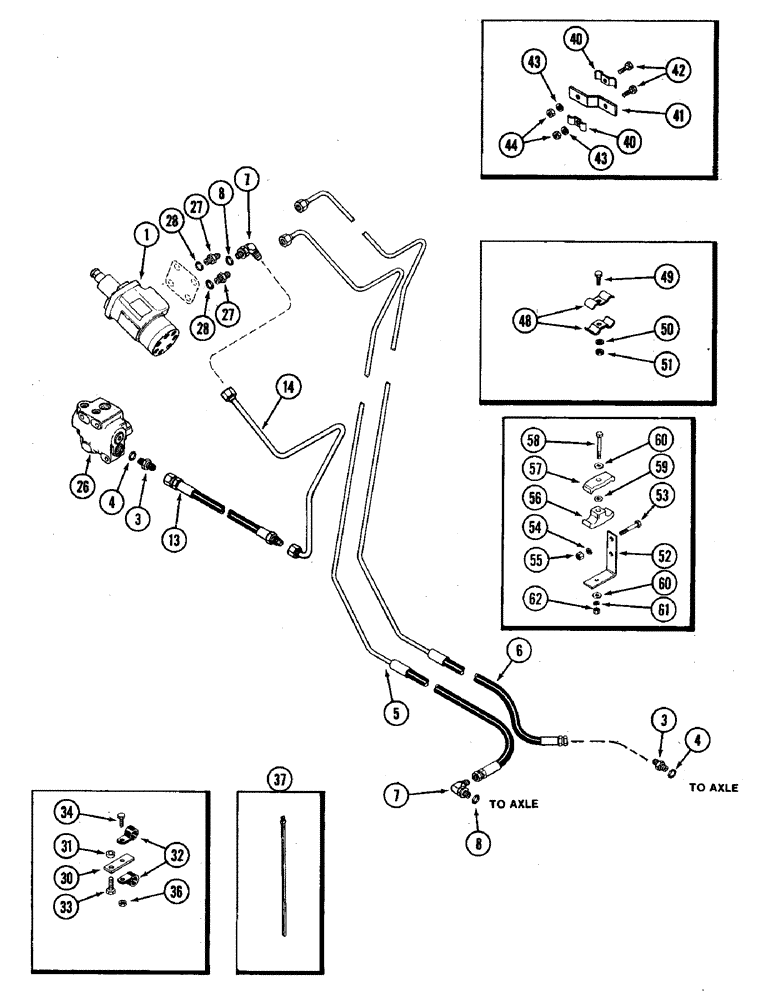

Схема запчастей Case IH 3394 - (5-06) - HYDROSTATIC STEERING SYSTEM (05) - STEERING
50
28
33
13
40
37
59
57
53
5
4
54
6
7
32
56
30
60
52
43
14
42
58
7
40
1
51
34
3
49
62
48
8
61
3
28
27
60
8
31
27
55
43
44
36
4
41
26

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP - hydrostatic steering (See Figure 5-10 or 5-12)

1шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x o-ring boss, Incl. Ref 4

2шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

5

A180117

TUBE ASSY.

HOSE - steering, right

1шт.

6

A180116

TUBE ASSY.

HOSE - steering, left

1шт.

7

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 8

2шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

A181905

HOSE,0.75" ID x 23.00"

SAE J516 - Brake valve to steering pump 0.75" ID x 23.00"

1шт.

14

A185462

TUBE

- brake valve to steering pump (Replaces A181564)

1шт.

26

REF

INSTRUCTION

VALVE - power brake (See Figure 7-08)

1шт.

27

A149481

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - restricting, Includes: Ref. 28

2шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

30

A67290

BRACKET

- steering hose clamps

1шт.

31

A67289

BUSHING

SPACER - bracket to oil pan

1шт.

32

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- tube

2шт.

33

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

34

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

36

131-461

LOCK NUT,1/4"-20

NUT - heavy hex, self-locking, 1/4 inch NC

1шт.

37

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

40

49885

CLAMP

- tube

2шт.

41

A165450

PLATE

- clamp mounting

1шт.

42

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

43

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

44

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

48

A63323

CLAMP

- tube

2шт.

49

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

50

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

51

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

52

A185670

BRACKET

- steering hose clamp

1шт.

53

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

54

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

55

425-106

NUT,3/8"-16, Cl 5

2шт.

56

D124301

CLAMP,3/4" ID

- tube

1шт.

57

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

- tube, cap

1шт.

58

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

59

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

60

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

61

492-11038

LOCK WASHER,3/8"

1шт.

62

425-106

NUT,3/8"-16, Cl 5

1шт.

Выбрано товаров: 39
