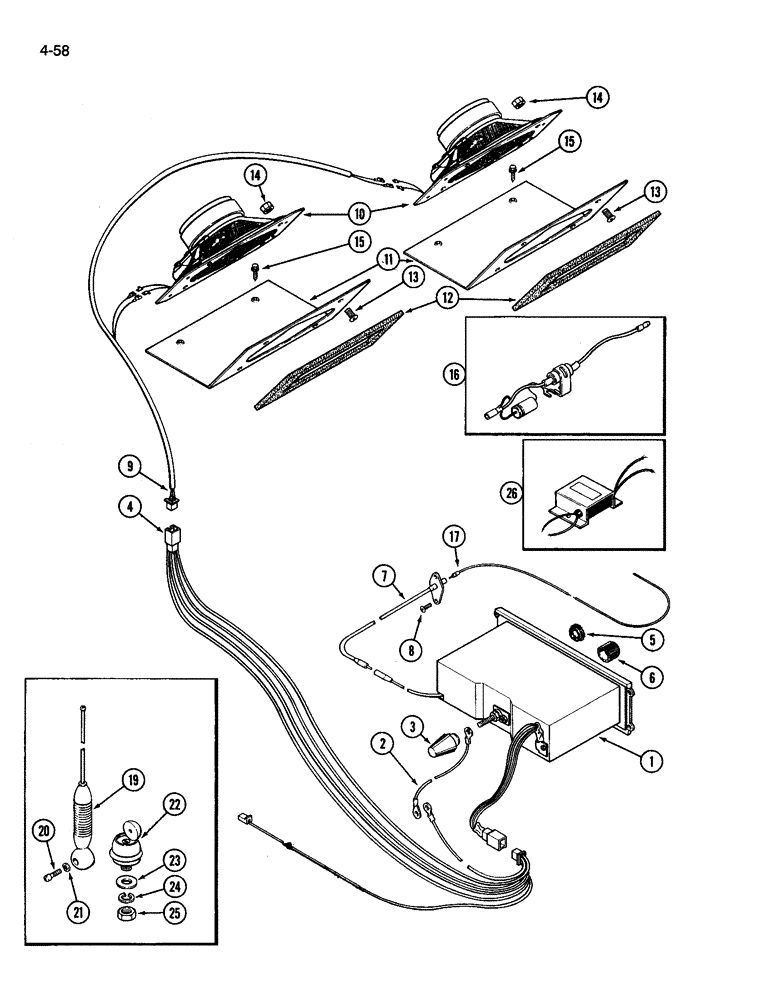

Запчасти Case IH 3394 (4-58) - HEADLINER MOUNTED RADIO AND SPEAKERS (04) - ELECTRICAL SYSTEMS

1

A180796

RADIO

KIT - radio, AM, Includes: Ref. 2 - 6

1шт.

1

A180797

RADIO

KIT - radio, AM-FM stereo, Includes: Ref. 2 - 6

1шт.

1

A180798

RADIO

KIT - radio, AM-FM stereo, with cassette tape player, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

WIRE - radio ground

1шт.

3

NSS

NOT SOLD SEPARAT

NUT - retaining

1шт.

4

NSS

NOT SOLD SEPARAT

HARNESS - radio wire

1шт.

5

A180058

KNOB

- control, volume

1шт.

6

A180059

KNOB

- control, tuning

1шт.

7

F64799

CABLE

- antenna

1шт.

8

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - tapping, round x-recess, No. 10-16 x 3/4 inch

2шт.

9

F66160

HARNESS

- speaker leads

1шт.

10

1983202C1

SPEAKER

- radio (Replaces F66124)

2шт.

11

F64667

PLATE

- speaker mounting

2шт.

12

F64793

SEAL

GASKET - speaker sealing

2шт.

13

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan head Phillips, No. 10 NC x 3/4 inch

8шт.

14

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

8шт.

15

187-579

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No. 10-16 x 1/2 inch

4шт.

16

F64184

CAPACITOR

- noise

1шт.

17

F64182

CABLE

- aerial

1шт.

97080C1

ANTENNA

- AM/FM radio, Includes: Ref. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

ANTENNA - radio

1шт.

20

177-99

SCREW,Sl Fil Hd, #10 - 32 x 5/8"

- slotted head, No. 10-32 x 5/8 inch

1шт.

21

192-149

WASHER

- lock, 3/16 inch

1шт.

22

NSS

NOT SOLD SEPARAT

BASE - antenna

1шт.

23

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

25

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

1шт.
