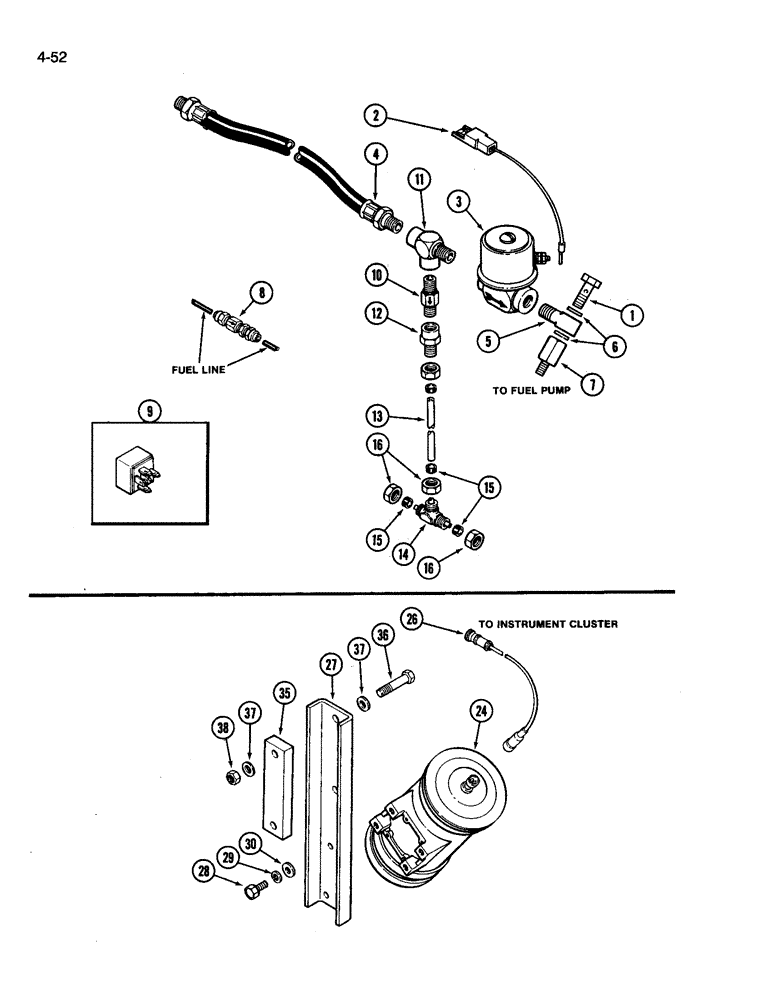

Запчасти Case IH 3394 (4-52) - ENGINE AUTOMATIC SHUTOFF KIT (04) - ELECTRICAL SYSTEMS

A180566

SHUTOFF KIT - automatic, engine (Order components), Includes: Ref. 1 - 16

1шт.

1

A47945

BOLT

CONNECTOR BOLT - oil pressure, hollow

1шт.

2

A165227

ELECTRICAL WIRE

WIRE - switch to firewall connector, 52 inch

1шт.

3

A176720

VALVE

ASSEMBLY - fuel

1шт.

4

A47946

HOSE

- fuel, 15-3/8 inch long

1шт.

5

A47919

FITTING

- banjo type

1шт.

6

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

- banjo fitting, copper

2шт.

7

A47944

ADAPTER

- extension

1шт.

8

A48232

VALVE

- check

1шт.

9

A147176

RELAY

- 30 amper

1шт.

10

A180904

VALVE

- pressure relief

1шт.

11

217-51

TEE,1/4"-18 NPTF Fem x 1/4"-18 NPTF Male Run

- pipe, 1/4 inch

1шт.

12

222-5132

FITTING,7/16"-24 x 1/4" NPT Fem

CONNECTOR - straight, 1/4 inch tube

1шт.

13

A48233

HOSE - nylon, 1/4 OD x 9 inch (Order L108947 and, Serial Range: cut-lenght)

1шт.

14

222-2750

TEE

- 1/4 inch tube

1шт.

15

222-2610

SLEEVE

- flanged, 1/4 inch tube OD

3шт.

16

222-2600

NUT

NUT - hex, 1/4 tube OD x 7/16-24 inch

3шт.

24

A177139

RELAY

SENSOR - ground speed

1шт.

For service order sensor 1983292C1, bracket 1960847C2 and attaching hardware. See Figure 4-54.

1шт.

26

A167862

HARNESS

- sensor, ground speed

1шт.

27

A167568

BRACKET

- mounting, sensor, ground speed

1шт.

28

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Ground speed sensor

2шт.

29

492-11038

LOCK WASHER,3/8"

ground speed sensor 3/8"

2шт.

30

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), Ground speed sensor 3/8", SAE

2шт.

35

A167577

PLATE

- sensor clamp, ground speed

1шт.

36

814-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8

ground speed sensor Hex, M16 x 70, 8.8

2шт.

37

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat, Ground speed sensor M16 x 30 x 3

4шт.

38

825-1416

NUT,M16, Cl 8

Ground speed sensor M16, Cl 8

2шт.
