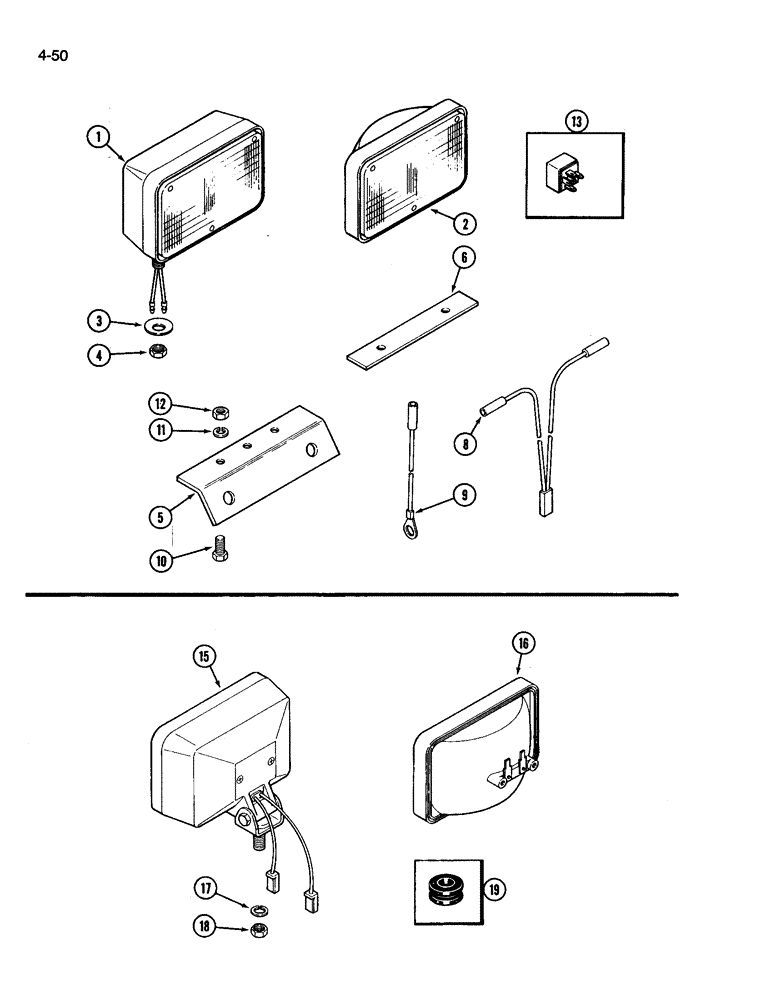

Запчасти Case IH 3394 (4-50) - FLOOD LAMP ATTACHMENT, LOWER FRONT (04) - ELECTRICAL SYSTEMS

A165462

LIGHT

KIT - front lower flood lamp (Order components), Includes: Ref. 1 - 13

1шт.

1

A165192

LAMP

- flood, lower front, Includes: Ref. 2

2шт.

2

A48265

LAMP

- sealed halogen unit

1шт.

3

D37049

WASHER

- mounting

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

A160889

BRACKET

- mounting

2шт.

6

A22837

BUSHING

SPACER - step, rear

2шт.

8

A147345

HARNESS

- lights, front flood

1шт.

9

A147343

ELECTRICAL WIRE

WIRE - ground

2шт.

10

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

11

492-11038

LOCK WASHER,3/8"

2шт.

12

425-106

NUT,3/8"-16, Cl 5

2шт.

13

A147176

RELAY

- 30 ampere

1шт.

15

A165347

LAMP

LIGHT - flood (For service order A177347), cab or fender mounted, Includes: Ref. 16

4шт.

16

A48265

LAMP

- sealed halogen unit

1шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Cab or fender mounted flood lamp 1/2"

4шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Cab or fender mounted flood lamp 1/2"-13, G5

4шт.

19

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

- rear fender wire, cab or fender mounted flood lamp

2шт.
