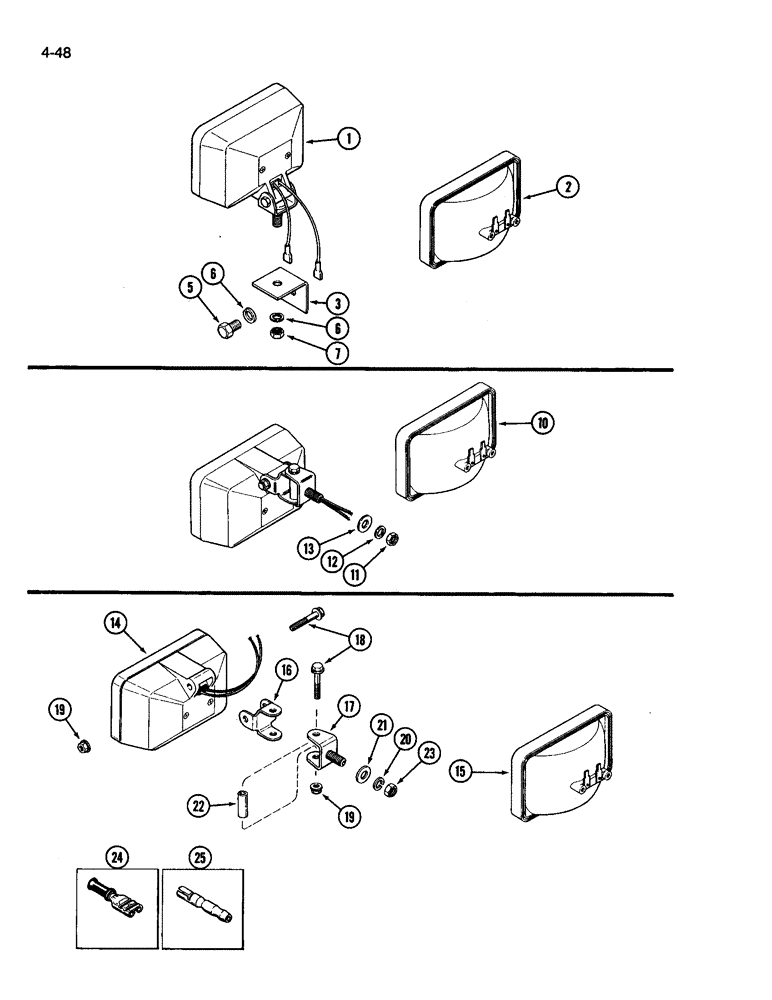

Запчасти Case IH 3394 (4-48) - FLOOD LAMP ATTACHMENT, UPPER REAR (04) - ELECTRICAL SYSTEMS

A166652

LAMP

ATTACHMENT - upper flood lamp (ROPS frame only) (Order components), Includes: Ref. 1 - 7

1шт.

1

A165347

LAMP

LIGHT - flood (For service order A177347)

1шт.

2

A48265

LAMP

- sealed halogen unit

1шт.

3

A166585

BRACKET

- mounting, flood lamp

1шт.

5

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

A165065

LAMP

LIGHT - flood (For service order A177347), Includes: Ref. 10 - 13

1шт.

10

A48265

LAMP

- sealed halogen unit

1шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

13

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

A177347

LAMP

KIT - lamp, service, Includes: Ref. 14 - 25

1шт.

14

NSS

NOT SOLD SEPARAT

LIGHT - flood, Includes: Ref. 15

1шт.

15

A48265

LAMP

- sealed halogen unit

1шт.

16

A52215

SUPPORT

BRACKET - mounting, lamp

1шт.

17

A52216

SUPPORT

BRACKET - mounting, lamp, includes stud

1шт.

18

A52217

BOLT

- hex flange, 5/16 NC x 2 inch

2шт.

19

A52218

NUT

- hex flange, 5/16 inch NC

2шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

21

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

1шт.

22

A52219

SPACER

- bracket

1шт.

23

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

24

A177332

SPADE TERMINAL,Female

TERMINAL - blade Female

2шт.

25

A52220

TERMINAL CONNECTOR,Male

TERMINAL - bullet Male

2шт.
