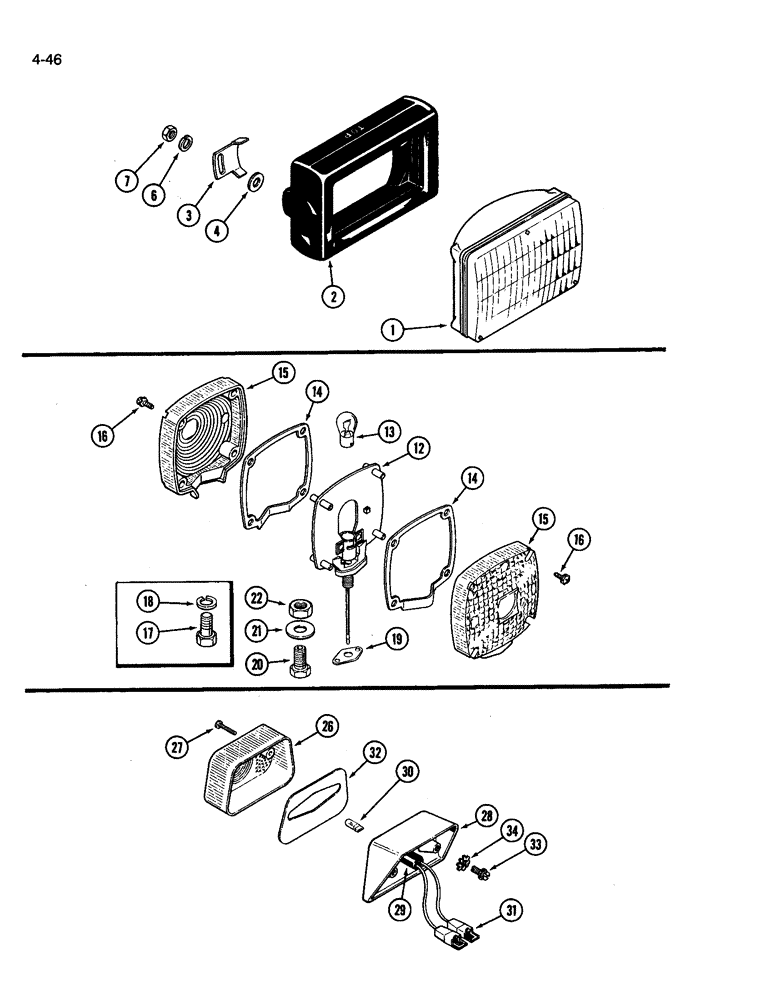

Запчасти Case IH 3394 (4-46) - HEAD LAMP, FLASHER LAMP, TAIL LAMP (04) - ELECTRICAL SYSTEMS

1

A139458

LAMP

LIGHT - head, sealed unit (No.4652),lamp

2шт.

2

A146354

MOUNTING PARTS

MOUNT - rubber, head lamp

2шт.

3

A146355

CLAMP

CLIP - mounting, head lamp

2шт.

4

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16"), Head lamp 1/4", SAE

4шт.

6

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Head lamp 1/4"

4шт.

7

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, head lamp

4шт.

A44201

LIGHT ASSY.

KIT - replacement, flasher light, Includes: Ref. 12 - 22

2шт.

12

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

13

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

14

A43731

GASKET

- sealing, lens

2шт.

A44202

KIT

- lens, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

LENS - lamp

2шт.

16

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - self-tapping, round Phillips, No. 8 NC x 5/8 inch

8шт.

17

424-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

- hex, 1/4 Nc x 1/2 inch, Grade 1

2шт.

18

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

F63435

GASKET

- lamp base

1шт.

20

A45118

STUD

- universal light mount

1шт.

21

425-118

NUT,1/2"-20, G5

- hex, 1/2 NF

1шт.

22

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 1/8 inch

1шт.

A143925

LAMP

LIGHT - tail, lamp, Includes: Ref. 26 - 34

2шт.

26

91929C1

LENS

- red, tail light

1шт.

27

263-50416

SELF-TAP SCREW,Slotted Pan Hd, #8 x 1"

SCREW - self-tapping, pan head slotted, No. 8-18 x 1 inch

2шт.

28

A47052

BASE

- light

1шт.

29

A47054

SOCKET/RECEPTACLE

SOCKET - tail light (Includes terminal)

1шт.

30

D71346

TAIL LAMP,12V

BULB - light, No. 168

1шт.

31

223-166

CONNECTOR, ELEC

CONNECTOR - female, 1 contact

2шт.

32

A47055

GASKET

- tail light

1шт.

33

281-34710

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 5/8"

SCREW - self-taping, hex washer head, 1/4 NC x 5/8 inch

4шт.

34

493-11026

LOCK WASHER,Ext-Int Tooth, 1/4"

4шт.
