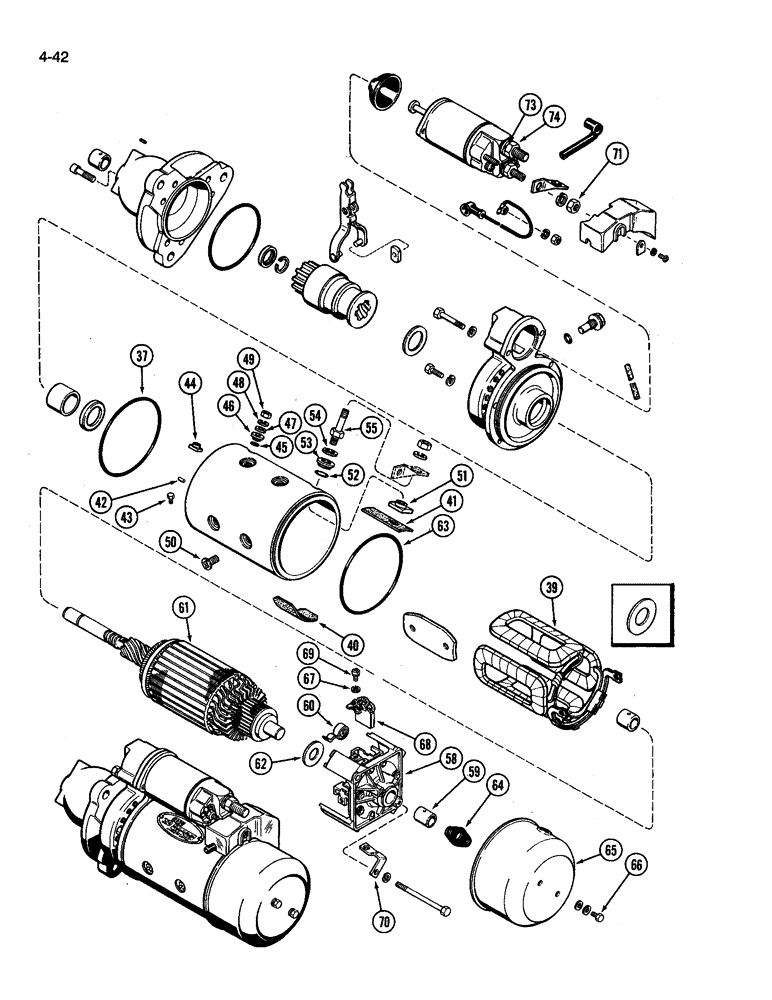

Запчасти Case IH 3394 (4-42) - STARTER ASSEMBLY - A162469 (CONTINUED) (04) - ELECTRICAL SYSTEMS

A162469

STARTING MOTOR

STARTER ASSEMBLY - engine, Nippondenso No. 028000-7430, Includes: Ref. 37 - 74 and 2 - 33 on Figure 4-40

1шт.

37

A47820

O-RING

- yoke to center bearing

1шт.

A47821

YOKE

ASSEMBLY - field coil, Includes: Ref. 40 - 55 and coil assembly

1шт.

A47822

COIL

ASSEMBLY - field

1шт.

40

A47833

INSULATOR

- field

1шт.

41

A47832

INSULATOR

- field

1шт.

42

A47824

PIN

- dowel, yoke

1шт.

43

814-5010

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

- hex, 5 - .8 x 10 mm

1шт.

44

A47825

BUSHING

- terminal insulating, inner

1шт.

45

A47826

RING

O-RING - terminal

1шт.

46

A47827

BUSHING

- terminal insulating, outer

1шт.

47

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

1шт.

48

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

2шт.

49

825-1405

NUT,M5, Cl 8

1шт.

50

A47823

SCREW,M10 x 1.5 x 1.5mm

- flat head, 10 mm - 1.50 x 20 mm

8шт.

51

A47829

BUSHING

- inner, terminal insulating

1шт.

52

A47830

RING

O-RING - terminal

1шт.

53

A47831

BUSHING

- outer, terminal insulating

1шт.

54

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

1шт.

55

A47828

BOLT

- terminal

1шт.

58

A47814

FRAME

ASSEMBLY - end, commutator, Includes: Ref. 60 and bushing

1шт.

A47784

BUSHING

- end frame

1шт.

60

A187823

SPRING

- brush (Replaces A47815)

4шт.

61

A47812

ARMATURE

ASSEMBLY - starter

1шт.

62

A47813

WASHER

- end, armature

1шт.

63

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

1шт.

64

A47835

GASKET

- end cover

1шт.

65

A47834

COVER

- end, starter

1шт.

66

814-5010

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

- hex, 5 - .8 x 10 mm

2шт.

67

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

68

A187794

BRUSH, COMMUTATOR

BRUSH ASSEMBLY - starter (Replaces A47817)

4шт.

69

A47816

SCREW,Pan Cross, M5 x 0.8 x 12mm

- slotted, 5 mm - 0.8 x 12 mm

4шт.

70

A47818

CONNECTOR, ELEC

CONNECTOR - brush

2шт.

71

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

1шт.

73

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

74

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.
