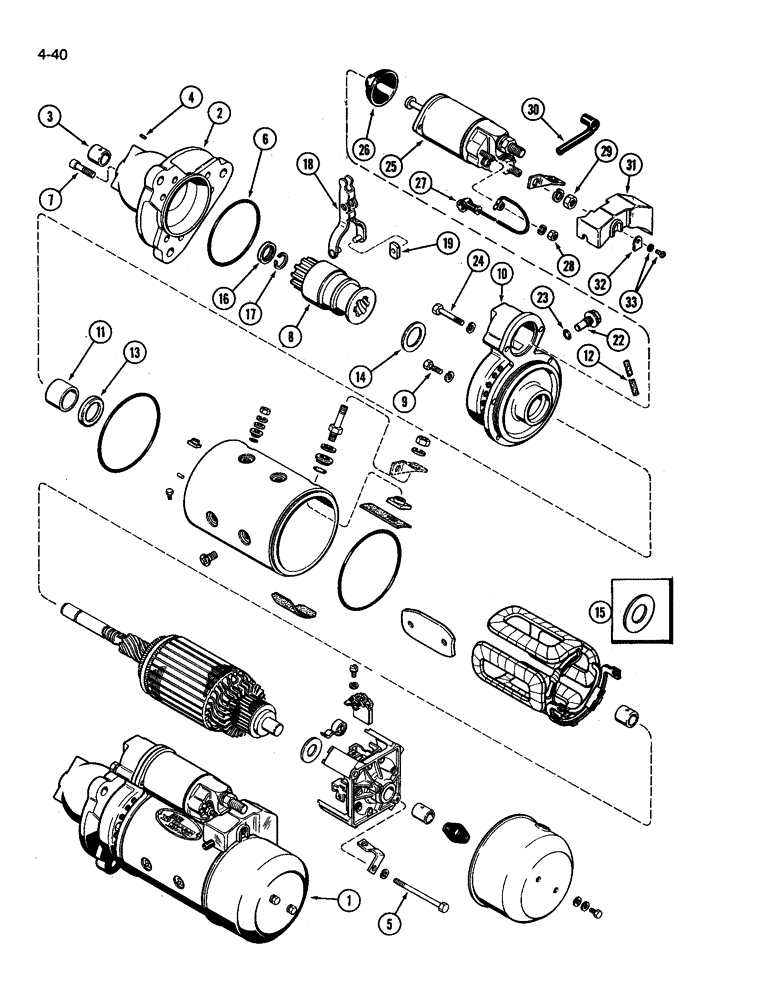

Запчасти Case IH 3394 (4-40) - STARTER ASSEMBLY - A162469 (04) - ELECTRICAL SYSTEMS

1

A162469

STARTING MOTOR

STARTER ASSEMBLY - engine, Nippondenso No. 028000-7430 (Order A187728), Includes: Ref. 2 - 33 and 37 - 74 on Figure 4-42

1шт.

115753A1 Cover for Starter and Starter Solenoid 04/12/96

1шт.

2

A47783

HOUSING

ASSEMBLY - drive, Includes: Ref. 41 and 42

1шт.

3

A47784

BUSHING

- drive housing

1шт.

4

A47785

PLUG

- housing cover

1шт.

5

A47819

BOLT

- hex through, M7 x 86 mm

2шт.

6

A47786

SEAL

O-RING - housing

1шт.

7

A47787

BOLT

- special, 8 mm - 1.25 x 31 mm

6шт.

8

A47788

CLUTCH

ASSEMBLY - drive

1шт.

9

A47809

BOLT

- hex, M7 x 20 mm

5шт.

10

A47805

HOUSING

- bearing, center, Includes: Ref. 11 - 13

1шт.

11

A47806

BUSHING

- bearing, center

1шт.

12

A47807

FELT

- bearing, oil

1шт.

13

A47808

OIL SEAL

- oil

1шт.

14

A47811

WASHER

- backup, oil seal

1шт.

15

A47810

WASHER

- brake

1шт.

16

107207C1

WASHER

COLLAR - stop, pinion

1шт.

17

A47790

RING, SNAP

RING - snap, collar to shaft retaining

1шт.

18

A47791

LEVER

ASSEMBLY - drive, starter, Includes: Ref. 19

1шт.

19

A47792

RING

- drive lever

2шт.

22

A47793

BOLT

- pivot

1шт.

23

A47794

RING,11 mm ID

O-RING - pivot bolt, drive lever

1шт.

24

A47795

BOLT

- hex, 6 mm - 42 mm

2шт.

25

A187795

SWITCH

ASSEMBLY - magnetic (Replaces A47796), Includes: Ref. 26 - 28

1шт.

A187795R

REMAN-SOLENOID

3394 (1/85-12/87)

1шт.

A187795C

CORE-SOLENOID

Return Number

1шт.

26

A47797

COVER

- switch, magnetic

1шт.

27

A47798

ELECTRICAL WIRE

WIRE - lead

1шт.

28

A47799

NUT

- hex special, No. 10-32

1шт.

29

A47800

CONNECTOR, ELEC

CONNECTOR - terminal

1шт.

30

A187793

COVER ASSY

TUBE - drain, switch (Replaces A47801)

1шт.

31

A47802

COVER

- terminal

1шт.

32

A47803

PLATE

- terminal cover

1шт.

33

A47804

SCREW,M4 x 0.7 x 0.7mm

- plate retaining, 4 x 9 mm

1шт.
