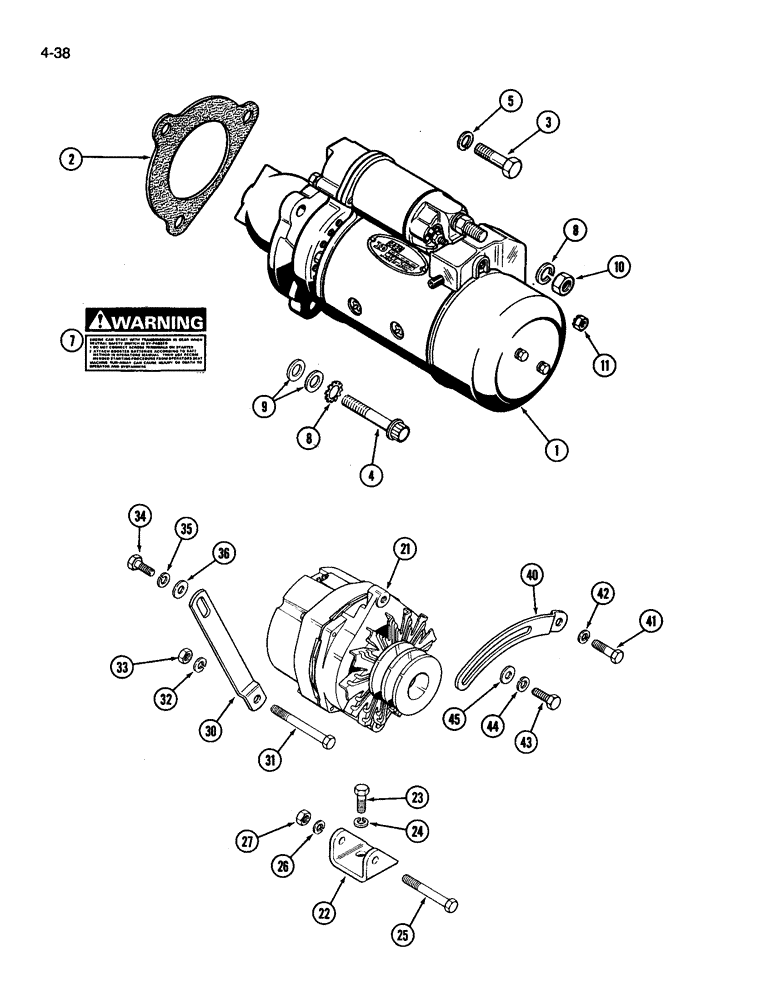

Запчасти Case IH 3394 (4-38) - STARTER MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER - engine (See Figure 4-40 and 4-42)

1шт.

87297380

REMAN-STARTER

Remanufactured Starter; For N.A. only

1шт.

87297381

CORE-STARTER

Return number - For N.A. only

1шт.

2

1536339C1

GASKET

- starting motor, mounting

1шт.

3

113-2437

PREV TORQUE BOLT,Locking, 1/2"-13 x 1 3/4", G5

BOLT - hex, 1/2 NC x 1-3/4 inch, starter mounting

2шт.

4

166-1007

12 PT SCREW,Flg, 1/2" - 13 x 3 1/4", Gr 8

SCREW - Ferry head, 1/2 NC x 3-1/4 inch, starter mounting

1шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Starter mounting 1/2"

2шт.

6

A34650

LOCK WASHER

- external lock,starter mounting

1шт.

7

321-3709

DECAL

- warning, starting, mounting

1шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Starter mounting 1/2"

1шт.

9

A75865

WASHER

- starter motor mounting

2шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Starter mounting 1/2"-13, G5

1шт.

11

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF, starter mounting

1шт.

21

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine (See Figure 4-44), mounting

1шт.

22

A160391

BRACKET

- alternator mounting

1шт.

23

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Alternator mounting

2шт.

24

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, , Alternator mounting 3/8"

2шт.

25

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

alternator mounting Hex, 3/8"-16 x 3", G5

1шт.

26

492-11038

LOCK WASHER,3/8"

alternator mounting 3/8"

1шт.

27

425-106

NUT,3/8"-16, Cl 5

Alternator mounting 3/8"-16, G5

1шт.

30

A163125

STRAP

- rear support, alternator mounting

1шт.

31

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch, alternator mounting

1шт.

32

492-11038

LOCK WASHER,3/8"

alternator mounting 3/8"

1шт.

33

425-106

NUT,3/8"-16, Cl 5

Alternator mounting 3/8"-16, G5

1шт.

34

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

Alternator Mounting Hex, M10 x 25, 8.8, Full Thd

1шт.

35

892-11010

LOCK WASHER,M10

Alternator mounting M10

1шт.

36

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), Alternator mounting 3/8"

1шт.

40

A163126

STRAP

- alternator adjusting, mounting

1шт.

41

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Alternator mounting Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

42

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, , Alternator mounting 3/8"

1шт.

43

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

Alternator Mounting Hex, M10 x 25, 8.8, Full Thd

1шт.

44

892-11010

LOCK WASHER,M10

Alternator mounting M10

1шт.

45

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), Alternator mounting 3/8"

1шт.
