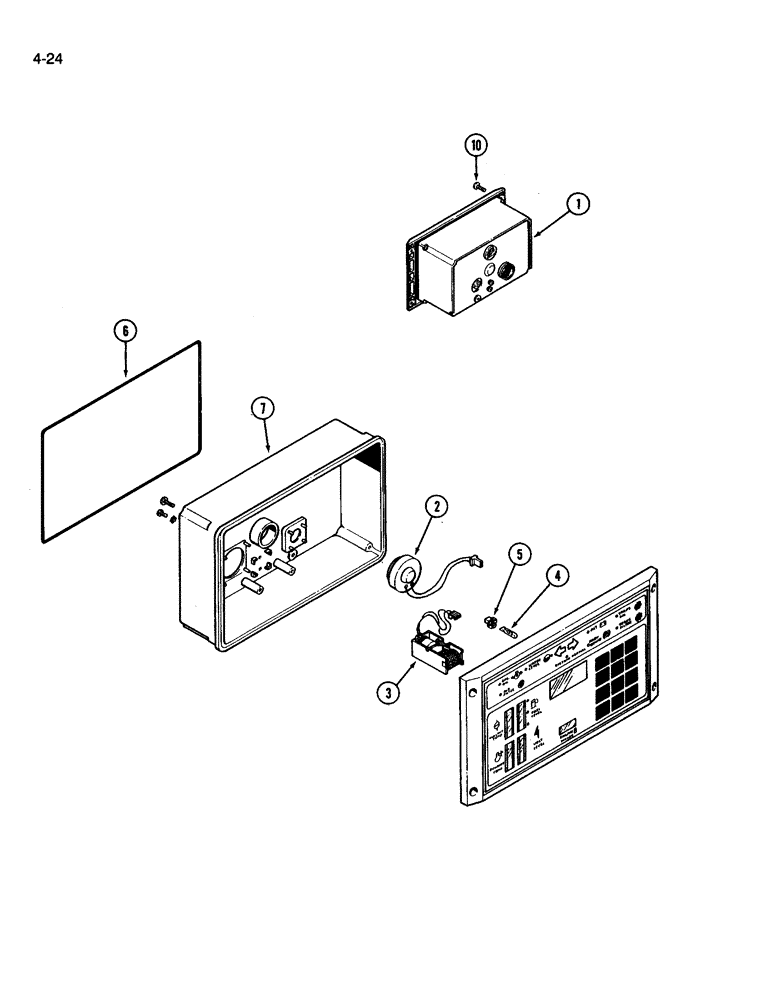

Запчасти Case IH 3394 (4-24) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

1

A187171

CLUSTER, INSTR.

CLUSTER, INSTRUMENT CLUSTER ASSEMBLY - instrument, new, Includes: Ref. 1 - 7

1шт.

1

1935094C1

REMAN-INSTR CLUSTER

Reman-Instrument Cluster Assembly - instrument, remanufactured, Includes: Ref. 1 - 7

1шт.

1

1935093C1

CORE-CLUSTER, INSTR

Core-Instrument Cluster Return Number - use this part number to return cluster for credit

1шт.

2

A48886

BUZZER

ALARM - instrument cluster

1шт.

3

A48887

GAUGE

COUNTER - instrument cluster

1шт.

4

A48888

BULB

BULB - instrument cluster

4шт.

5

A48889

LAMP SOCKET

SOCKET - bulb

4шт.

6

A48890

GASKET

GASKET - instrument cluster

1шт.

7

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - cluster

1шт.

10

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan Phillips, No. 10-16 x 3/4 "

4шт.

A186267

HARNESS

to eliminate radio interference

1шт.
