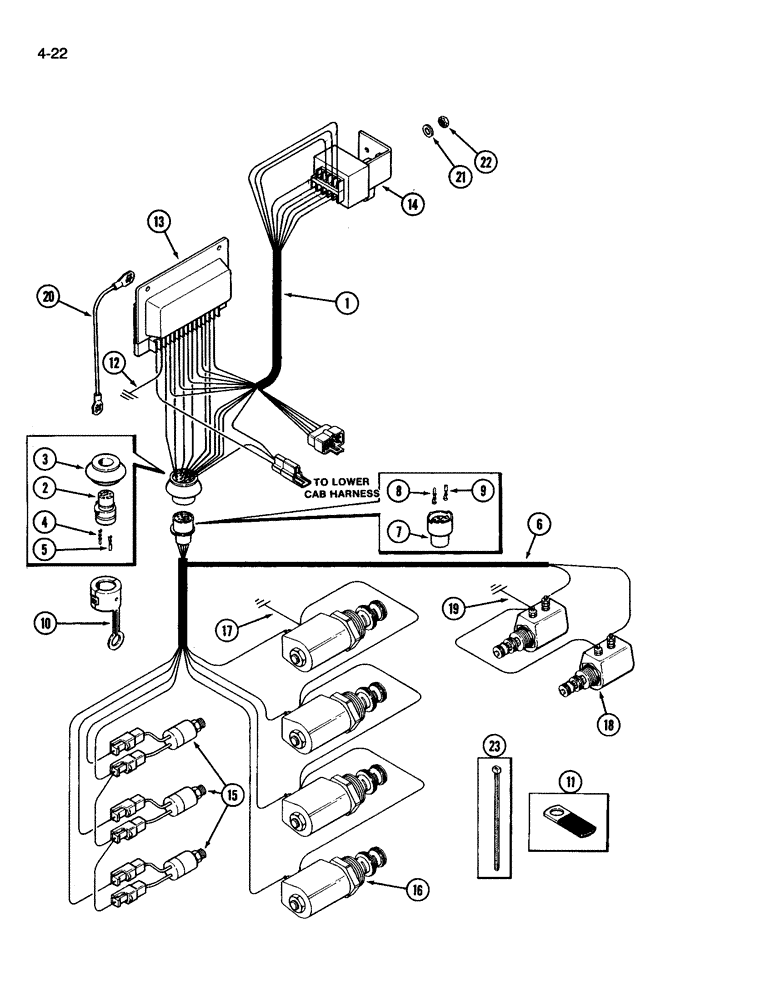

Запчасти Case IH 3394 (4-22) - ELECTRIC SHIFT HARNESS (04) - ELECTRICAL SYSTEMS

1

A177694

HARNESS

ASSEMBLY - electric shift (Inside of cab), Includes: Ref. 2 - 5

1шт.

2

A52279

- shift harness, Includes: Ref. 3

1шт.

3

A52280

GROMMET

- harness socket

1шт.

4

A52281

ELEC. TERMINAL PIN,14 - 18 SAE

TERMINAL - harness connector, male

5шт.

5

A52282

POWER SOCKET,14 - 18 SAE

TERMINAL - harness connector, female

5шт.

6

A163115

HARNESS

- electric shift (Outside of cab), Includes: Ref. 7 - 9

1шт.

7

A52283

SOCKET

- shift harness

1шт.

8

A52281

ELEC. TERMINAL PIN,14 - 18 SAE

TERMINAL - harness connector, male

5шт.

9

A52282

POWER SOCKET,14 - 18 SAE

TERMINAL - harness connector, female

5шт.

10

A163118

CLAMP

- connector, harness

1шт.

11

A37179

CLIP

- retainer, harness

1шт.

12

A163111

ELECTRICAL WIRE

WIRE - ground, relay, black

1шт.

13

A164734

BOARD

ASSEMBLY - relay (12 speed transmission)(Order A177703)

1шт.

12

A177703

RELAY

BOARD ASSEMBLY - relay (24 speed transmission)

1шт.

14

1964841C1

SWITCH

ASSEMBLY - range (24 speed transmission) (Replaces A180572)

1шт.

14

1964842C1

SWITCH

ASSEMBLY - range (12 speed transmission) (Replaces A180201)

1шт.

15

A156555

SWITCH

- pressure, transmission oil

3шт.

16

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid (See Figure 6-06)

4шт.

17

A156760

HARNESS

- solenoid ground

1шт.

18

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid (24 speed transmission) (See Figure 6-06)

2шт.

19

A156759

HARNESS

- solenoid ground (24 speed transmission)

1шт.

20

A176765

ELECTRICAL WIRE

WIRE - ground, black

1шт.

21

493-21039

LOCK WASHER,Int Tooth, 3/8"

WASHER - internal tooth lock, 3/8 inch

1шт.

22

A39888

NUT

- hex, special, 3/8-32

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
