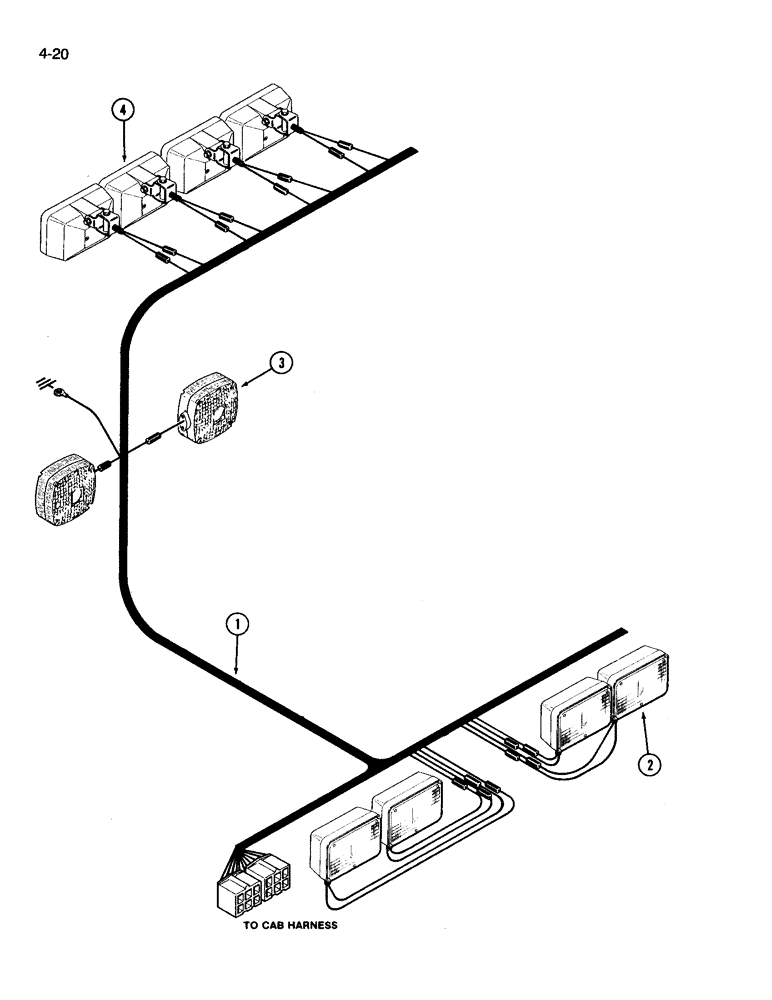

Запчасти Case IH 3394 (4-20) - FOUR POST ROPS HEADLINER WIRING (04) - ELECTRICAL SYSTEMS

1

F64805

HARNESS

ASSEMBLY - ROPS headliner wiring

1шт.

2

REF

INSTRUCTION

LAMP - front flood (See Figure 4-50)

1шт.

3

A44201

LIGHT ASSY.

LAMP - flasher (See Figure 4-46)

2шт.

4

REF

INSTRUCTION

LAMP - rear flood (See Figure 4-48)

1шт.
