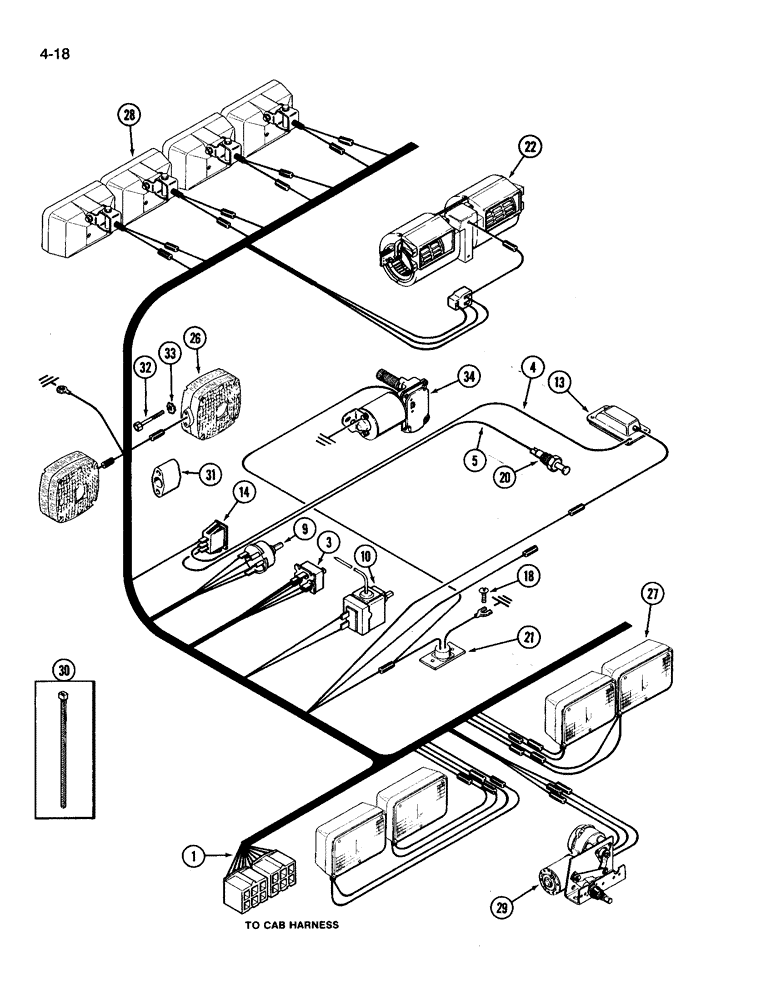

Запчасти Case IH 3394 (4-18) - CAB HEADLINER WIRING (04) - ELECTRICAL SYSTEMS

1

F66064

HARNESS

ASSEMBLY - headliner wiring

1шт.

3

REF

INSTRUCTION

SWITCH - blower (See Figure 9-108)

1шт.

4

F64731

CABLE PULLING GRIP

WIRE - dome light to switch, brown

1шт.

5

F64127

ELECTRICAL WIRE

WIRE - dome light switch to door light switch, white/black

1шт.

9

REF

INSTRUCTION

SWITCH - wiper (See Figure 9-108)

1шт.

10

REF

INSTRUCTION

SWITCH - air conditioning (See Figure 9-108)

1шт.

13

REF

INSTRUCTION

LAMP - dome (See Figure 9-094)

1шт.

14

REF

INSTRUCTION

SWITCH - dome lamp (See Figure 9-108)

1шт.

18

280-1658

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No. 10-16 x 1/2 inch

1шт.

20

F63895

SWITCH

- lamp, door opening

1шт.

21

REF

INSTRUCTION

LAMP - console (See Figure 9-094)

1шт.

22

REF

INSTRUCTION

BLOWER ASSEMBLY - air (See Figure 9-096)

1шт.

26

A44201

LIGHT ASSY.

LAMP - flasher (See Figure 4-46)

2шт.

27

REF

INSTRUCTION

LAMP - front flood (See Figure 4-50)

1шт.

28

REF

INSTRUCTION

LAMP - rear flood (See Figure 4-48)

1шт.

29

REF

INSTRUCTION

WIPER ASSEMBLY - windshield (See Figure 9-110 or 9-112)

1шт.

30

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

31

F64683

SPACER

- mounting

2шт.

32

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

4шт.

33

493-11026

LOCK WASHER,Ext-Int Tooth, 1/4"

4шт.

34

REF

INSTRUCTION

WIPER ASSEMBLY - rear window (See Figure 9-114)

1шт.
