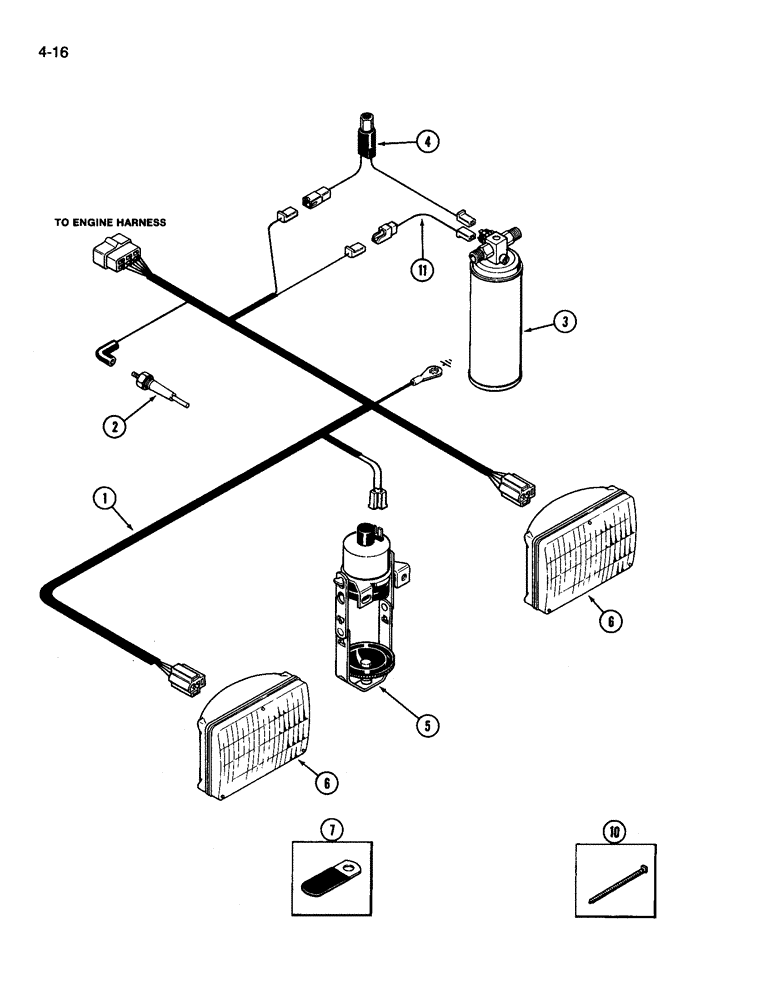

Запчасти Case IH 3394 (4-16) - FORWARD COMPONENT HARNESS (04) - ELECTRICAL SYSTEMS

1

A163110

HARNESS

- forward components

1шт.

2

A145513

SENSOR

- level, coolant

1шт.

3

REF

INSTRUCTION

RECEIVER-DRIER - air conditioning (See Figure 9-118)

1шт.

4

REF

INSTRUCTION

SWITCH - air conditioning high pressure cut out (See Figure 9-118)

1шт.

5

A143381

SOLENOID

ASSEMBLY - ether start (See Figure 2-14)

1шт.

6

A139458

LAMP

LIGHT - head, sealed unit (No.4652)(See Figure 4-46)

2шт.

7

A149624

CLIP

- wire

3шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

5шт.

11

A169863

ELECTRICAL WIRE

WIRE - low pressure switch

1шт.
