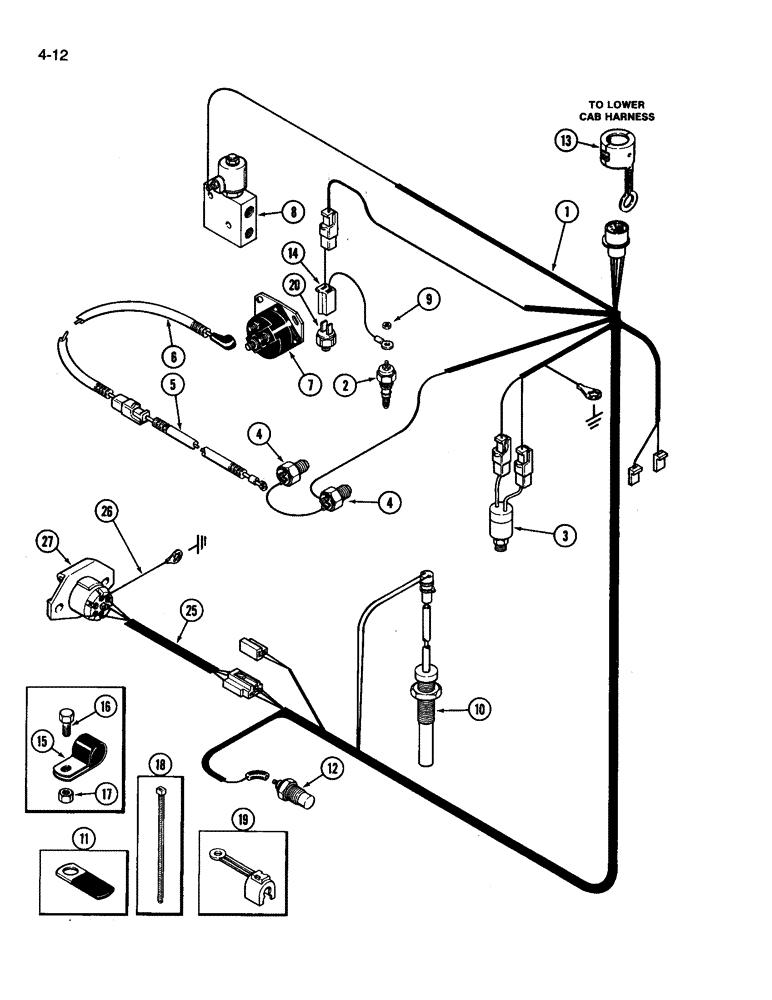

Запчасти Case IH 3394 (4-12) - TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS

1

A176764

HARNESS

- transmission

1шт.

2

A181991

SWITCH

- transmission filter pressure

1шт.

3

A162422

SWITCH

- transmission oil pressure

1шт.

4

A160237

SWITCH

- neutral start

2шт.

5

A169158

ELECTRICAL WIRE

WIRE - neutral start

1шт.

6

A169157

ELECTRICAL WIRE

WIRE - intermediate solenoid

1шт.

7

REF

INSTRUCTION

SWITCH - solenoid, ignition (See Figure 4-28 or 4-30)

1шт.

8

REF

INSTRUCTION

VALVE - differential lock (See Figure 7-06)

1шт.

9

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

10

A156902

SENSOR

ASSEMBLY - speed (See Figure 6-10)

1шт.

11

A38066

CLIP

- cable

1шт.

12

A154283

SWITCH

- transmission temperature

1шт.

13

A163118

CLAMP

- harness connecting

1шт.

14

A181552

ELECTRICAL WIRE

WIRE - transmission oil filter

1шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- harness

1шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

17

425-106

NUT,3/8"-16, Cl 5

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

19

A169696

CLAMP

- connector

2шт.

20

A166916

SWITCH

- filter temperature

1шт.

25

A177485

HARNESS

- auxiliary outlet

1шт.

26

A163117

ELECTRICAL WIRE

WIRE - ground, auxiliary outlet, harness

1шт.

27

121645C1

MULTIPOLE CONNECTOR,7 Pin

CONNECTOR - socket (See Figure 4-26), auxiliary outlet, harness

1шт.
