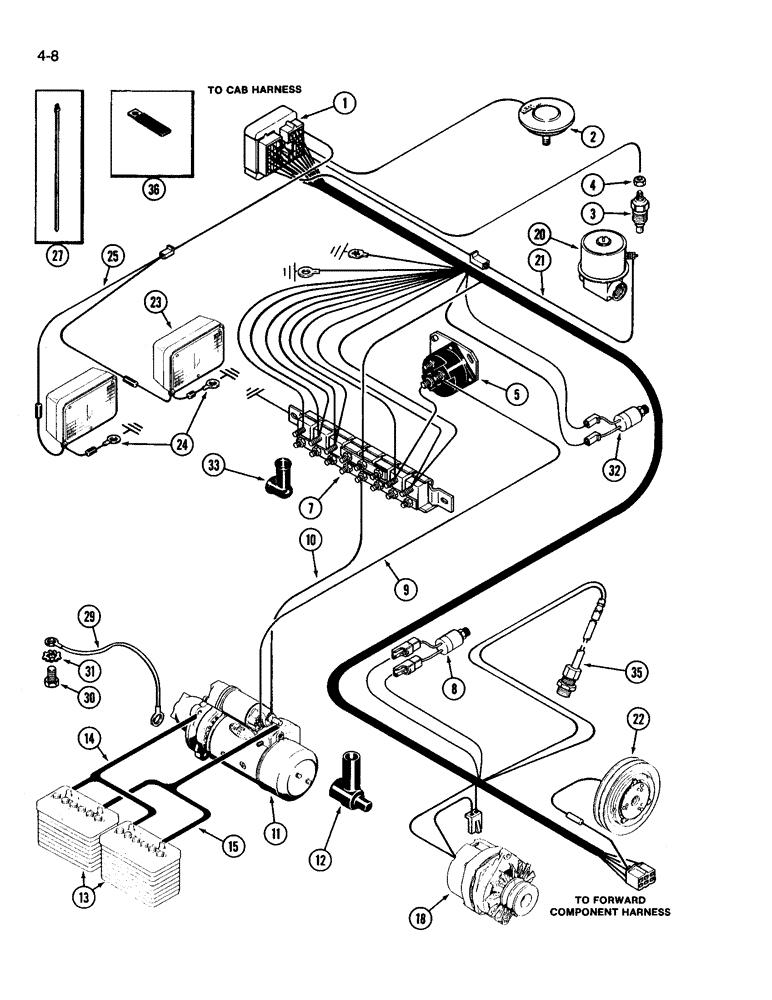

Запчасти Case IH 3394 (4-08) - ENGINE HARNESS, PRIOR TO P.I.N. 9944363 (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A176966
HARNESS
ASSEMBLY - engine
1шт.
2
3224405R91
RESTRICTION SWITCH
SWITCH - air cleaner restriction indicator (Replaces A154782) (See Figure 2-10)
1шт.
3
A176566
TRANSMITTER
SENDER - temperature, coolant
1шт.
4
193-1000
NUT,Keps, w/LW,#10-32
- hex, with external tooth lock washer, No. 10 NF
1шт.
5
A39079
SOLENOID
- ignition (See Figure 4-28 or 4-30)
1шт.
7
A165723
BREAKER
- circuit
1шт.
8
107125A1
SWITCH, PRESSURE
SWITCH - engine oil pressure, 8 PSI (Replaces A167996)
1шт.
9
A169555
ELECTRICAL WIRE
WIRE - starter to solenoid (Battery terminal)
1шт.
10
A163107
ELECTRICAL WIRE
WIRE - starter to circuit breaker
1шт.
11
REF
INSTRUCTION
STARTER - engine (See Figure 4-38)
1шт.
12
A181302
BOOT
- terminal
1шт.
13
REF
INSTRUCTION
BATTERY - 12 volt low maintenance (See Figure 4-32 or 4-34)
2шт.
14
REF
INSTRUCTION
CABLE - battery, negative (See Figure 4-32 or 4-34)
1шт.
15
REF
INSTRUCTION
CABLE - battery, positive (See Figure 4-32 or 4-34)
1шт.
18
REF
INSTRUCTION
ALTERNATOR - engine (See Figure 4-38)
1шт.
20
REF
INSTRUCTION
VALVE ASSEMBLY - shutoff (See Figure 4-52)
1шт.
21
A165227
ELECTRICAL WIRE
WIRE - shutoff, Serial Range: valve-harness
1шт.
22
REF
INSTRUCTION
CLUTCH ASSEMBLY - compressor (See Figure 9-116)
1шт.
23
REF
INSTRUCTION
LAMP - front flood, lower (See Figure 4-50)
2шт.
24
A147343
ELECTRICAL WIRE
WIRE - ground
2шт.
25
A147345
HARNESS
- lights, front flood
1шт.
27
L18337
CABLE TIE,9.95"-12.1" lg
STRAP - tie, 15 inch, nylon
2шт.
29
A186133
CABLE
- ground, cab (Replaces A165301)
1шт.
30
413-610
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5
1шт.
31
193-72
LOCK WASHER
- internal-external tooth lock, 3/8 inch
1шт.
32
A167644
PRESSURE SWITCH
SWITCH - oil pressure 40 PSI
1шт.
33
A21753
CAP
BOOT - terminal
2шт.
35
A186169
TRANSMITTER
SENSOR - magnetic, engine speed (Rplaces A162939) (See Figure 3-02)
1шт.
36
A149624
CLIP
- retaining
1шт.
Выбрано товаров: 29
