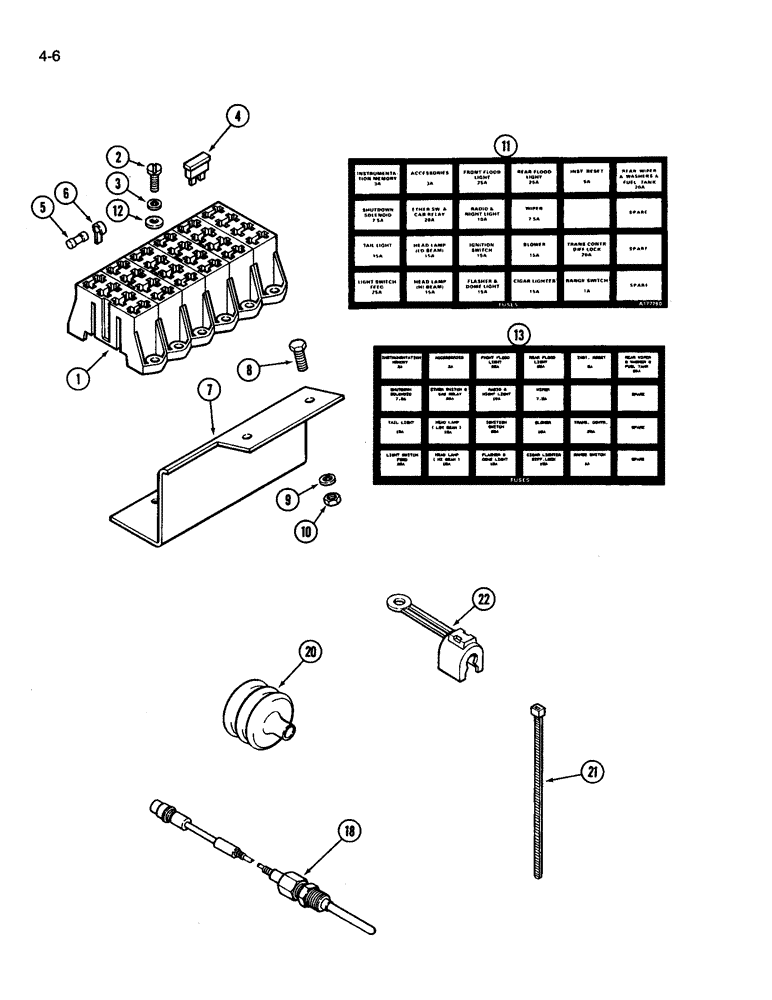

Запчасти Case IH 3394 (4-06) - FUSES AND FUSE HOLDER (04) - ELECTRICAL SYSTEMS

1

NSS

NOT SOLD SEPARAT

HOLDER - fuse (Part of harness, See Figure 4-02 or 4-04)

1шт.

2

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

3шт.

3

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

4

A149798

FUSE

- 5 ampere (Tan)

1шт.

4

A149796

FUSE

- 3 ampere (Vio1et)

2шт.

4

A149799

FUSE

- 7.5 ampere (Brown)

2шт.

4

A149800

FUSE,10 Amp

- 10 ampere (Red)

1шт.

4

A149801

FUSE,Lt Blue, 15 Amp

- 15 ampere (Light blue)

6шт.

4

A149802

FUSE

- 20 ampere (Yellow)

2шт.

4

A149803

FUSE,25 Amp

- 25 amperes (White)

4шт.

5

A163102

FUSE

- 1 ampere

1шт.

6

A163103

CLIP

- fuse mounting

1шт.

7

A163038

BRACKET

- mounting, fuse holder

1шт.

8

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

2шт.

9

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

11

A177790

DECAL

- fuse location, Serial Range: -9944363

1шт.

11

A176278

DECAL

- fuse location (French), Serial Range: -9944363

1шт.

12

495-31022

WASHER,#10

3шт.

13

A181300

DECAL

- fuse location, Start Serial: 9944363

1шт.

18

A162936

TRANSMITTER

THERMOCOUPLE - exhaust, pyrometer

1шт.

20

A145931

BELLOWS

BOOT - protective, thermocouple, pyrometer

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon, pyrometer, thermocouple

2шт.

22

A169696

CLAMP

- connector, pyrometer, thermocouple

1шт.
