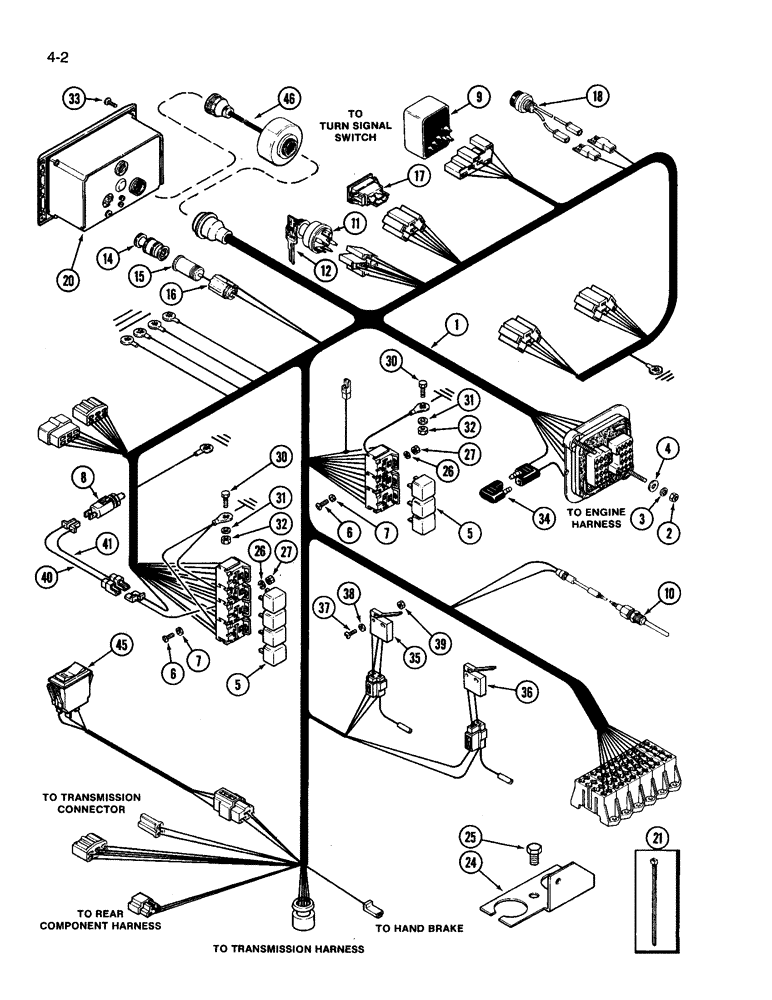

Запчасти Case IH 3394 (4-02) - CAB HARNESS, PRIOR TO P.I.N. 9944363 (04) - ELECTRICAL SYSTEMS

1

A177789

HARNESS

ASSEMBLY - cab, Inc. 6 of Fuse Block 243435C1

1шт.

2

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, plated

2шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

5

1983394C2

RELAY

- 30 amp (Replaces 146461C1)

1шт.

6

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan head Phillips, No. 10 NC x 3/4 inch

4шт.

7

495-31022

WASHER,#10

4шт.

8

A163160

SWITCH

- brake, differential lock (See Figure 7-02)

1шт.

9

1987422C1

SWITCH

- turn signal and flasher (See Figure 4-026)

1шт.

10

A162936

TRANSMITTER

THERMOCOUPLE - exhaust

1шт.

11

D134737

IGNITION SWITCH

SWITCH - ignition

1шт.

12

A77313

SET OF 2 KEYS

KEY - ignition (Set of2); Metal Without Padding

1шт.

14

A177447

LIGHTER, CIGARETTE

ELEMENT - pop out unit

1шт.

15

F63530

SOCKET/RECEPTACLE

SOCKET - cigar lighter

1шт.

16

F63738

CIGAR LIGHTER

SHELL - cigar lighter

1шт.

17

A163009

SWITCH

- lights

1шт.

#17 connector is p/n 245781c1

1шт.

18

A135520

SWITCH

- cold start

1шт.

20

REF

INSTRUCTION

CLUSTER ASSEMBLY - instrument (See Figure 4-24)

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

24

A177067

BRACKET

- harness retaining

1шт.

25

281-44910

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 5/8"

SCREW - self-tapping, hex washer head, 3/8 NC x 5/8 inch

1шт.

26

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

27

225-14110

NUT,#10-24

4шт.

30

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

2шт.

31

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

32

193-1006

NUT,Keps, w/LW, 1/4"-20

- hex, with external tooth lock washer, 1/4 inch NC

2шт.

33

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan Phillips, No. 10-16 x 3/4 "

4шт.

34

A147976

DIODE

- lamp check

1шт.

35

1343288C1

LIMIT SWITCH

SWITCH ASSEMBLY - micro

1шт.

36

1343289C1

IGNITION SWITCH

SWITCH ASSEMBLY - micro

1шт.

37

470-10612

SCREW,Slotted Pan Hd, #6-32 x 3/4"

- machine, pan head slotted, No. 6 NC x 1 inch

4шт.

38

195-507

WASHER,#6

- flat, 5/32 x 3/8 x 3/64 inch

4шт.

39

131-150

LOCK NUT,#6-32, GA

NUT - hex, self-locking, No. 10 NC

4шт.

40

A169823

ELECTRICAL WIRE

WIRE - differential lock switch, black/light blue

1шт.

41

A169863

ELECTRICAL WIRE

WIRE - differential lock switch, ground, black

1шт.

45

A176685

SWITCH

- differential lock, with harness

1шт.

46

A186267

HARNESS

FILTER - frequency interference

1шт.
