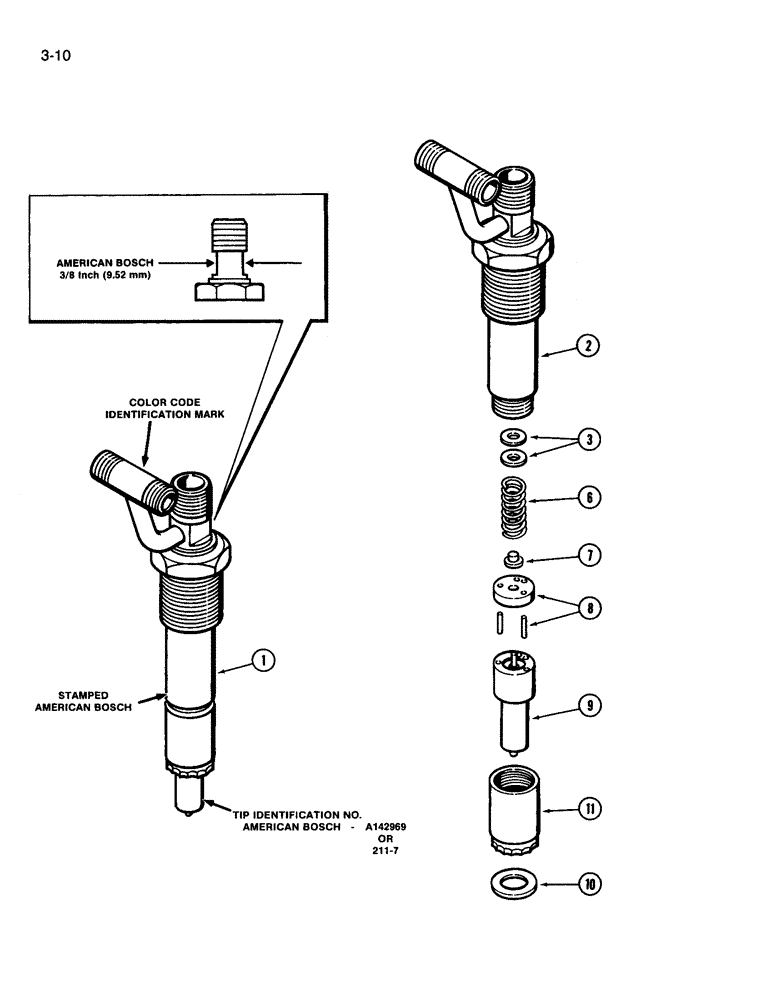

Запчасти Case IH 3394 (3-10) - FUEL INJECTION NOZZLE, 504BDT DIESEL ENGINE, RED COLOR CODE IDENTIFICATION (03) - FUEL SYSTEM

A156327

NOZZLE CAP

NOZZLE ASSEMBLY - fuel injection, Includes: Ref. 1 - 11 and 15 - 24 on Figure 3-12

6шт.

A156327R

REMAN-INJECT NOZZLE

3394 (1/85-12/87)

6шт.

A156327C

CORE-NOZZLE, INJECT

Return number

1шт.

1

NSS

NOT SOLD SEPARAT

NOZZLE ASSEMBLY - fuel injection, American Bosch No. KT7834-6 (Order A156327), Includes: Ref. 2 - 11

1шт.

American Bosch and Robert Bosch injector nozzle components are not interchangeable.

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A156327)

1шт.

A44860

SHIM

KIT - shim, nozzle opening pressure (One kit required to repair six nozzles), Includes: Ref. 3

1шт.

3

680415C1

SPACER

SHIM - nozzle (80 in kit) 0.002 inch

1шт.

3

680416C1

SPACER

SHIM - nozzle (50 in kit) 0.007 inch

1шт.

3

680418C1

SPACER

SHIM - nozzle (50 in kit) 0.010 inch

1шт.

3

680419C1

SPACER

SHIM - nozzle (20 in kit) 0.025 inch

1шт.

3

680414C1

SPACER

SHIM - nozzle (6 in kit) 0.062 inch

1шт.

6

A44864

SPRING

- nozzle pressure

1шт.

7

A44863

SEAT

- nozzle pressure spring

1шт.

8

A44862

VALVE

STOP - nozzle with pin

1шт.

9

A142969

NOZZLE CAP

TIP ASSEMBLY - nozzle injector

1шт.

10

1342829C1

GASKET

- injection nozzle tip

1шт.

11

A44861

NUT

NUT - nozzle end

1шт.
