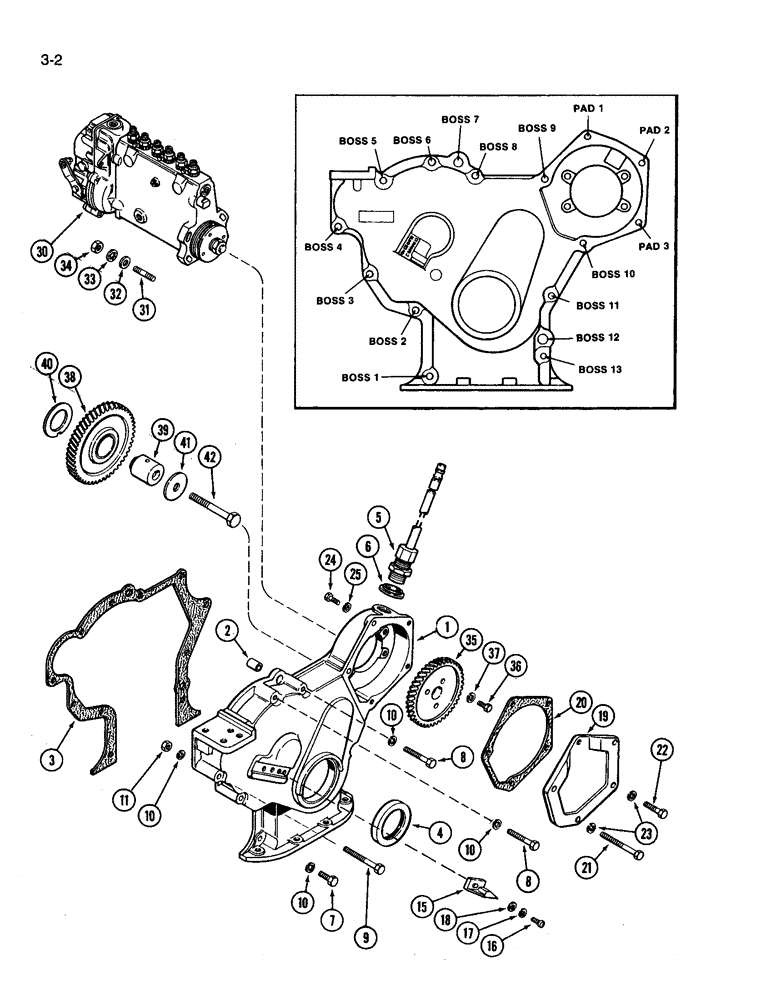

Запчасти Case IH 3394 (3-02) - TIMING GEAR COVER AND INJECTION PUMP DRIVE, 504BDT DIESEL ENGINE (03) - FUEL SYSTEM

1

A166142

COVER

ASSEMBLY - timing gear, Includes: Ref. 2

1шт.

2

A58611

PIN

- dowel

1шт.

3

1981265C1

GASKET

- timing gear cover (Replaces A58612)

1шт.

4

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, crankshaft front

1шт.

5

A186169

TRANSMITTER

SENSOR - magnetic, engine speed (Replaces A162939)

1шт.

6

A163366

SEAL

- magnetic sensor

1шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Boss 1, 2, 11 and 13)

4шт.

8

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch (Boss 3, 6 and 8)

3шт.

9

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch (Boss 4 and 5)

2шт.

10

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

11

425-106

NUT,3/8"-16, Cl 5

(Boss 4 and 5) 3/8"-16, G5

2шт.

15

A63911

INDICATOR

POINTER - timing

1шт.

16

169-119

SCREW,Sl Fil Hd, #12 - 24 x 3/4"

- machine, Fillister head, No. 12 NC x 3/4 inch

1шт.

17

192-108

LOCK WASHER,#12

WASHER - light lock, No. 12

1шт.

18

195-516

WASHER,#12

- flat, 1/4 x 9/16 x 1/16 inch

1шт.

19

A61053

COVER

- pump drive gear

1шт.

20

1342756C1

GASKET

- pump drive cover (Replaces A58615)

1шт.

21

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch (Boss 9 and 10)

2шт.

22

A151921

BOLT

- hex, drilled, 3/8 NC x 1-3/4 inch (Pad 2 and 3)

2шт.

23

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

24

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Pad 1)

1шт.

25

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

30

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 3-04)

1шт.

31

A59077

STUD

- injection pump mounting

3шт.

31

A142092

STUD

- drilled, injection pump mounting

1шт.

32

A57470

WASHER

- injection pump mounting

4шт.

33

93-21039

LOCK WASHER,Int Tooth, 3/8"

WASHER - internal tooth lock, 3/8 inch

4шт.

34

25-126

SLOTTED NUT,3/8"-16, G5

NUT - hex jam, 3/8 inch NC

1шт.

34

425-106

NUT,3/8"-16, Cl 5

3шт.

35

A58693

GEAR

- injection pump drive

1шт.

36

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

37

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

38

A62542

GEAR

ASSEMBLY - idler with bushing

1шт.

39

A58690

SHAFT

- idler gear

1шт.

40

A58691

WASHER

- thrust

1шт.

41

A58692

PLATE

- thrust

1шт.

42

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

- hex, 1/2 NC x 4-1/4 inch

2шт.
