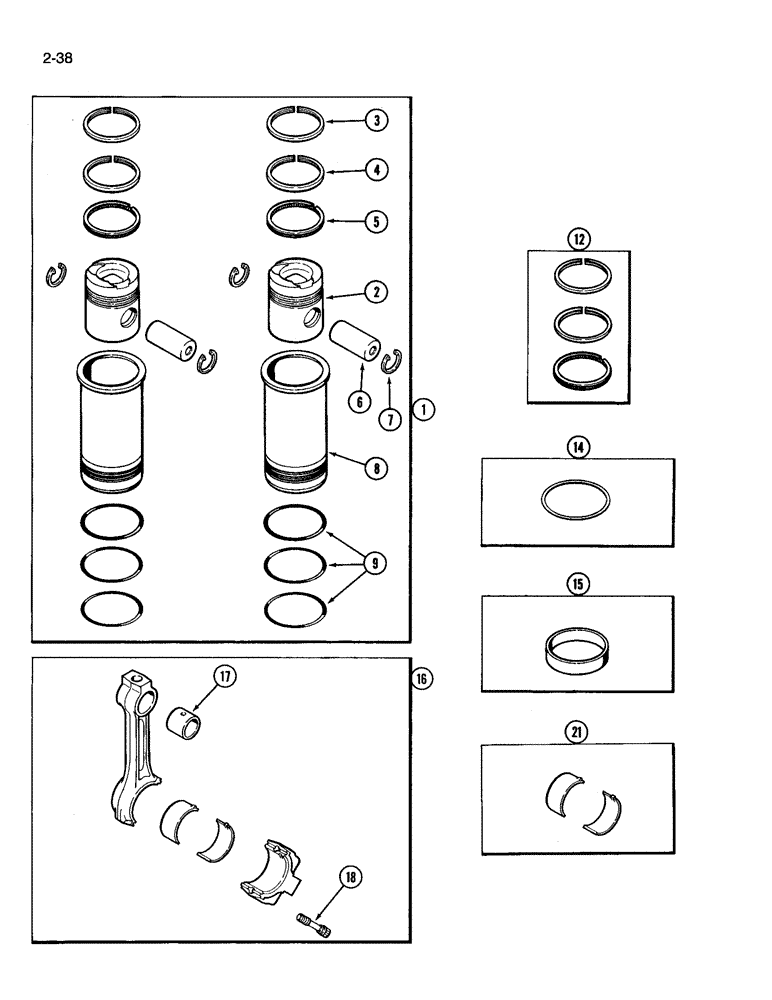

Запчасти Case IH 3394 (2-38) - PISTON AND SLEEVE ASSEMBLY, 504BDT DIESEL ENGINE (02) - ENGINE

1

A151067

PISTON

AND SLEEVE KIT - engine (Set of 2), Includes: Ref. 2 - 9

3шт.

2

A152485

PISTON

- cylinder, 4-5/8 inch bore

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, top groove (Order Ref 12)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, second groove (Order Ref 12)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, third groove (Order Ref 12)

2шт.

6

A58584

PIN,45.71mm OD x 98.17mm L

- piston

2шт.

7

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, , piston pin 1.812", Int, #181

4шт.

8

A153638

SLEEVE CYLINDER

SLEEVE - piston

2шт.

9

238-7248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 7, 75 Duro

Sleeve (Replaces A144667) -248, Cl 7, 4.734" ID x .139" Thk

6шт.

12

A44054

RING

KIT - piston re-ring

6шт.

14

A148554

SHIM

- sleeve, 0.005 inch

1шт.

14

A148553

SHIM

- sleeve, 0.010 inch

1шт.

15

A150327

BUSHING,129.06mm ID x 133.49mm OD x 30.15mm L

- sleeve (Repairs only)

1шт.

16

A65032

ROD

ASSEMBLY - connecting, (New), Includes: Ref. 17 and 18

6шт.

16

AR65032

REMAN-CONNECTING ROD

Rod Assembly - connecting, (Remanufactured), Includes: Ref. 17 and 18

6шт.

16

AC65032

CORE-ROD CONNECTING

Return Part Number - use this part number to return connecting rod core for credit

6шт.

17

A58580

BUSHING,45.3mm ID x 50.46mm OD x 45.47mm L

- piston pin

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - cap

2шт.

21

A41758

BEARING LINER

INSERT - rod bearing, standard (Set of 2)

6шт.

21

A41899

BEARING LINER

INSERT - rod bearing, 0.002 inch undersize (Set of 2)

6шт.

21

A41900

BEARING LINER

INSERT - rod bearing, 0.010 inch undersize (Set of 2)

6шт.

21

A41901

BEARING LINER

INSERT - rod bearing, 0.020 inch undersize (Set of 2)

6шт.

21

A41902

BEARING LINER

INSERT - rod bearing, 0.030 inch undersize (Set of 2)

6шт.
