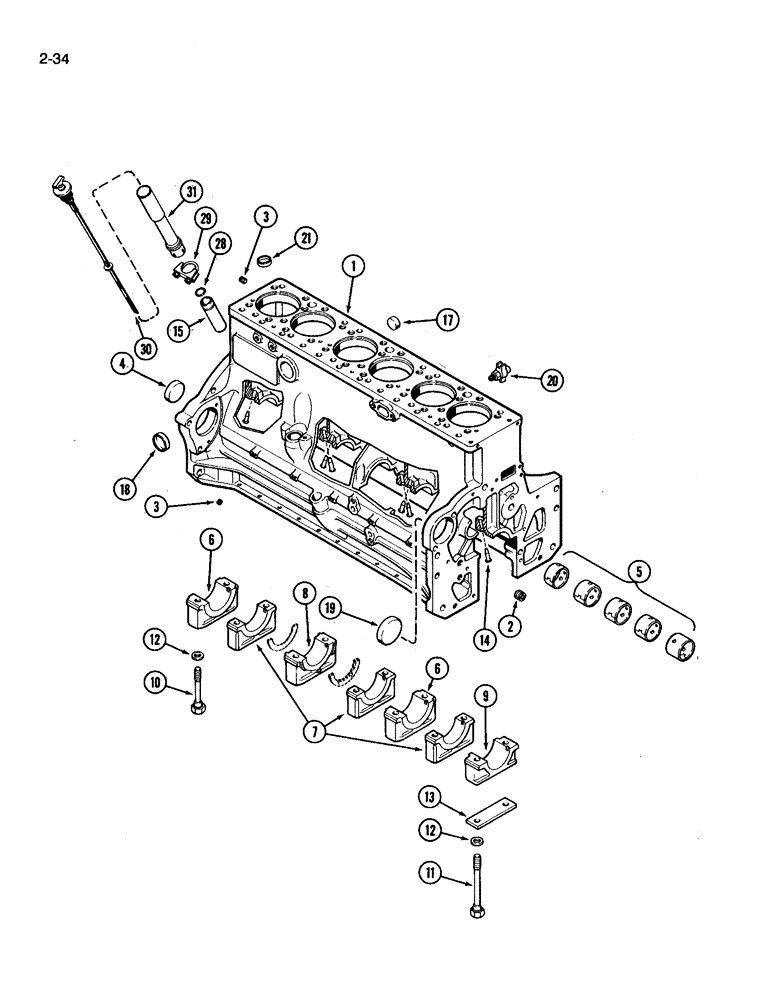

Запчасти Case IH 3394 (2-34) - CYLINDER BLOCK, 504BDT DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
A182080
SKELETON ENGINE
BLOCK ASSEMBLY - short (Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, camshaft, timing gears and lifters, Includes: Ref. 1 - 31
1шт.
AR77833
REMAN-BASIC ENGINE
Remanufactured
1шт.
AC77833
CORE-BASIC ENGINE
Return Number
1шт.
1
A182079
SKELETON ENGINE
BLOCK ASSEMBLY - stripped, Includes: Ref. 2 - 20
1шт.
2
217-436
PLUG,Hex Soc, 3/8" - 18 NPTF
PLUG - hex socket, 3/8 inch PT
4шт.
3
221-849
PLUG,Hex Soc, 1/8"-27
PLUG - hex socket, 1/8 inch PT
6шт.
4
A24361
PLUG
PLUG - cup type, 2-3/8" diameter
1шт.
5
REF
INSTRUCTION
BUSHING - camshaft (See Figure 2-33)
1шт.
6
A185063
CAP
CAP - main bearing, wide
2шт.
7
A154397
BEARING CAP
CAP - main bearing, narrow
3шт.
8
A185064
CAP
CAP - main bearing - thrust
1шт.
9
A154396
BEARING CAP
CAP - main bearing, front
1шт.
10
A66948
STEP BOLT
BOLT - hex, 5/8 NC x 4-15/16 inch, special
12шт.
11
A66949
STEP BOLT
BOLT - hex, 5/8 NC x 7-3/16 inch, special
2шт.
12
A58629
BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk
WASHER - flat, hardened
14шт.
13
A58859
SHIM,.005" Thk
SHIM, , Oil pump to brg. cap .005" Thk
1шт.
14
A63903
NOZZLE CAP
NOZZLE - piston cooling
6шт.
15
A34540
TUBE
TUBE - oil filler and dipstick
1шт.
17
A58568
PLUG,Cup, 1 3/8", Stainless
PLUG - cup type, 1-3/8" diameter
3шт.
18
20840R1
PLUG,Cup, 2", Stainless
PLUG - cup type, 2" diameter
1шт.
19
A58750
PLUG,Cup, 3 1/4", Stainless
PLUG - cup, 3-1/4 inch diameter
1шт.
20
217-103
COCK, DRAIN
VALVE - drain, 1/4 inch PT
1шт.
21
A58568
PLUG,Cup, 1 3/8", Stainless
PLUG - cup, 1-3/8 inch diameter
1шт.
28
238-5216
O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro
O-RING, -216, 70 Duro, 1.109" ID x .139" Thk
1шт.
29
L47766
CLAMP
CLAMP - extension tube
1шт.
30
A154767
DIPSTICK
DIPSTICK ASSEMBLY - oil level
1шт.
31
A153835
TUBE
TUBE - extension, oil filler
1шт.
Выбрано товаров: 27
