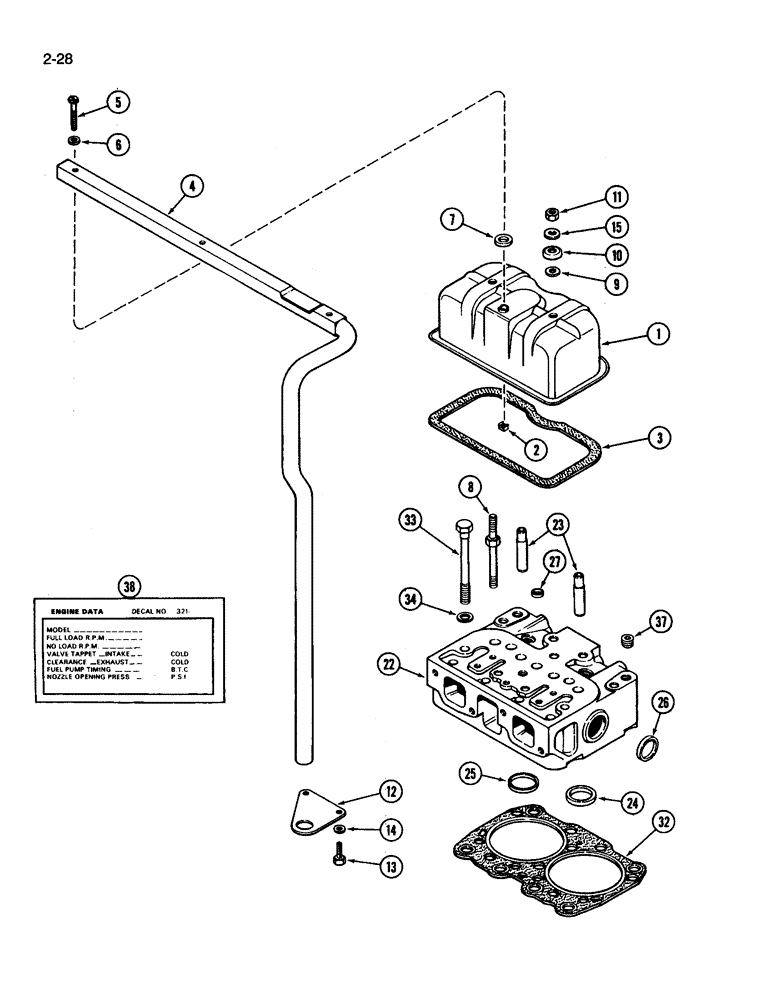

Запчасти Case IH 3394 (2-28) - CYLINDER HEAD AND COVER, 504BDT DIESEL ENGINE (02) - ENGINE

1

A166170

COVER

COVER ASSEMBLY - cylinder head, Includes: Ref. 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - speed grip, 1/4 inch NC

1шт.

3

A156960

CYLINDER HEAD GASKET,3.05mm Thk

GASKET -, Serial Range: cover-head

3шт.

4

A166157

TUBE

SPARE PART TUBE - breather

1шт.

5

182-587

SCREW,Cross Pan Hd, 1/4"-20 x 2 1/2"

SCREW - pan head machine, 1/4 NC x 2-1/2 inch

3шт.

6

A166102

WASHER,6.45mm ID x 12.7mm OD x 0.81mm Thk

GASKET - breather tube bolt

3шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET -, Serial Range: tube-cover

3шт.

8

A67121

STUD

STUD -, Serial Range: cover-head

6шт.

9

A142098

GROMMET

GROMMET - cover stud

6шт.

10

A156097

WASHER,11.94mm ID x 31.22mm OD x 1.32mm Thk

WASHER - dished, cover nut

6шт.

11

425-107

NUT,7/16"-14, G5

NUT - hex, 7/16 inch NC

6шт.

12

A59054

BRACKET

BRACKET - breather tube

1шт.

13

193-527

WASHER,Hex, 3/8" - 16 x 1 1/4"

BOLT - hex, 3/8 NC x 1-1/4 inch

2шт.

14

95-11041

WASHER,3/8"

WASHER, , flat (13/32 x 13/16 x 1/16") 3/8"

6шт.

15

495-11047

WASHER,7/16", SAE

WASHER, (15/32 x 59/64 x 1/16") 7/16", SAE

6шт.

22

A138261

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, Includes: Ref. 23 - 27

3шт.

22

AR152265

REMAN-CYLINDER HEAD

Cylinder Head

3шт.

22

AC152265

CORE-CYLINDER HEAD

Return Number

3шт.

23

A41783

GUIDE

GUIDE - valve stem, intake and exhaust (Set of 2)

2шт.

ref. 23 - A41783 guide, this is not a set of two, but a single guide.

1шт.

24

A66192

INSERT

INSERT - exhaust valve seat

2шт.

25

A66191

INSERT

INSERT - intake valve seat

2шт.

26

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - cup type, 1-5/8" diameter

2шт.

32

1349078C1

CYLINDER HEAD GASKET

GASKET - cylinder head (With fire rings)

3шт.

33

A76638

BOLT

BOLT - hex, 5/8 NC x 6 inch

30шт.

34

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - flat, hardened

30шт.

37

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

PLUG - hex socket, 3/8 inch PT

6шт.

38

321-3972

DECAL

DECAL - engine data

1шт.
