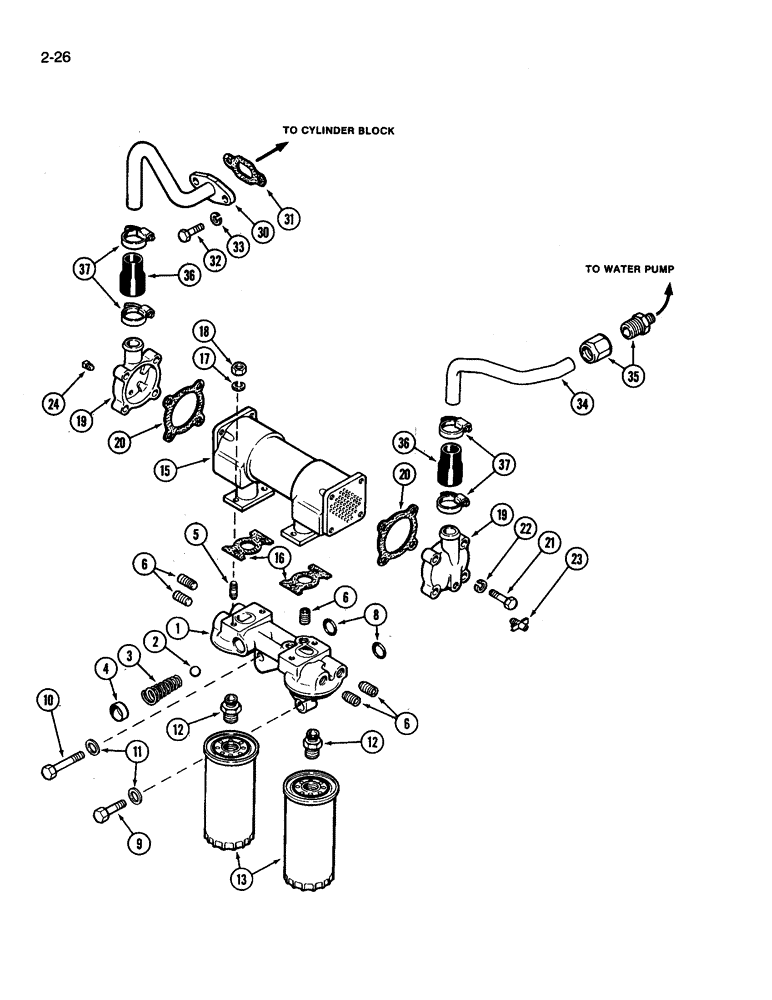

Запчасти Case IH 3394 (2-26) - OIL FILTER AND HEAT EXCHANGER, 504BDT DIESEL ENGINE (02) - ENGINE

1

A154541

BASE

ASSEMBLY - oil filter, Includes: Ref. 2 - 6

1шт.

2

211-219

BALL

- 3/4 inch, grade 25, chrome alloy steel

1шт.

3

A146897

SPRING

- relief

1шт.

4

23623R1

PLUG,Cup, 1 1/4", Stainless

- cup, 1-1/4 inch diameter

1шт.

5

G102128

BOLT

- mounting (Replaces G11024, G11204 )

4шт.

6

221-844

PLUG,Hex Soc, 1/2"-14

- square socket, 1/2 inch PT

5шт.

8

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- filter head

2шт.

9

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

10

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

11

95-11053

WASHER,1/2"

- flat, 17/32 x 1-1/16 x 3/32 inch

2шт.

12

A63916

ADAPTER

-, Serial Range: filter-base

2шт.

13

NSS

NOT SOLD SEPARAT

ELEMENT - filter, oil 6-7/8 inch long (J I Case installed) (Order A44081)

2шт.

13

A44081

ENGINE OIL FILTER

ELEMENT - filter, oil 8-5/8 inch long (Service only)

2шт.

15

A75295

OIL COOLER

EXCHANGER - heat, oil

1шт.

16

1342768C1

GASKET

- heat exchanger to filter base (Replaces A65359)

2шт.

17

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

18

425-106

NUT,3/8"-16, Cl 5

4шт.

19

A64349

HOOD

PLATE - end, heat exchanger

2шт.

20

1981245C1

GASKET

- end plate (Replaces A63920)

2шт.

21

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

8шт.

22

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

23

217-107

VALVE

- 1/8 inch PT

1шт.

24

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

1шт.

30

A75296

TUBE

- heat, Serial Range: exchanger-block

1шт.

31

A58670

GASKET

-, Serial Range: tube-block

1шт.

32

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

34

A166083

TUBE

- heat exchanger to water pump

1шт.

35

222-2020

FITTING

CONNECTOR - tube,3/4 inch PT

1шт.

36

A64353

HOSE

- tube to heat exchanger

2шт.

37

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

4шт.
