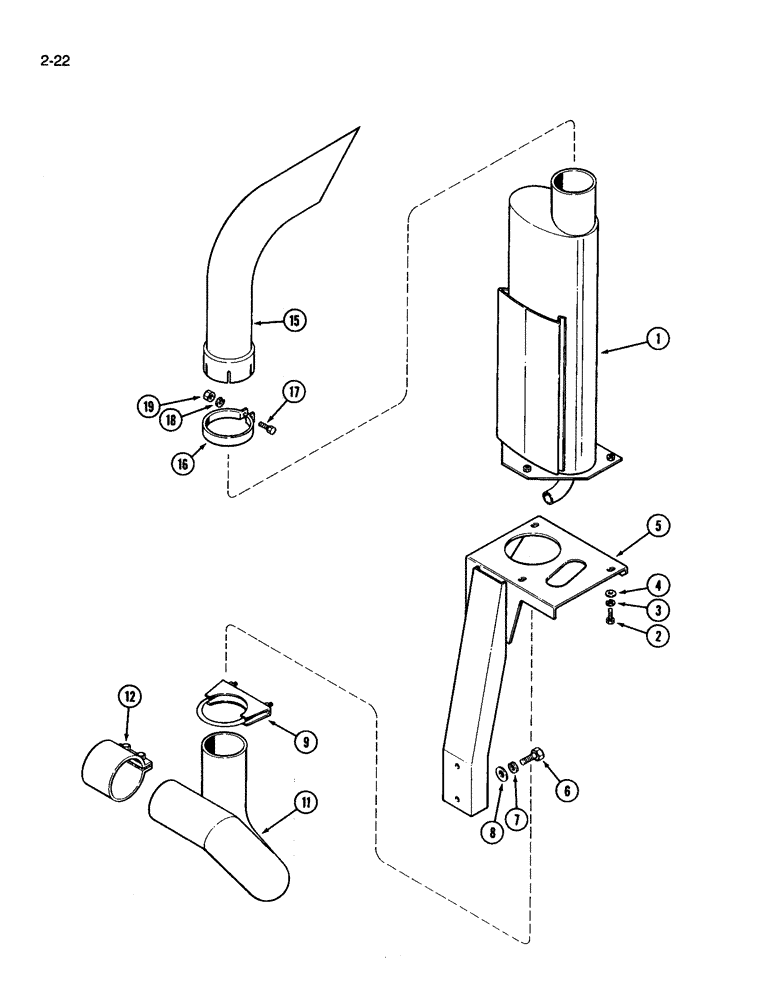

Запчасти Case IH 3394 (2-22) - EXHAUST SYSTEM (02) - ENGINE

1

A181372

MUFFLER

- aspirated (Replaces A166448)

1шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

3

492-11038

LOCK WASHER,3/8"

3шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

5

A167634

SUPPORT

- muffler

1шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

8

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

9

A162896

CLAMP

- band, muffler to turbocharger elbow

1шт.

11

A181107

PIPE, EXHAUST SYSTEM

PIPE - exhaust, Serial Range: turbocharger-muffler

1шт.

12

A149249

ASSEMBLY

SEAL - clamp, exhaust, Serial Range: pipe-turbocharger

1шт.

15

A180204

TUBE

EXTENSION - muffler 27 inches long

1шт.

15

A185710

EXTENSION

- muffler 33-3/8 inches long

1шт.

16

A162895

CLAMP

- extension

1шт.

17

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

18

492-11038

LOCK WASHER,3/8"

1шт.

19

129-770

NUT,3/8"-16, G5

- hex, 3/8 inch NC

1шт.
