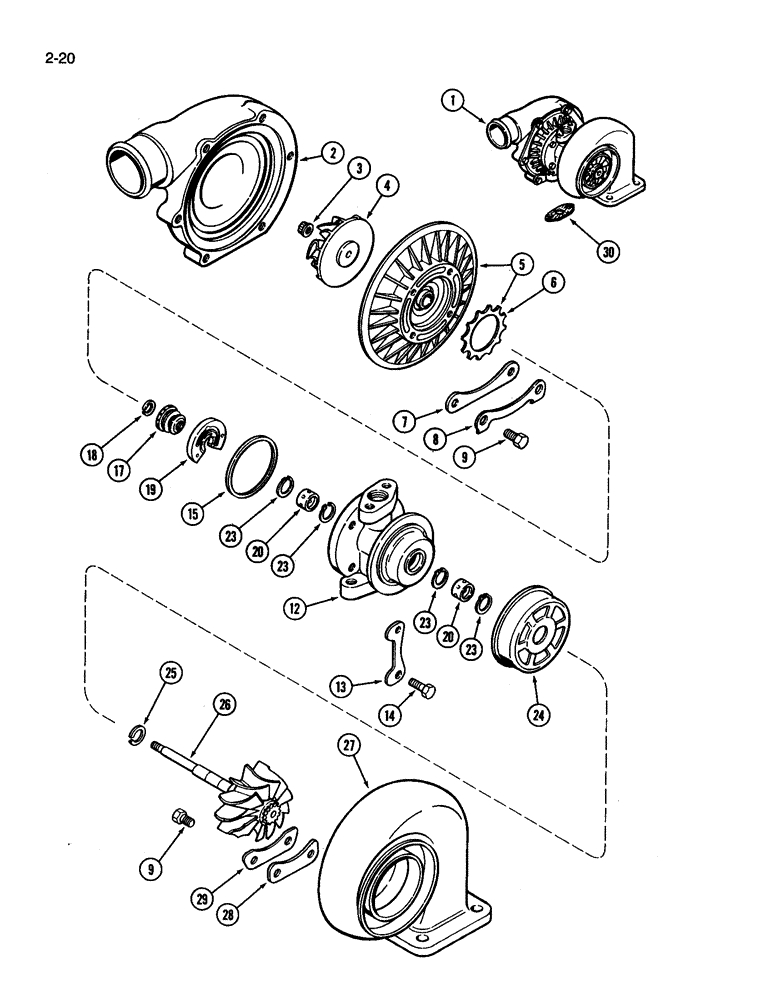

Запчасти Case IH 3394 (2-20) - TURBOCHARGER, 504BDT DIESEL ENGINE (02) - ENGINE

1

A157336

TURBOCHARGER

ASSEMBLY - engine (New), Includes: Ref. 2 - 29

1шт.

1

A48192

REMAN-TURBOCHARGER

Turbocharger Assembly, Engine, (Remanufactured), Includes: Ref. 2 - 29

1шт.

1

A48191

CORE-TURBOCHARGER

Return Part Number, use this part number to return turbocharger core for credit

1шт.

2

A45096

HOUSING

- compressor

1шт.

3

615741C2

NUT

- lock, compressor

1шт.

4

A45016

IMPELLER

- wheel, compressor

1шт.

5

630614C91

PLATE

- impeller back (Replaces A45095)

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - thrust

1шт.

7

A44838

CLAMP

- compressor housing

3шт.

8

A44839

PLATE

- lock, compressor housing clamp

3шт.

9

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

12шт.

12

A44825

HOUSING

- center

1шт.

13

A44820

PLATE

- lock, center housing to back plate

2шт.

14

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

4шт.

15

A44833

RING

- seal, back plate to center housing

1шт.

17

615745C2

COLLAR

- thrust, compressor (Replaces A156846)

1шт.

18

A44828

RING

- piston, compressor 1/2 inch OD

1шт.

19

A44832

THRUST BEARING,0.172"

BEARING - thrust plate

1шт.

20

A44826

BEARING

- journal, center (Standard)

2шт.

20

A44849

BUSHING

BEARING - journal, center 0.005 inch undersize

2шт.

20

A44850

BUSHING

BEARING - journal, center 0.010 inch undersize

2шт.

Ref #20B - ( .618" O.D.)

1шт.

23

A44827

RING

- snap, journal bearing

4шт.

24

A45091

GUARD

SHROUD - center housing side wheel

1шт.

25

A44829

RING

- piston, turbine housing 23/32 inch OD

1шт.

26

A48397

SHAFT

WHEEL - turbocharger shaft

1шт.

27

A44840

HOUSING

- turbocharger

1шт.

28

684245C1

CLAMP

- housing plate (Replaces A44823)

3шт.

29

615739C1

PLATE, LOCKING

PLATE - housing lock (Replaces A44824)

3шт.

30

A58892

GASKET,1.59mm Thk

- drain tube

1шт.
