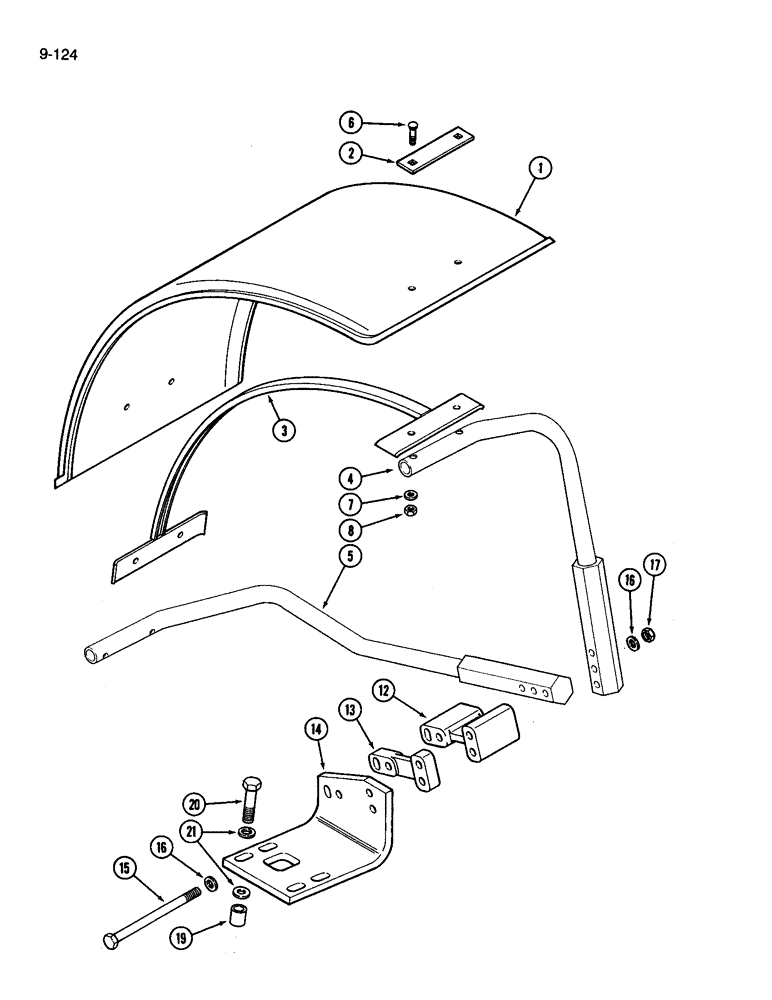

Запчасти Case IH 3394 (9-124) - FRONT FENDERS (09) - CHASSIS/ATTACHMENTS

A181135

FENDER ASSY.

FENDER ATTACHMENT - front (Machinery Item), Includes: Ref. 1 - 21

1шт.

1

A181006

FENDER

- front

2шт.

2

A181125

PLATE

- retaining, outer fender

4шт.

3

A181124

CHANNEL

SUPPORT - fender

2шт.

4

A185830

BRACE

- fender, top right (Replaces A181366)

1шт.

4

A185829

BRACE

- fender, top left (Replaces A181365)

1шт.

5

A185832

BRACE

- fender, rear right (Replaces A181368)

1шт.

5

A185831

BRACE

- fender, rear left (Replaces A181367)

1шт.

6

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 2", G5

8шт.

6

133-2

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/2", Gr 5

BOLT - round head square neck, 3/8 NC x 2-1/2 inch

8шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

8шт.

8

131-206

NUT,3/8"-16

NUT - heavy hex, self-locking, 3/8 inch NC

8шт.

12

A181128

SPACER

- fender, 100 mm

2шт.

13

A181129

SPACER

- fender, 25 mm

2шт.

14

A181127

PLATE

BRACKET - fender brace, right mounting

1шт.

14

A181126

PLATE

BRACKET - fender brace, left mounting

1шт.

15

413-8140

BOLT,Hex, 1/2" - 13 x 8-3/4", Gr 5

- hex, 1/2 NC x 8-3/4 inch

8шт.

16

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

16шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

19

A180416

SPACER

-, Serial Range: axle-bracket

8шт.

20

814-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8

8шт.

21

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

16шт.
