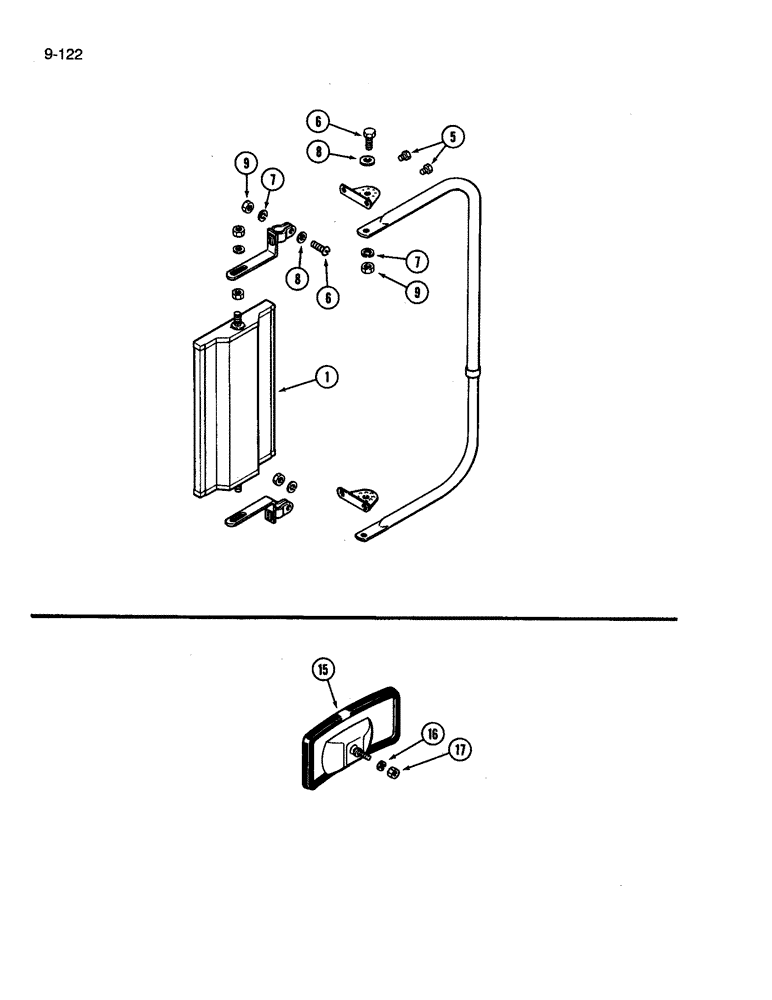

Запчасти Case IH 3394 (9-122) - CAB, MIRRORS, DUAL VISION / INSIDE REAR VIEW (09) - CHASSIS/ATTACHMENTS

A177935

MIRROR

ASSEMBLY - dual vision, black, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

MIRROR - dual vision

1шт.

5

281-1476

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

BOLT - hex, self tapping, 1/4 NC x 3/8 inch

4шт.

6

113-56

BOLT,Hex, 1/4" - 20 x 1-5/8", Gr 5

- hex, 1/4 NC x 1-5/8 inch

4шт.

7

192-83

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

8

195-81004

WASHER,0.31" ID x 0.75" OD x 0.07" Thk

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

15

A177462

MIRROR

- rear view, inside, Includes: Ref. 16 and 17

1шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

17

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.
