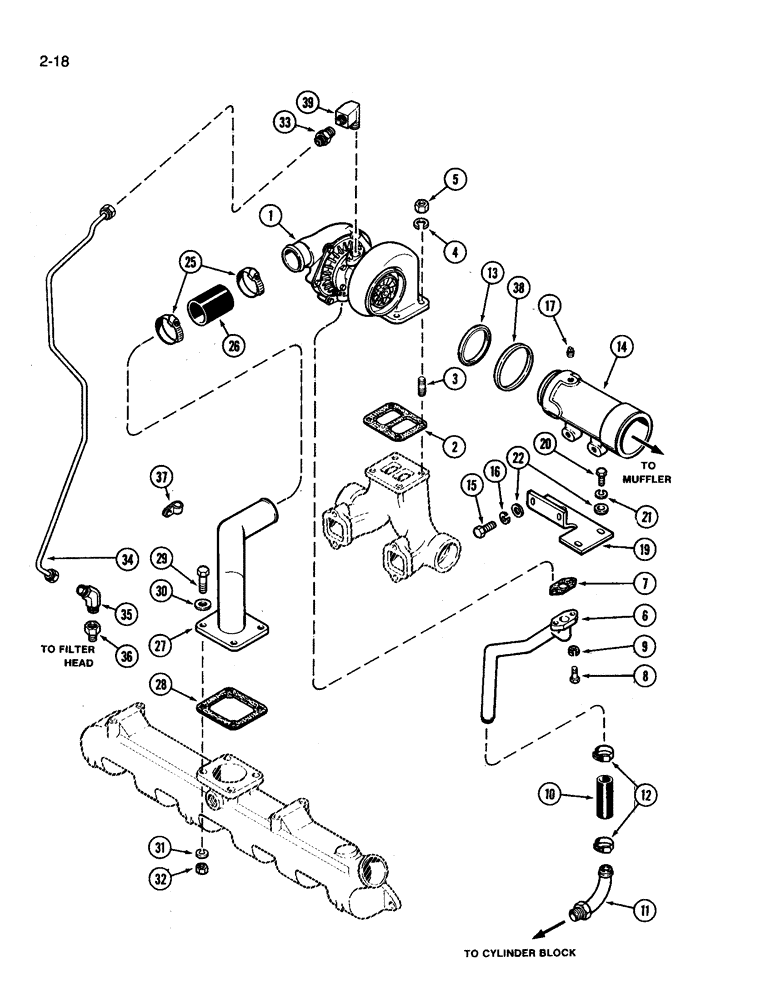

Запчасти Case IH 3394 (2-18) - TURBOCHARGER SYSTEM, 504BDT DIESEL ENGINE (02) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER - engine (See Figure 2-20)

1шт.

2

A58899

GASKET,0.45mm Thk

-, Serial Range: turbocharger-manifold

1шт.

3

G11204

STUD

-, Serial Range: turbocharger-manifold

4шт.

4

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

131-903

NUT,3/8"-16

NUT - hex, 3/8 inch NC

4шт.

6

A62518

TUBE

- oil drain

1шт.

7

A58892

GASKET,1.59mm Thk

- drain tube

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

9

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

A156842

HOSE,22.2 mm ID x 88.90 mm, SAE 30R1 TYPE 1 PER SAE J30

0.90" ID x 3.50", SAE 30R1 type 1 per SAE J30 - Drain Tube

1шт.

11

A58897

FITTING

- drain hose

1шт.

12

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

- adj. #16, 0.81/1.50 Type F Worm

2шт.

13

A138817

RING,2.64mm Thk

SEAL - turbocharger

1шт.

14

A166231

EXHAUST SYSTEM PIPE

- exhaust

1шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

16

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

221-841

PLUG

- hex socket, 1/4 inch PT

2шт.

19

A152391

BRACKET

- exhaust fitting

1шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

21

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

22

95-21044

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch

5шт.

25

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

2шт.

26

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

2.00" ID x 2.88"

1шт.

27

A150450

ELBOW

- intake

1шт.

28

1342762C1

MANIFOLD GASKET

- air intake elbow (Replaces A58910)

1шт.

29

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

30

95-21044

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch

4шт.

31

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

32

425-106

NUT,3/8"-16, Cl 5

4шт.

33

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

ADAPTER - compression, 3/8 tube OD x 1/4 inch PT

1шт.

34

A166064

TUBE

- oil supply

1шт.

35

222-95

ELBOW,45 Degree, 5/8"-24 x 1/4" NPT

- 45 degree, compression, 3/8 tube OD x 1/4 inch PT

1шт.

36

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

- pipe, 3/8 male x 1/4 inch female

1шт.

37

49845

CLAMP

- oil supply tube

1шт.

38

A152831

SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk

- turbocharger exhaust

1шт.

39

217-19

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- street, 90 degree, 1/4 inch PT x female PT

1шт.
