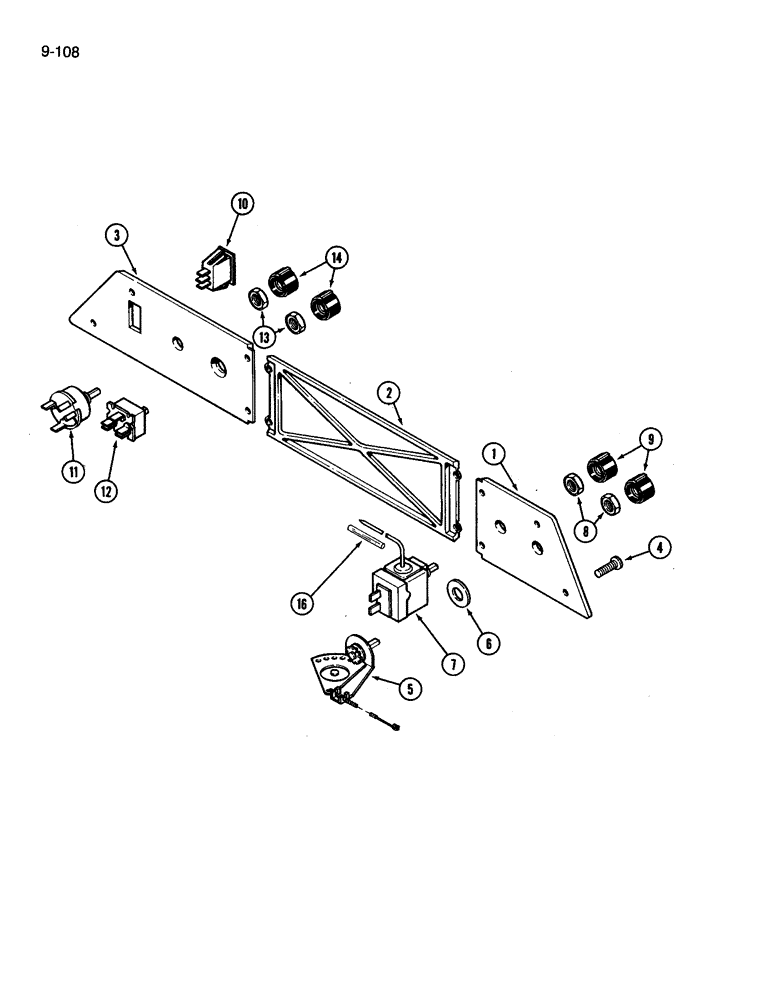

Запчасти Case IH 3394 (9-108) - CAB, CONTROLS AND PANEL (09) - CHASSIS/ATTACHMENTS

1

F66128

BEZEL

PANEL - control, front section

1шт.

2

F66129

BEZEL & GASKET

PANEL - control, center section

1шт.

3

F66139

BEZEL

PANEL - control, rear section

1шт.

4

265-16512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, oval Phillips, No. 10-16 x 3/4 inch

8шт.

5

F64666

CONTROL,1503.68mm L

- heater

1шт.

6

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

1шт.

7

L73646

SWITCH

- air conditioner

1шт.

8

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- retaining

2шт.

9

F66127

BUTTON

KNOB - control

2шт.

10

F64733

IGNITION SWITCH

SWITCH - dome light

1шт.

11

F43359

SWITCH

- wiper

1шт.

12

A42622

SWITCH

- blower

1шт.

13

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- retaining

2шт.

14

F66127

BUTTON

KNOB - control

2шт.

16

F63719

TUBE

- nylon, 1/8 ID x 12 inch (Order F44879)

1шт.
