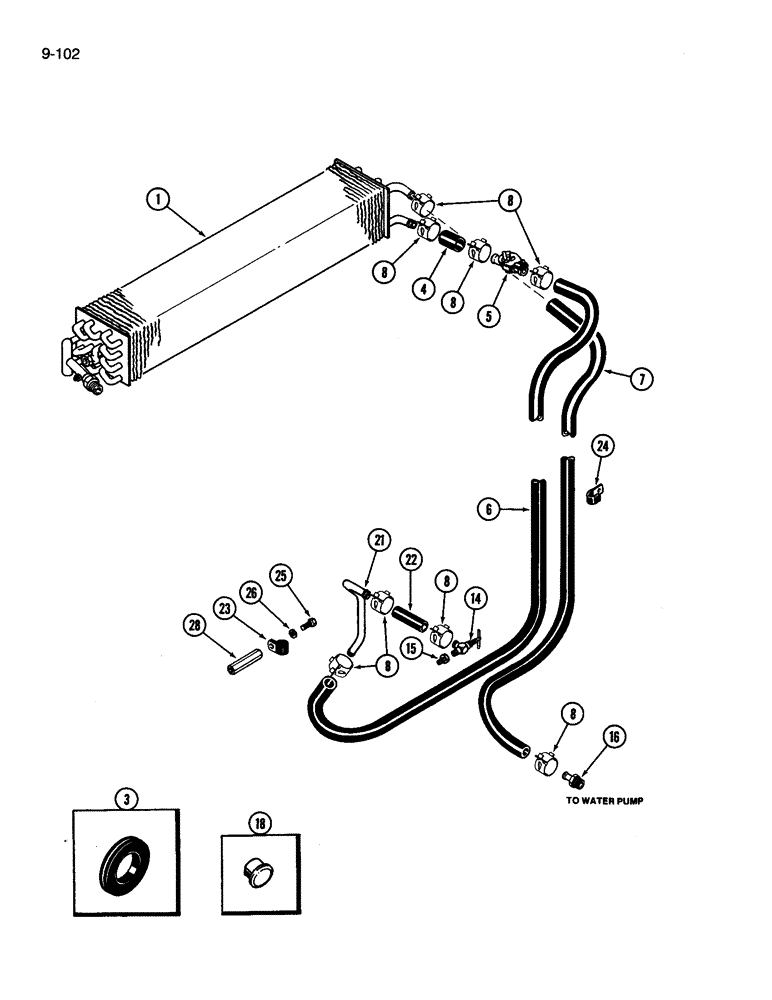

Запчасти Case IH 3394 (9-102) - CAB, HEATER (09) - CHASSIS/ATTACHMENTS

1

F66203

HEATER ASSY.

CORE - heater and air conditioning

1шт.

3

F64485

GROMMET

- hose

2шт.

4

NSS

NOT SOLD SEPARAT

HOSE - core to valve, 2 inch (Order 97252C1 and, Serial Range: cut-lenght)

1шт.

5

F66209

VALVE

- heater control

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE - valve outlet, black 134 inch (Order 97252C1 and, Serial Range: cut-lenght)

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE - core outlet, black with red 104 inch (Order 97252C1 and, Serial Range: cut-lenght)

1шт.

8

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, (Replaces 214-253) #24

8шт.

14

301803R1

SHUT-OFF VALVE

VALVE - shut off (Replaces A16764)

1шт.

15

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

- pipe, 1/2 male x 3/8 inch female

1шт.

16

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

ADAPTER - straight, 5/8 stem end x 1/2 inch PT

1шт.

18

353-496

PLUG

BUSHING - heater hose (Order F64485)

2шт.

21

A149953

TUBE

- heater hose

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - tube to manifold, 3-1/2 inch (Order 97252C1 and, Serial Range: cut-lenght)

1шт.

23

49885

CLAMP

- hose

1шт.

24

A160691

CLAMP

- hose

2шт.

25

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

26

492-11038

LOCK WASHER,3/8"

1шт.

28

A164486

NUT

- heater hose spacer

1шт.
