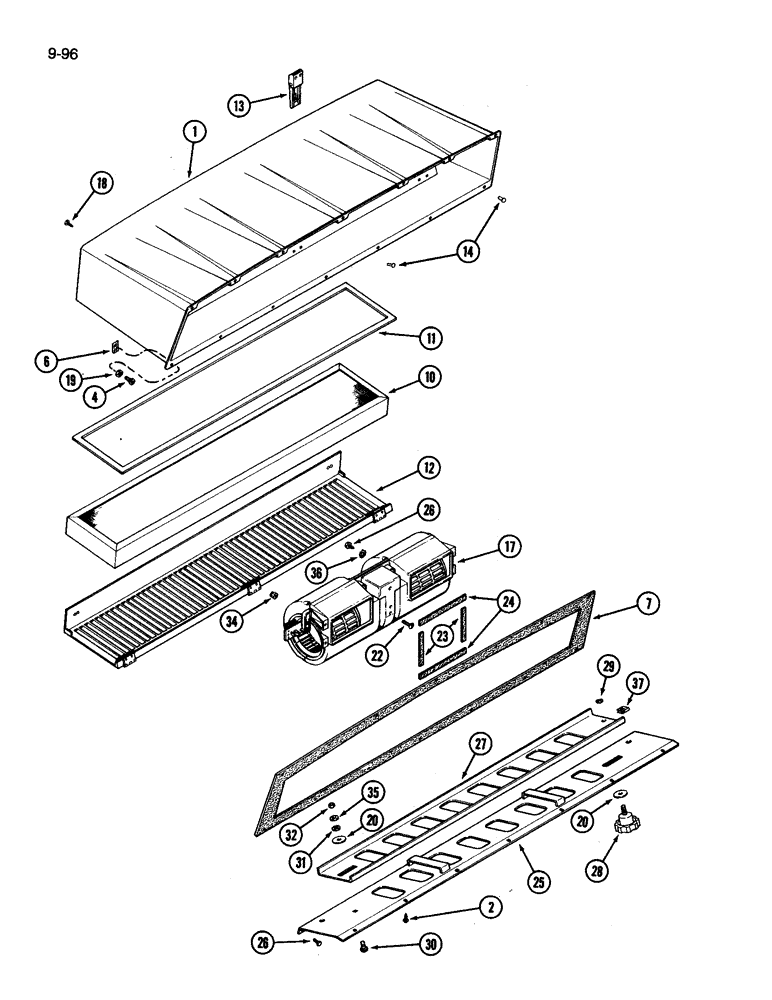

Запчасти Case IH 3394 (9-096) - CAB, AIR FILTER AND BLOWER (09) - CHASSIS/ATTACHMENTS

1

F97099

HOUSING

- filter and blower (Order F64721)

1шт.

2

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - tapping, round x-recess, No. 10-16 x 3/4 inch (Order 1 washer F64315 and 1 screw 265-16512)

2шт.

4

163-42

SCREW,Hex Wshr Hd, #10 - 24 x 1/2", Gr 5

- machine, hex washer head, No. 10 NC x 1/2 inch

7шт.

6

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

- J-type, No.10-24

7шт.

7

F64602

SEAL

SEAL -, Serial Range: housing-cab

1шт.

10

F64318

AIR FILTER

FILTER - cab air

1шт.

11

F63669

SEAL

- filter housing

1шт.

12

F98302

COVER

- filter

1шт.

13

F64066

LATCH

- filter cover

2шт.

14

151-543

RIVET,Pop, 3.17mm OD x 10.16mm L

- pop, 1/8 x 23/64 inch

10шт.

17

REF

INSTRUCTION

BLOWER - cab air (See Figure 9-98)

1шт.

18

280-16516

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

SCREW - slotted hex, N0. 10 x 3/4 inch

7шт.

19

195-404

SEALING WASHER

WASHER - flat, No. 10

7шт.

20

F64867

WASHER

- special, plastic

2шт.

22

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW - self-tapping, pan Phillips, No. 8-16 x 3/4 inch

1шт.

23

F64818

SEALING STRIP

STRIP - foam, adhesive-backed (Order F64119)

4шт.

24

F64817

SEALING STRIP

STRIP - foam, adhesive-backed (Order F64119)

4шт.

25

F98332

DOOR

PLATE - air recirculation

1шт.

26

280-1658

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No. 10-16 x 1/2 inch

10шт.

27

F64930

DOOR

- recirculation

1шт.

28

F64253

KNOB

- door

1шт.

29

T39518

SNAP RING,#25, Ext

Ring, Snap, #25, Ext

1шт.

30

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

1шт.

31

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

32

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

1шт.

34

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

4шт.

35

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

36

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

37

786618C1

NUT

- U-type, 5/16 inch NC

1шт.
