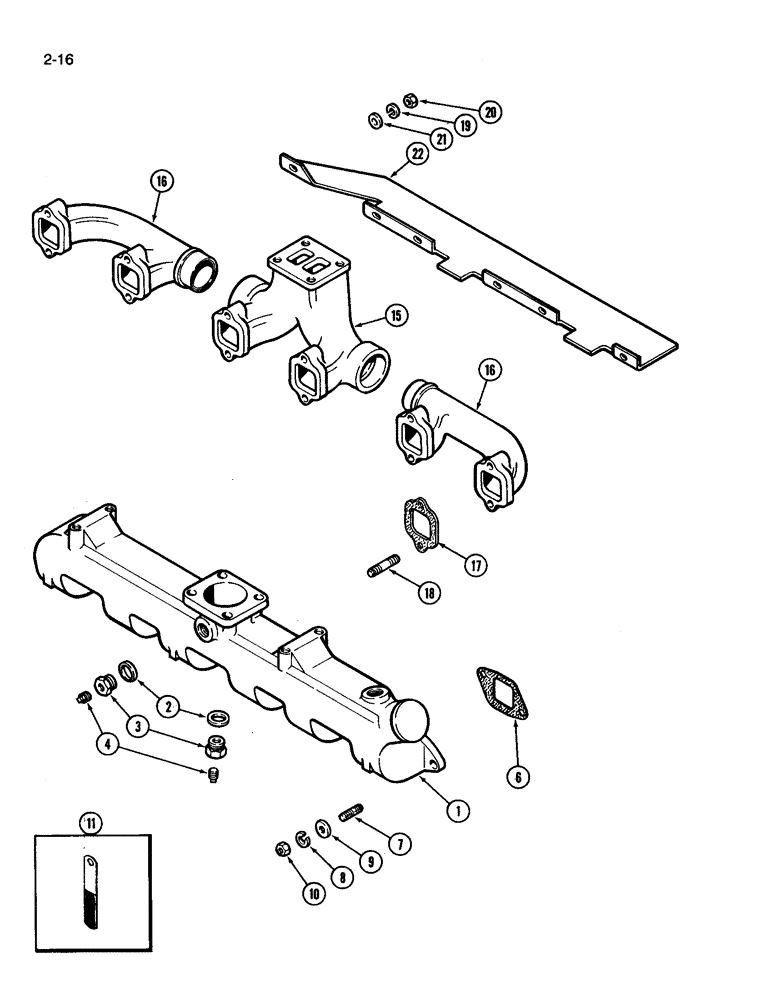

Запчасти Case IH 3394 (2-16) - INTAKE AND EXHAUST MANIFOLDS, 504BDT DIESEL ENGINE (02) - ENGINE

1

A154446

MANIFOLD

ASSEMBLY - intake, Includes: Ref. 2 - 4

1шт.

2

A20916

MANIFOLD GASKET

GASKET - plug

2шт.

3

L10283

PLUG

- heater hole

2шт.

4

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

2шт.

6

1342760C1

MANIFOLD GASKET

- intake manifold (Replaces A58662)

6шт.

7

A59077

STUD

-, Serial Range: manifold-head

12шт.

8

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

9

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

12шт.

10

25-166

NUT,3/8"-16, G5, Hvy

- hex, 3/8 inch NC

12шт.

11

A149624

CLIP

- air conditioning hose

3шт.

11

A22883

CLIP

- air conditioning hose

3шт.

15

A76322

MANIFOLD

- exhaust, center section

1шт.

16

A65917

MANIFOLD

- exhaust, end section

2шт.

17

1342786C1

MANIFOLD GASKET

- exhaust manifold (Replaces A58895)

6шт.

18

A140924

STUD

-, Serial Range: manifold-head

12шт.

19

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

20

131-903

NUT,3/8"-16

NUT - hex, 3/8 inch NC

12шт.

21

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

12шт.

22

A76351

GUARD

SHIELD - heat, manifold

1шт.
