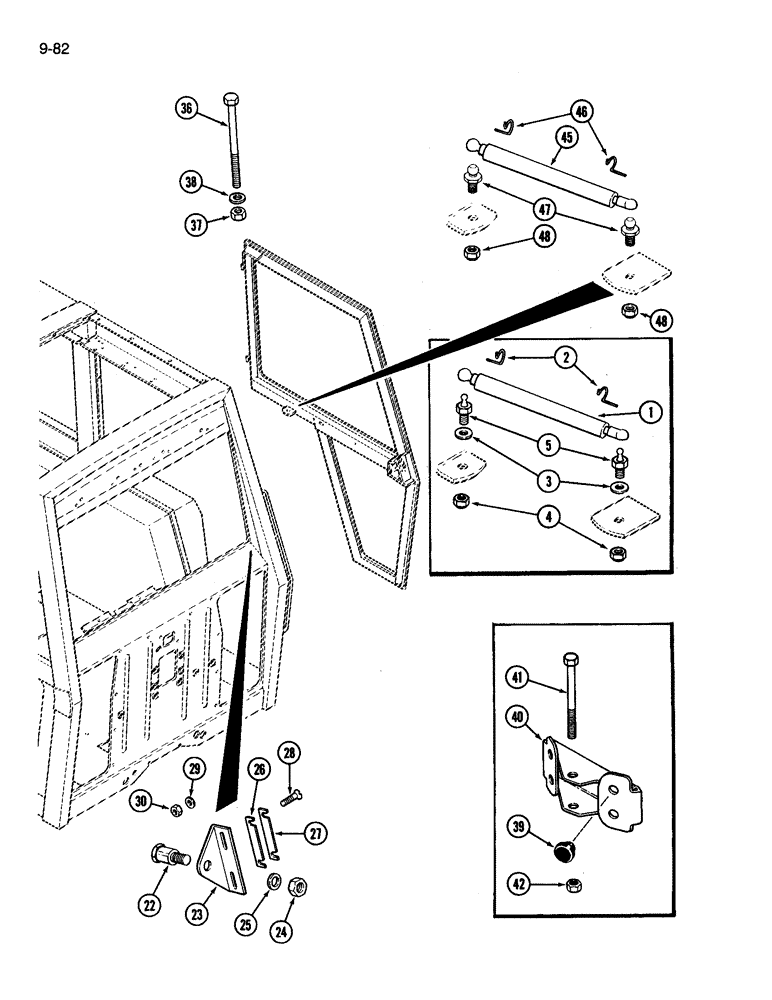

Запчасти Case IH 3394 (9-082) - CAB, DOOR RETAINING PARTS (09) - CHASSIS/ATTACHMENTS

1

A181297

SPRING

CYLINDER ASSEMBLY - door (Order 98153C1)

1шт.

2

F44883

CLIP,DIN 71805 - S10

- retainer

2шт.

3

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch

2шт.

4

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16 inch NC

2шт.

5

A180015

STUD

- ball

2шт.

22

F66210

STRIKER PLATE

STRIKER - door latch

1шт.

23

F64301

BRACKET

- striker mounting

1шт.

24

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

25

195-2018

WASHER,.469" x 3/4" x .065"

- flat, 15/32 x 3/4 x 1/16 inch

2шт.

26

F63785

SHIM

- striker bracket, 5/64 inch

2шт.

27

F63786

SHIM

- striker bracket, 3/64 inch

2шт.

28

443-52516

SCREW,Cross Flat Hd, 1/4"-20 x 1", G5

- flat head, 1/4 NC x 1 inch

2шт.

29

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

30

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

36

413-676

BOLT,Hex, 3/8" - 16 x 4-3/4", Gr 5

- hex, 3/8 NC x 4-3/4 inch

2шт.

37

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex, jam, self-locking, 3/8 inch NC

2шт.

38

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- thrust

2шт.

A176168

STOP

KIT - door stop (Order components), Includes: Ref. 39 - 42

1шт.

39

L60224

BUMPER

- door stop

8шт.

40

A176027

DOOR

STOP - door

2шт.

41

413-676

BOLT,Hex, 3/8" - 16 x 4-3/4", Gr 5

- hex, 3/8 NC x 4-3/4 inch

2шт.

42

131-1143

LOCK NUT,3/8" - 16, Gr A

NUT, LOCK, 3/8"-16, GA

2шт.

98153C1

KIT

- cylinder assembly, Includes: Ref. 45 - 47

1шт.

45

A185714

GAS STRUT

CYLINDER - door

1шт.

46

3233348R1

CLIP

- retaining

2шт.

47

3234063R1

BALL STUD,M10 x 1.5

STUD - ball, 13 mm diameter

2шт.
