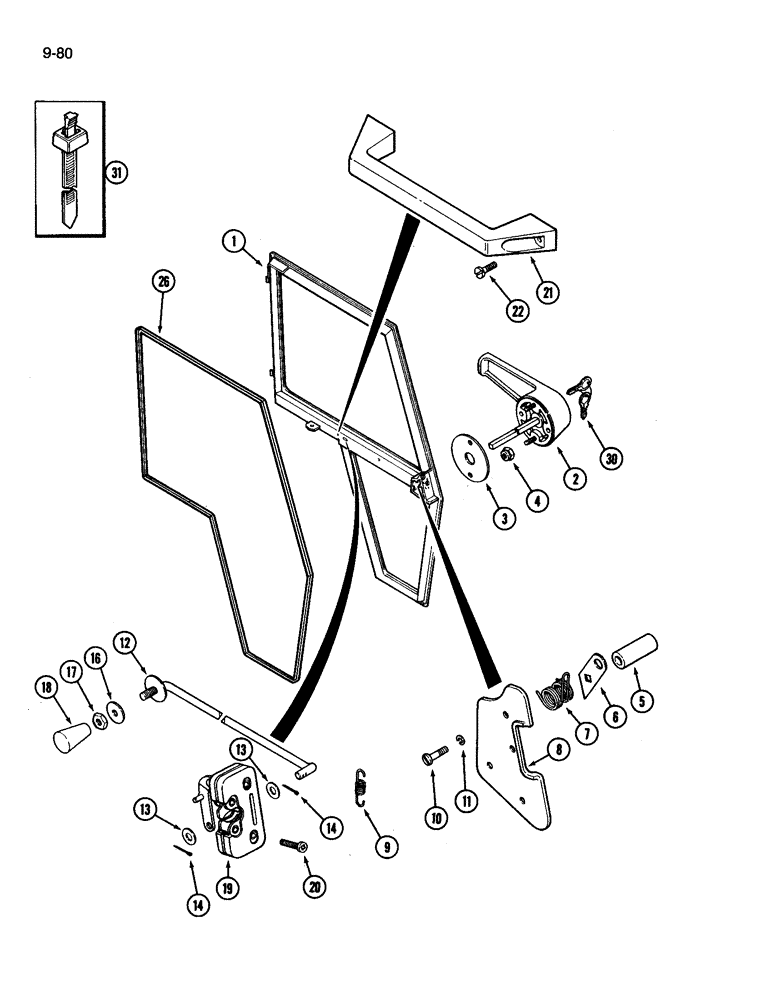

Запчасти Case IH 3394 (9-080) - CAB, DOOR AND LATCH (09) - CHASSIS/ATTACHMENTS

F97270

DOOR ASSEMBLY - complete (Includes glass)(Order F97065), Includes: Ref. 1 - 26 and moulding

1шт.

Order glass from Figure 9-88.

1шт.

1

NSS

NOT SOLD SEPARAT

DOOR - cab (Order F97065)

1шт.

2

F66158

HANDLE - outer (Order F66157)

1шт.

Ref #2, part number F66158 order F66157. THIS IS A MULTI LENGTH HANDLE USED FOR SEVERAL APPLICATIONS. IT CAN BE CHANGED BY CUTTING THE SQUARE SHAFT. THE FOLLOWING LENGTHS APPLY: PN F45080--3.75 IN. (AS SUPPLIED)

1шт.

PN F66158 AND F66159---2.75 IN. PN F45307--1.20".

1шт.

3

F64342

GASKET,1.6mm Thk

- door handle

1шт.

4

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

5

F64358

SPACER

- shaft

1шт.

6

F64371

ARM

- door latch

1шт.

7

F64338

SPRING

- handle, door latch

1шт.

8

F66086

COVER ASSY

COVER - door latch

1шт.

9

F45162

SPRING

- extension

1шт.

10

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- machine, pan head Phillips, 1/4 NC x 1/2 inch

4шт.

11

493-11028

WASHER - internal-external tooth lock, 1/4 inch

4шт.

12

F98226

ROD

- pull, door latch

1шт.

13

F64384

WASHER

- nylon

2шт.

14

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

16

F64340

WASHER

- shoulder

1шт.

17

131-1280

JAM NUT,Jam, 1/4"-20

NUT - hex, jam, self-locking, 1/4 inch NC

1шт.

18

F64341

KNOB

- latch rod

1шт.

19

F66155

LATCH

- rotary, door

1шт.

20

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

- special, x-recess, 1/4 NC x 1 inch

4шт.

21

F64890

HANDLE

- door, inner (Order F64547)

1шт.

22

182-582

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- machine pan Phillips head, 1/4 NC x 3/4 inch

2шт.

26

F64880

STRIP

SEAL - door (Order R53628)

1шт.

NSS

NOT SOLD SEPARAT

MOULDING - glass and door, upper (Order A42677 and, Serial Range: cut-lenght)

1шт.

NSS

NOT SOLD SEPARAT

MOULDING - glass and door, lower (Order A42677 and, Serial Range: cut-lenght)

1шт.

30

A77313

SET OF 2 KEYS

KEY - door lock (Set of 2)(Also used as ignition key)

1шт.

31

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - retaining

1шт.
